Product Details
Place of Origin: Germany
Model Number: 8400
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $300 - $2000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|

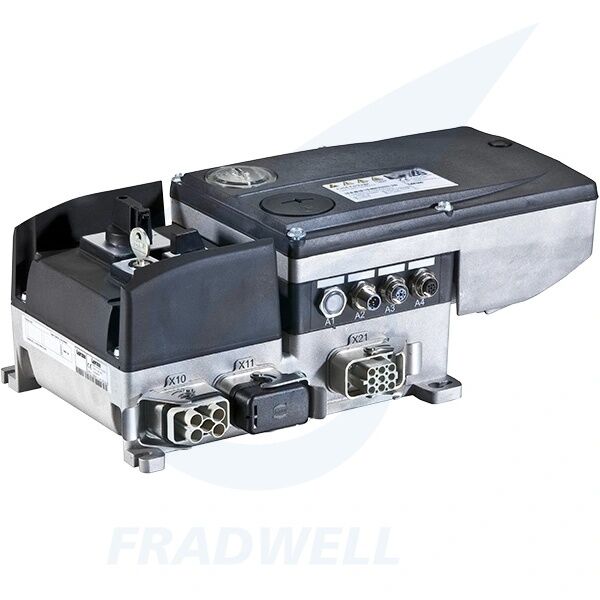

Frequency Converter Inverter
|
Output Power:
|
0.37 - 7.5 KW
|
Level Of Protection:
|
IP65 IP54
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Factory Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Output Power:
|
0.37 - 7.5 KW
|
|
Level Of Protection:
|
IP65 IP54
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Factory Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Specification Category | Specific Specifications | Details |
|---|---|---|
| Power Range | Rated Power | 0.37 - 7.5 kW (equivalent to 0.50 - 10 hp) |
| Input Voltage | Voltage Rating | 3-Phase AC 400 V, 3-Phase AC 480 V |
| Digital Interfaces | I/O Configuration | 1 digital input; optional 2/5/8 digital outputs |
| Analog Interfaces | I/O Configuration | 1 analog input; optional 0/1/2 analog outputs |
| Relay Interface | Contact Type | 1 normally open/normally closed (NO/NC) relay |
| Protection Class | Inverter Protection | IP65 |
| Protection Class | With Switch Unit | IP54 |
| Communication Functions | Supported Protocols | AS-Interface, CANopen, EtherCAT, EtherNet/IP, POWERLINK, PROFIBUS, PROFINET |
| Additional Functions | Core Auxiliary Functions | Motor temperature monitoring; "VFC Eco" energy-saving function; Safe Torque Off (STO) function |
| Structure & Installation | Terminal Configuration | Includes terminals for start/stop control; digital outputs support free programming (configurable as 5/1 channels) |
| Installation Adaptability | Mounting Options | Supports on-motor mounting and wall mounting; two wall-mount versions available |
| Compliance Standards | Eco-Design Compliance | Meets EN IEC 61800-9-2 eco-design directive requirements |
| Current Ratings | Rated Current | 1.3 - 16.5 A (matching 0.37 - 7.5 kW power range) |
| Model No. | Rated Power | Input Voltage | Core Configuration | Key Features | Remarks |
|---|---|---|---|---|---|
| E84AXPSCE0374SB0 | 0.37kW | 3-Phase 400V | Output current: 1.3A; V/F control; IP65; Modbus RTU; 1 digital input | On-motor/wall mounting (without maintenance switch); "VFC Eco" mode | CE certified; Suitable for small water pumps |
| E84AXPSCE0554SX0 | 0.55kW | 3-Phase 400V | Output current: 1.8A; Sensorless vector control; IP65; Profinet | Plug-and-drive technology; 1 analog input; compact design | Compatible with Siemens TIA Portal |
| E84AXPSCE0754VB0 | 0.75kW | 3-Phase 480V | Output current: 2.3A; IP65; Ethernet/IP; 2 digital outputs; STO function | Wall mounting (with maintenance switch); IP54 switch unit | UL/CSA certified; Fits auto workshop travel drives |
| E84AXPSCE1524VX0 | 1.5kW | 3-Phase 400/480V | Output current: 4.2A; IP65; CANopen + Modbus RTU; motor temperature monitoring | Dual-voltage compatible; on-motor mounting; 1 NO/NC relay | Used in textile factory fans |
| E84AXPHCE2234SB0 | 2.2kW | 3-Phase 400V | Output current: 5.8A; Sensorless vector control; IP65; AS-Interface | Heavy-duty plug-in connectors; 5 digital outputs; natural cooling | CE + EN IEC 61800-9-2 compliant |
| E84AXPHCE3714SX0 | 3.7kW | 3-Phase 480V | Output current: 9.5A; IP65; EtherCAT; STO function; 2 analog inputs | Wall mounting (with maintenance switch); high torque boost | UL certified; Suitable for chemical plant pumps |
| E84AXPHCE5524VB0 | 5.5kW | 3-Phase 400V | Output current: 13.2A; IP65; POWERLINK; SD card parameter backup | Plug-and-drive commissioning; 8 digital outputs; motor temperature monitoring | Compatible with Beckhoff systems |
| E84AXPTCE7534VX0 | 7.5kW | 3-Phase 400/480V | Output current: 16.5A; IP65; PROFINET + EtherNet/IP; advanced diagnostics | Dual-voltage compatible; on-motor/wall mounting; 2 analog outputs | CE/UL dual certified; Used in automotive workshop travel drives |
| E84AXPSCE1124SB0 | 1.1kW | 3-Phase 400V | Output current: 3.1A; V/F control; IP65; Modbus RTU; compact design | On-motor mounting (without maintenance switch); low power consumption | Cost-effective; Suitable for water pumps |
| E84AXPHCE4024SX0 | 4.0kW | 3-Phase 480V | Output current: 10.8A; Sensorless vector control; IP65; PROFIBUS | Wall mounting (with maintenance switch); 5 digital outputs | UL/CSA certified; Used in warehouse conveyors |
