Product Details
Place of Origin: Germany

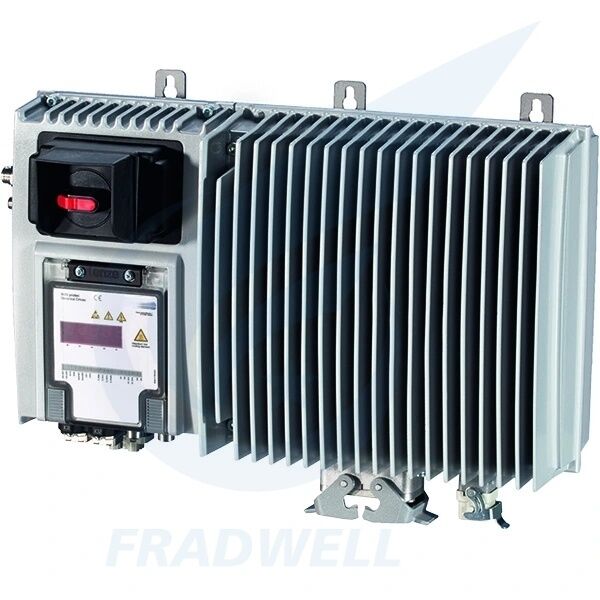

Model Number: 8400 protec
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $350 - $3000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|
Frequency Converter Inverter
|
Output Power:
|
0.37 KW - 15 KW
|
Level Of Protection:
|
IP65
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Factory Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Output Power:
|
0.37 KW - 15 KW
|
|
Level Of Protection:
|
IP65
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Factory Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Specification Category | Detailed Specifications |
|---|---|
| Basic Power | Rated power range: 0.37 kW - 15 kW (3-phase models only) Rated output current: 1.2 A - 38 A (varies by power rating) Overload capacity: 150% rated current for 60 seconds; 200% rated current for 3 seconds |
| Electrical Parameters | Input voltage: 3-phase 380 V - 480 V (±10%) Input frequency: 45 - 65 Hz Output voltage: 0 - Input voltage (continuously adjustable) Output frequency: 0 - 599 Hz Voltage/frequency ratio: Linear/square law (configurable) |
| Control Functions | Control modes: V/F control, sensorless vector control Core functions: "VFC Eco" energy-saving mode, slip compensation, DC braking, flying restart, automatic torque boost, PID regulation Start/stop methods: Ramp start/stop (0.1 - 3600 seconds adjustable), free stop, inching control |
| Standard I/O Configuration | Digital inputs: 4 channels (configurable NPN/PNP, 24 V DC) Digital outputs: 2 channels (relay output, maximum switching current 2 A/250 V AC) Analog inputs: 1 channel (0 - 10 V / 4 - 20 mA selectable, 12-bit resolution) Analog outputs: 1 channel (0 - 10 V / 4 - 20 mA selectable, 12-bit resolution) |
| Communication & Interfaces | Standard communication: Modbus RTU (RS485) Optional communication modules: Profinet, EtherCAT, Ethernet/IP, CANopen Diagnostic interface: USB port (for parameter debugging & firmware update) Plug-in technology: Tool-free plug-in connectors (power, signal, communication) |
| Safety Functions | Standard protection: Overcurrent, overload, overvoltage, undervoltage, overheating, phase loss, motor stall, ground fault protection Protection against dust/water: IP65 (suitable for wall-mounted outdoor/harsh indoor environments) |
| Protection & Installation | Protection rating: IP65 (dust-tight, protected against water jets from any direction) Mounting method: Wall-mounted (distributed installation), tool-free plug-in assembly Ambient temperature: -10℃ - 50℃ (no derating); 50℃ - 60℃ (linear derating 2.5% per 1℃ increase) Relative humidity: 5% - 95% (non-condensing) Altitude: ≤1000 m (no derating); >1000 m (linear derating 1% per 100 m up to 4000 m) |
| Mechanical Specifications | Dimensions (W × H × D): - 0.37 - 2.2 kW: 140 mm × 280 mm × 120 mm - 3 - 7.5 kW: 180 mm × 350 mm × 140 mm - 11 - 15 kW: 220 mm × 420 mm × 160 mm Weight: 3.2 kg - 12.5 kg (varies by power rating) Display: LED digital display (parameter setting & status monitoring), 3 LED status indicators (power, run, fault) |
| Certifications & Standards | Safety certifications: CE, UL, CSA, ATEX (optional explosion-proof) Eco-design: Complies with EN IEC 61800-9-2 Electromagnetic Compatibility (EMC): Complies with EN 61800-3, EN 55011 (Category C2) Ingress Protection: IEC 60529 (IP65) |
| Other Features | Cooling method: Natural cooling (all power ratings) Plug-in technology: Quick-connect design for power, signal, and communication cables (reduces installation time by 50% vs. traditional wiring) Maintenance: Tool-free access to terminals and modules; replaceable fans (≥7.5 kW models) MTBF: ≥ 65,000 hours (at 25℃ ambient temperature) |
| Model No. | Rated Power | Power Supply | Core Parameters | Key Features | Target Markets & Industries | Remarks |
|---|---|---|---|---|---|---|
| E84BXPSCE0374SB0 | 0.37kW | 3-Phase 380-480V | Output current: 1.2A; V/F control; IP65; Modbus RTU | Basic plug-in design; 4 digital inputs; LED status indicators | Southeast Asia (small intralogistics) | In stock; Suitable for mini scissor lifts in rural warehouses |
| E84BXPSCE0754SX0 | 0.75kW | 3-Phase 380-480V | Output current: 2.1A; Sensorless vector control; IP65; Profinet | Quick-connect power/signal cables; 1 analog input; "VFC Eco" mode | Europe (automotive workshops) | CE certified; Ideal for small monorail conveyors |
| E84BXPSCE1524VB0 | 1.5kW | 3-Phase 380-480V | Output current: 3.8A; IP65; EtherCAT-compatible (optional); USB diagnostics | Tool-free plug-in; 2 relay outputs; LED digital display | North America (intralogistics) | UL/CSA certified; Fits scissor lifts in U.S. e-commerce warehouses |
| E84BXPSCE2234VX0 | 2.2kW | 3-Phase 380-480V | Output current: 5.5A; PID regulation; IP65; Profinet + Modbus RTU | Plug-and-drive commissioning; DC braking; dust/water-resistant | Global (automotive monorail conveyors) | Compatible with automotive assembly lines |
| E84BXPHCE3714SB0 | 3.7kW | 3-Phase 380-480V | Output current: 9.0A; Sensorless vector control; IP65; integrated braking | Heavy-duty plug-in connectors; 150% overload (60s); natural cooling | Middle East (outdoor intralogistics) | Dust/water-resistant; Suitable for desert-area rotary tables |
| E84BXPHCE5524SX0 | 5.5kW | 3-Phase 380-480V | Output current: 13.2A; IP65; Ethernet/IP (optional); SD card backup | Plug-in communication module; LED status + digital display; PID regulation | Europe (automotive/intralogistics) | EN IEC 61800-9-2 compliant; Used in German auto monorail systems |
| E84BXPHCE7514VB0 | 7.5kW | 3-Phase 380-480V | Output current: 18.5A; IP65; Forced air cooling; CANopen-compatible | Replaceable fan; Tool-free terminal access; 2 analog inputs | North America (heavy-duty intralogistics) | UL certified; Fits large scissor lifts in Canadian warehouses |
| E84BXPTCE1124SX0 | 11kW | 3-Phase 380-480V | Output current: 26.8A; IP65; Profinet + EtherCAT; advanced diagnostics | High-power plug-in design; 200% overload (3s); remote monitoring via bus | Europe (smart factories) | Compatible with Siemens TIA Portal; Used in automated rotary tables |
| E84BXPTCE1534VX0 | 15kW | 3-Phase 380-480V | Output current: 38.0A; IP65; Ethernet/IP + Modbus RTU; heavy-duty connectors | Plug-in safety terminals; Natural cooling; "VFC Eco" energy-saving | Global (large-scale intralogistics) | Suitable for high-load monorail conveyors (automotive plants worldwide) |
