Product Details
Brand Name: Lenze
Model Number: 8400
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD250-2000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|

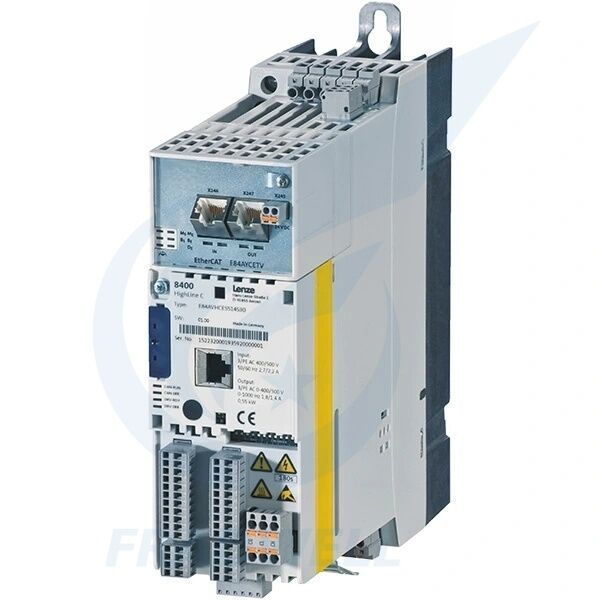

Frequency Converter Inverter
|
Output Power:
|
0.25-45 KW
|
Level Of Protection:
|
IP20
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Factory Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Output Power:
|
0.25-45 KW
|
|
Level Of Protection:
|
IP20
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Factory Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Specification Category | Detailed Specifications |
|---|---|
| Basic Power | Rated power range: 0.25 kW - 45 kW (3-phase models); 0.25 kW - 2.2 kW (single-phase models) Rated output current: 0.8 A - 90 A (varies by power rating) |
| Electrical Parameters | Input voltage: Single-phase 230 V (±10%), 3-phase 380 V - 480 V (±10%) Input frequency: 45 - 65 Hz Output voltage: 0 - Input voltage (continuously adjustable) Output frequency: 0 - 599 Hz Overload capacity: 150% rated current for 60 seconds; 200% rated current for 3 seconds |
| Control Functions | Control modes: V/F control (linear/square law), sensorless vector control Core functions: "VFC Eco" energy-saving mode, slip compensation, DC braking, flying restart, automatic torque boost, PID regulation Start/stop methods: Ramp start/stop (0.1 - 3600 seconds adjustable), free stop, inching control |
| Standard I/O Configuration | Digital inputs: 4 channels (configurable NPN/PNP, 24 V DC) Digital outputs: 2 channels (relay output, maximum switching current 2 A/250 V AC) Analog inputs: 2 channels (0 - 10 V / 4 - 20 mA selectable, 12-bit resolution) Analog outputs: 1 channel (0 - 10 V / 4 - 20 mA selectable, 12-bit resolution) |
| Communication & Interfaces | Standard communication: Modbus RTU (RS485), Profinet (integrated) Optional communication modules: EtherCAT, Ethernet/IP, CANopen Diagnostic interface: USB port (for parameter debugging & firmware update) Speed feedback: Supports incremental encoder (optional, for closed-loop control) |
| Safety Functions | Standard protection: Overcurrent, overload, overvoltage, undervoltage, overheating, phase loss, motor stall, ground fault protection Safety compliance: Complies with EN IEC 61800-5-1 (functional safety for adjustable speed drives) |
| Protection & Installation | Protection rating: IP20 (control cabinet installation only) Mounting method: DIN rail mounting, zero-clearance side-by-side mounting Ambient temperature: 0 - 40℃ (no derating); 40 - 60℃ (linear derating 2.5% per 1℃ increase) Relative humidity: 5% - 95% (non-condensing) |
| Mechanical Specifications | Dimensions (W × H × D): • 0.25 - 2.2 kW (single-phase): 60 mm × 175 mm × 130 mm • 0.75 - 11 kW (3-phase): 120 mm × 225 mm × 130 mm • 15 - 30 kW (3-phase): 180 mm × 300 mm × 150 mm • 37 - 45 kW (3-phase): 240 mm × 400 mm × 180 mm Weight: 1.1 kg - 16 kg (varies by power rating) |
| Certifications & Standards | Safety certifications: CE, UL, CSA, ATEX (optional explosion-proof) Eco-design: Complies with EN IEC 61800-9-2 Electromagnetic Compatibility (EMC): Complies with EN 61800-3, EN 55011 (Category C2) |
| Other Features | Cooling method: Natural cooling (≤11 kW), forced air cooling (≥15 kW) Integrated braking management: Supports external braking resistor (optional, for high-frequency stop scenarios) MTBF: ≥ 50,000 hours (at 25℃ ambient temperature) |
| Model No. | Rated Power | Power Supply | Core Parameters | Application Scenarios | Remarks |
|---|---|---|---|---|---|
| E84AVSCE1522SX0 | 1.5kW | Single-Phase 200-240V | Rated output current: 7.0A; Supports V/F & flux vector control; IP20 protection | Small warehousing systems, mini extruders, small storage transmission equipment | Lead time: 3-6 weeks; Suitable for single-phase industrial scenarios in parts of Europe |
| E84AVSCE3712SX0 | 0.37kW | Single-Phase 230V | Suitable for basic drive tasks; Supports standard speed control | Micro conveyors, small fans, laboratory small filling equipment | In stock; Compatible with single-phase low-voltage industrial scenarios in North America/Europe |
| E84AVSCE7512SX0 | 0.75kW | Single-Phase 230V | Basic V/F control; Integrated simple braking management | Small water pumps, small packaging auxiliary equipment | Customizable; Suitable for small workshops in Southeast Asia |
| E84AVSCE2234VX0 | 2.2kW | 3-Phase 380-480V | Supports sensorless drive; Compatible with global mainstream industrial buses | Medium conveyors, semi-automatic palletizers | Suitable for medium-sized intralogistics equipment in Europe/North America |
| E84AVSCE3714SB0 | 3.7kW | 3-Phase 400-480V | Integrated "VFC Eco" energy-saving function; IP20 protection | Small plastic extruders, semi-automatic filling systems in the packaging industry | Ample stock; Compatible with three-phase packaging factories worldwide |
| E84AVSCE3024SXS | 3.0kW | 3-Phase 400-480V | Supports speed regulation for simple motion control; Profinet-compatible | Medium palletizers, continuous filling systems | Suitable for intralogistics in European smart factories |
| E84AVHCE1524SB0 | 1.5kW | 3-Phase 400-480V | Rated output current matched for 1.5kW motors; Integrated braking management | Medium material handling equipment, packaging line auxiliary drives | In stock; Suitable for the North American packaging industry |
| E84AVHCE2224SX0 | 2.2kW | 3-Phase 400-480V | Supports flying restart; Suitable for frequent start/stop scenarios | High-frequency start/stop conveyors, fully automatic palletizers | Suitable for high-automation intralogistics lines in Europe |
| E84AVHCE3734VX0 | 37kW | 3-Phase 400-480V | Heavy-duty design; Overload capacity: 150% rated current for 60s | Large extruders, heavy-duty material handling equipment | Custom-order required; Suitable for large European plastic processing plants |
| E84AVHCE5514SB0 | 5.5kW | 3-Phase 400-480V | Supports motor temperature monitoring; Integrated relay output | Medium plastic extruders, large filling systems | In stock; Compatible with the global plastic processing industry |
| E84AVTCE1524VB0 | 1.5kW | 3-Phase 400-480V | EtherCAT-compatible; Supports multi-device linkage control | Smart warehousing horizontal handling equipment, automatic filling lines | Suitable for networked control in European smart factories |
| E84AVTCE1524SX0 | 1.5kW | 3-Phase 400-480V | Supports closed-loop speed control; Suitable for high-precision drive requirements | High-precision filling systems, small precision extruders | In stock; Suitable for the North American precision packaging industry |
| E84AVTCE7514SB0 | 7.5kW | 3-Phase 400-480V | Integrated overload/phase loss protection; Suitable for heavy-load conditions | Large palletizers, heavy extruders | Suitable for global heavy-industry transmission scenarios |
| E84AVTCE3024SXS | 30kW | 3-Phase 400-500V | High-power heavy-duty design; Ethernet/IP-compatible | Large intralogistics handling lines, large plastic extruder units | Suitable for large industrial plants in North America |
| E84AVHCC1534SX0 | 15kW | 3-Phase 400-480V | Supports speed feedback-based precision control; Integrated advanced braking management | Large continuous extruders, automated warehouse handling equipment | In stock; Suitable for large intelligent manufacturing factories in Europe |
| E84AVSCE1134SX0 | 1.1kW | 3-Phase 400-480V | Compact design; DIN rail mountable | Micro filling equipment, small laboratory extruders | Suitable for small overseas precision manufacturing workshops |
