Product Details
Place of Origin: Germany
Model Number: i550
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $420 - $2800
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|
Frequency Converter Inverter
|
Output Power:
|
0.37-75 KW
|
Level Of Protection:
|
IP31/IP55/66
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Factory Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Output Power:
|
0.37-75 KW
|
|
Level Of Protection:
|
IP31/IP55/66
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Factory Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|

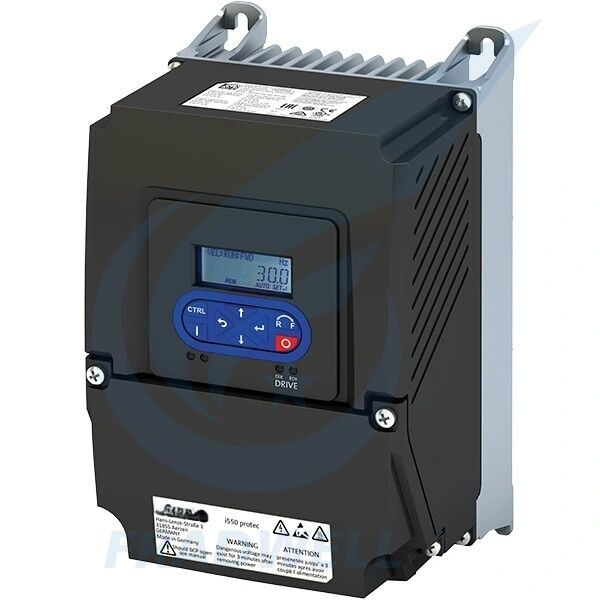

The award-winning i550 protec inverter delivers proven cabinet inverter technology in a decentralized design with higher protection rating. Ideal for space-constrained installations or mounting near motors of various machine modules, this versatile device features an extension box for maintenance switches and control elements. Complies with eco-design directive EN IEC 61800-9-2.
Conveyor drives, travel drives, winding drives, lifting drives, extruders, packaging machinery, pumps, fans, and more.
| Specification Category | Detailed Specifications |
|---|---|
| Basic Power | Rated power range: 0.37 kW - 75 kW (3-phase models only) Rated output current: 1.7 A - 150 A (varies by power rating) |
| Electrical Parameters | Input voltage: 3-phase 380 V - 480 V (±10%) Input frequency: 45 - 65 Hz Output voltage: 0 - Input voltage (continuously adjustable) Output frequency: 0 - 599 Hz Overload capacity: 150% for 60s, 200% for 3s |
| Control Functions | Control modes: V/F control (linear/square law), sensorless vector control Core functions: Slip compensation, DC braking, flying restart, energy-saving mode, automatic torque boost, PID regulation Start/stop methods: Ramp start/stop (0.1-3600s adjustable), free stop, inching |
| Standard I/O Configuration | Digital inputs: 4 channels (configurable NPN/PNP, 24V DC) Digital outputs: 2 channels (relay output, max 2A/250V AC) Analog inputs: 2 channels (0-10V / 4-20mA, 12-bit resolution) Analog outputs: 1 channel (0-10V / 4-20mA, 12-bit resolution) Communication I/O: IO-Link v1.1 (master/slave mode) |
| Communication & Interfaces | Standard communication: Modbus RTU (RS485), IO-Link v1.1 Optional communication modules: EtherCAT, Profinet, Ethernet/IP, CANopen Diagnostic interface: Micro USB (for parameter debugging & firmware update) Wireless support: Optional WLAN module (for remote commissioning) |
| Safety Functions | Standard protection: Overcurrent, overload, overvoltage, undervoltage, overheating, phase loss, motor stall, ground fault protection Optional safety function: STO (Safe Torque Off) - SIL 3 (EN IEC 62061/61508), PL e (EN ISO 13849-1) |
| Protection & Installation | Protection rating: IP66 / NEMA 4X (dust-tight, water jet-proof) Mounting method: Wall-mounted, decentralized installation (near motor) Ambient temperature: -10℃ - 50℃ (no derating), 50℃-60℃ (linear derating 2.5%/℃) Relative humidity: 5% - 95% (non-condensing) Ingress protection: Resistant to dust, water jets, and mild chemical corrosion |
| Mechanical Specifications | Dimensions (W×H×D): • 0.37-2.2kW: 145mm×280mm×120mm • 3-7.5kW: 180mm×350mm×140mm • 11-30kW: 240mm×450mm×160mm • 37-75kW: 320mm×580mm×180mm Weight: 3.2kg - 35kg (varies by power rating) Protection coating: Anti-corrosion coating (for harsh industrial environments) |
| Certifications & Standards | Safety certifications: CE, UL, CSA, ATEX (optional explosion-proof) Eco-design: Complies with EN IEC 61800-9-2 EMC: Complies with EN 61800-3, EN 55011 (Category C2) Ingress protection: EN 60529 (IP66), NEMA 4X |
| Other Features | Cooling method: Natural cooling (≤11kW), forced air cooling (≥15kW) Extension capability: Optional extension box (supports maintenance switch, emergency stop button, and local control elements) MTBF: ≥ 60,000 hours (at 25℃ ambient temperature) |
| Model No. | Rated Power | Core Configuration | Key Features & Application Scenarios |
|---|---|---|---|
| i55PE137F10V11000s | 0.37kW (0.5hp) | IP66 protection, standard I/O, Modbus RTU, natural cooling | Compact size; Suitable for small conveyors, micro-pumps in dusty/wet workshops |
| i55PE155F10V11000s | 0.75kW (1hp) | IP66 protection, standard I/O, Modbus RTU, slip compensation | Ideal for small fans, packaging machine auxiliary drives; Resists water jets and dust |
| i55PE175F1AV11000s | 1.1kW (1.5hp) | IP66 protection, IO-Link v1.1, STO (SIL 3), standard I/O | Supports smart sensor integration; Suitable for safety-sensitive small equipment |
| i55PE215F10V11000s | 1.5kW (2hp) | IP66 protection, Modbus TCP/IP, PID regulation, energy-saving mode | Remote monitoring via network; Suitable for water pumps, ventilation fans |
| i55PE222F1AV11000s | 2.2kW (3hp) | IP66 protection, Profinet, STO (SIL 3), DC braking | Integrates with factory automation systems; Ideal for small extruders, assembly line conveyors |
| i55PE237F10V11000s | 3.7kW (5hp) | IP66 protection, standard I/O, flying restart, forced air cooling | Withstands high-temperature environments; Suitable for medium pumps, mixer drives |
| i55PE255F1AV11000s | 5.5kW (7.5hp) | IP66 protection, EtherCAT, STO (SIL 3), IO-Link v1.1 | Real-time communication for production lines; Suitable for winding drives, precision conveyors |
| i55PE311F10V11000s | 11kW (15hp) | IP66 protection, Modbus RTU, overload protection (150%/60s), anti-corrosion coating | Resists moisture and chemical corrosion; Suitable for wastewater treatment pumps, marine equipment |
| i55PE315F1AV11000s | 15kW (20hp) | IP66 protection, Ethernet/IP, STO (SIL 3), free stop function | Compatible with US industrial grids; Ideal for large conveyor systems, travel drives |
| i55PE330F10V11000s | 30kW (40hp) | IP66 protection, standard I/O, large output current (61A), forced air cooling | Suitable for extruders, large fans in steel plants or chemical factories |
| i55PE337F1AV11000s | 37kW (50hp) | IP66 protection, CANopen, STO (SIL 3), energy-saving mode | Adaptable to modular production lines; Suitable for heavy lifting drives, large-scale mixers |
| i55PE375F10V11000s | 75kW (100hp) | IP66 protection, Modbus TCP/IP, high overload capacity (200%/3s), anti-vibration design | Withstands harsh operating conditions; Suitable for large pumps, ventilation systems in power plants |
| i55PE175F10V11006s | 1.1kW (1.5hp) | IP66 protection, WLAN module, standard I/O, wireless commissioning | Supports wireless parameter adjustment; Ideal for equipment in hard-to-reach areas |
| i55PE255F10V11006s | 5.5kW (7.5hp) | IP66 protection, WLAN module, EtherCAT, IO-Link v1.1 | Enables remote diagnostics; Suitable for Industry 4.0 production lines, collaborative robots |
Core Scenarios: German e-commerce sorting centers, US port container yards, Southeast Asian e-commerce warehouses
Adaptation Advantages: IP66 protection eliminates control cabinets; vibration-resistant design suits high-frequency start/stop; multi-protocol compatibility with global warehouse management systems
Core Scenarios: Italian dairy plants, US craft breweries, Thai fruit canning factories
Adaptation Advantages: IP66/NEMA 4X protection meets food industry cleaning standards; fanless design reduces dust buildup; wide voltage tolerance adapts to unstable power grids
Core Scenarios: German PVC pipe factories, US chemical plants, Middle Eastern plastic film factories
Adaptation Advantages: High overload capacity handles startup loads; anti-corrosion coating suits harsh chemical environments; precise speed control meets material processing accuracy
Core Scenarios: Indian sewage treatment plants, US municipal water systems, African water purification stations
Adaptation Advantages: IP66 protection adapts to humid/dusty environments; wide voltage range compatible with global power grids; direct sensor connection enables unmanned automatic control
Core Scenarios: Dubai high-rise buildings, Nordic shopping malls, North American factory workshops
Adaptation Advantages: IP66 protection adapts to harsh equipment room environments; energy-saving mode meets global efficiency standards; wireless commissioning reduces high-altitude operation risks
Core Scenarios: Vietnamese shrimp farms, Brazilian coffee plantations, Kenyan greenhouses
Adaptation Advantages: IP66 protection withstands harsh outdoor environments; wide voltage/vibration-resistant design adapts to unstable rural power; simple operation suits non-professional operators
