Product Details
Place of Origin: Germany
Model Number: i550 cabinet
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $340 - $4000
Delivery Time: 3-5Workday
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
|
Product Name:
|

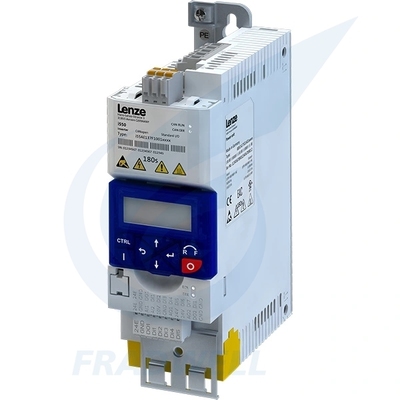

Frequency Converter Inverter
|
Output Power:
|
0.25 -132 KW
|
Level Of Protection:
|
IP
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Factory Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Output Power:
|
0.25 -132 KW
|
|
Level Of Protection:
|
IP
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Factory Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Specification Category | Detailed Specifications |
|---|---|
| Basic Power | Rated power range: 0.25 kW - 132 kW (3-phase models); 0.25 kW - 4 kW (single-phase models) |
| Electrical Parameters | Input voltage: Single-phase 230 V (±10%), 3-phase 400 V - 480 V (±10%) Input frequency: 45 - 65 Hz Output voltage: 0 - Input voltage (continuously adjustable) Output frequency: 0 - 599 Hz Overload capacity: 150% rated current for 60 seconds (standard load); 200% rated current for 3 seconds (peak load) |
| Control Functions | Control modes: V/F control (linear/square law), sensorless vector control, closed-loop vector control (optional) Core functions: Slip compensation, DC braking, flying restart, energy-saving mode, automatic torque boost, PID regulation Start/stop methods: Ramp start/stop (0.1 - 3600 seconds adjustable), free stop, inching control |
| Standard I/O Configuration | Digital inputs: 6 channels (configurable as NPN/PNP type, supports high-speed pulse input) Digital outputs: 2 channels (relay output, maximum switching current 2 A) Analog inputs: 2 channels (0 - 10 V / 4 - 20 mA selectable, 12-bit resolution) Analog outputs: 2 channels (0 - 10 V / 4 - 20 mA selectable, 12-bit resolution) Pulse I/O: Supports 100 kHz high-speed pulse interface (compatible with encoders) |
| Communication & Interfaces | Standard communication: EtherCAT, Profinet, Ethernet/IP, Modbus RTU (RS485 interface) Optional communication modules: CANopen, DeviceNet Other interfaces: USB commissioning interface, WLAN module interface (supports wireless commissioning/diagnostics), encoder feedback interface |
| Safety Functions | Optional safety function: Safe Torque Off (STO), compliant with SIL 3 (EN IEC 62061/EN IEC 61508) and Performance Level e (EN ISO 13849-1) Standard protection: Overcurrent, overload, overvoltage, undervoltage, overheating, phase loss, motor stall, ground fault protection |
| Protection & Installation | Protection rating: IP20 (for control cabinet installation only) Mounting methods: DIN rail mounting, zero-clearance side-by-side mounting Ambient temperature: 0 - 40℃ (no derating) during operation, linear derating from 40 - 60℃ (2.5% derating per 1℃ increase) Relative humidity: 5% - 95% (non-condensing) Protective coating: Optional anti-corrosion coating (for harsh industrial environments) |
| Mechanical Specifications | Dimensions (W × H × D): • 0.25 - 4 kW models: 60 mm × 175 mm × 130 mm • 5.5 - 11 kW models: 120 mm × 225 mm × 130 mm • 15 - 30 kW models: 180 mm × 300 mm × 150 mm • 37 - 132 kW models: 240 mm × 400 mm × 180 mm Weight: 1.2 - 18 kg (varies by power rating) |
| Certifications & Standards | Safety certifications: CE, UL, CSA, ATEX (explosion-proof optional) Eco-design: Complies with EN IEC 61800-9-2 standard Electromagnetic Compatibility (EMC): Complies with EN 61800-3, EN 55011 standards (Category C2 environments) |
| Other Features | Cooling method: Natural cooling (≤11 kW), forced air cooling (≥15 kW) Component flexibility: Can be split into power unit, control unit, and safety unit for independent use Service life: Mean Time Between Failures (MTBF) ≥ 60,000 hours (at 25℃ ambient temperature) |
| Model No. | Rated Power | Input Voltage & Phase | Core Configuration | Compatible Markets | Remarks |
|---|---|---|---|---|---|
| I550-C0.75/230-1 | 0.75kW | Single-Phase 230V | Cabinet-mounted, basic I/O configuration | Europe, Southeast Asia | Suitable for small industrial equipment converted from household use |
| I550-C1.5/400-3 | 1.5kW (2hp) | 3-Phase 400/480V | Integrated RFI filter, standard I/O, Modbus TCP | USA, Europe, Southeast Asia | Weight: 1.57kg |
| I55AE137F1AV1100ms | 0.37kW (0.5hp) | 3-Phase 480V | Ethernet/IP communication, standard I/O, STO safety function | North America | IP20 protection; Suitable for small drive equipment requiring Safe Torque Off |
| I55AE155F10V1100ws | 0.56kW (0.75hp) | 3-Phase 480V | Modbus TCP/IP communication, standard I/O | Global | Ideal for small fans/pumps needing remote monitoring |
| I55AE155F1AV1100ws | 0.56kW (0.75hp) | 3-Phase 480V | Modbus TCP/IP communication, standard I/O, STO safety function | Europe/North America | Precise drive control for small packaging machinery |
| I55AE175F1AV11016s | 0.75kW (1.0hp) | 3-Phase 480V | IO-Link communication, standard I/O, STO safety function | Global Industry 4.0 | Supports rapid equipment replacement and standardized commissioning |
| I55AE255F10V11000s | 5.5kW (7.5hp) | 3-Phase 400/480V | Standard I/O, integrated RFI filter, output frequency 0 - 599Hz | Global industrial | Suitable for medium conveyors, packaging machinery |
| I55BE315F10V11000s | 15kW (20hp) | 3-Phase 480V | Integrated EMC filter, supports VFC eco, sensorless vector control; STO optional | Europe/North America | DC braking, flying restart; Suitable for lifting drives, extruders |
| I55AE318F10V11000s | 18.5kW (25hp) | 3-Phase 480V | Standard I/O, IP20 protection | Europe/North America | Suitable for medium winding drives, travel drives |
| I55AE330F-10V10000s | 30kW (40hp) | 3-Phase 415V | Rated current 61A, standard drive functions | India, Southeast Asia | Centralized drive control for medium production lines |
| I55AE337F10V11000s | 37kW (50hp) | 3-Phase 480V | Standard I/O configuration, IP20 protection | North America | Suitable for high-power fans, large conveyors |
| I55AE375F10V1100ks | 75kW (100hp) | 3-Phase 480V | EtherCAT communication, standard I/O | Global high-end | Large conveyors, heavy winding equipment in automotive manufacturing |
| I55AE375F10V1100ws | 75kW (100hp) | 3-Phase 480V | Modbus TCP/IP communication, standard I/O | Global | High-power general machinery (large pump stations, industrial fans) |
| I55AE222F-10V10000s | 2.2kW (3hp) | 3-Phase 415V | Rated current 5.6A, basic drive functions | India, Southeast Asia | Suitable for small extruders, small packaging machinery |
