Product Details
Place of Origin: Germany
Model Number: i510
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD140-3000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|

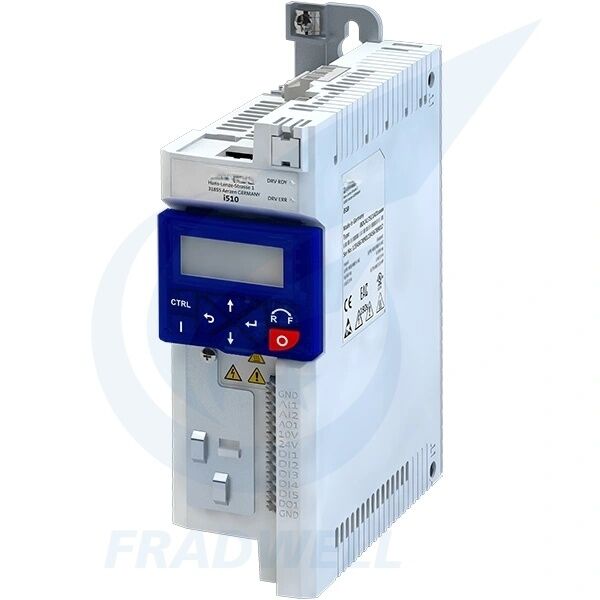

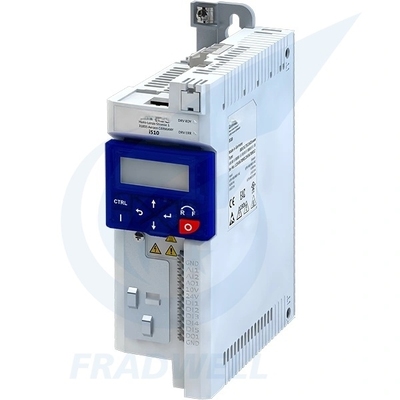

Frequency Converter Inverter
|
Output Power:
|
0.25-15kW
|
Level Of Protection:
|
IP20
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Factory Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Output Power:
|
0.25-15kW
|
|
Level Of Protection:
|
IP20
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Factory Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Specification Category | Detailed Specifications |
|---|---|
| Basic Power | Rated power range: 0.25 kW - 15 kW (3-phase models); 0.25 kW - 4 kW (single-phase models) |
| Electrical Parameters | Input voltage: Single-phase 230 V (±10%), 3-phase 400 V (±10%) Input frequency: 45 - 65 Hz Output voltage: 0 - Input voltage (continuously adjustable) Output frequency: 0 - 599 Hz Overload capacity: 150% rated current for 60 seconds (standard load) |
| Control Functions | Control modes: V/F control (linear/square law), sensorless vector control Core functions: Slip compensation, DC braking, flying restart, energy-saving mode, automatic torque boost Start/stop methods: Ramp start/stop (ramp time adjustable from 0.1 - 3600 seconds), free stop |
| Standard I/O Configuration | Digital inputs: 4 channels (configurable as NPN/PNP type) Digital output: 1 channel (relay output, maximum switching current 2 A) Analog inputs: 2 channels (0 - 10 V / 4 - 20 mA selectable, 12-bit resolution) Analog output: 1 channel (0 - 10 V / 4 - 20 mA selectable, 12-bit resolution) |
| Communication & Interfaces | Standard communication: Modbus RTU (RS485 interface) Optional communication modules: Profinet, EtherNet/IP, CANopen Other interfaces: USB commissioning interface, WLAN module interface (supports wireless commissioning/diagnostics) |
| Protection & Installation | Protection rating: IP20 (for control cabinet installation only) Mounting methods: DIN rail mounting, zero-clearance side-by-side mounting Ambient temperature: 0 - 40℃ (no derating) during operation, linear derating from 40 - 60℃ (2.5% derating per 1℃ increase) Relative humidity: 5% - 95% (non-condensing) |
| Mechanical Specifications | Dimensions (W × H × D): - 0.25 - 4 kW models: 60 mm × 175 mm × 130 mm - 5.5 - 11 kW models: 120 mm × 225 mm × 130 mm Weight: 0.8 - 2.2 kg (varies by power rating) |
| Certifications & Standards | Safety certifications: CE, UL, CSA Eco-design: Complies with EN IEC 61800-9-2 standard Electromagnetic Compatibility (EMC): Complies with EN 61800-3, EN 55011 standards (Category C2 environments) |
| Other Features | Cooling method: Natural cooling (no fan required) Protection functions: Overcurrent, overload, overvoltage, undervoltage, overheating, phase loss, motor stall protection Service life: Mean Time Between Failures (MTBF) ≥ 50,000 hours (at 25℃ ambient temperature) |
| Model No. | Product Designation | Rated Power | Input Voltage | Core Configuration | Application Notes |
|---|---|---|---|---|---|
| i51ae125b10v10000s | i510-C 0.25/230-1 | 0.25kW (0.33hp) | Single-Phase 230VAC | No built-in communication; Output current 1.7A; IP20 protection; Integrated EMC filter | Compatible with European single-phase grids; Ideal for small fans, micro-pumps |
| i51ae125b10v10001s | i510-C 0.25/230-1 | 0.25kW (0.33hp) | Single-Phase 230VAC | Supports CANopen/Modbus RTU; Output current 1.7A; IP20 protection; Integrated EMC filter | Meets communication networking needs of small European equipment |
| i51ae137b10v10000s | i510-C 0.37/230-1 | 0.37kW (0.5hp) | Single-Phase 230VAC | No built-in communication; Output current 2.4A; IP20 protection; Integrated EMC filter | Suitable for European small workshop equipment (small mixers, mini conveyors) |
| i51ae137b10v10001s | i510-C 0.37/230-1 | 0.37kW (0.5hp) | Single-Phase 230VAC | Supports CANopen/Modbus RTU; Output current 2.4A; IP20 protection; Integrated EMC filter | Ideal for small European automated production lines |
| i51ae215f10v11000s | i510-C 1.5/400-3 | 1.5kW (2hp) | 3-Phase 400-480VAC | Supports CANopen/Modbus RTU; Load-adaptive output current; V/F & sensorless vector control; Integrated EMC filter | Compatible with European/North American 3-phase grids; Suitable for mid-sized conveyors and packaging machinery |
| i51ae222f10v10000s | i510-C 2.2/400-3 | 2.2kW (3hp) | 3-Phase 400-480VAC | No built-in communication; Output current 5.6/4.8A; Overload capacity: 200% for 3s, 150% for 60s | Adaptable to European universal 3-phase industrial grids; Used for mid-sized pumps and standard conveyor drives |
| i51ae222f10v10001s | i510-C 2.2/400-3 | 2.2kW (3hp) | 3-Phase 400-480VAC | Supports CANopen/Modbus RTU; Output current 5.6/4.8A; IP20 protection; Integrated EMC filter | Meets equipment networking needs in European/North American industrial scenarios |
| i51be240f10v11000s | i510-C 4/400-3 | 4kW (5hp) | 3-Phase 400-480VAC | No built-in communication; Output current 9.5/8.2A; Coated circuit board; Suitable for control cabinet installation | Complies with North American 480VAC 3-phase grid standards; Ideal for large fans and mid-sized conveyors |
| i51ae255f10v10000s | i510-C 5.5/400-3 | 5.5kW (7.5hp) | 3-Phase 400-480VAC | No built-in communication; Output current 13/11A; Supports DC braking & PID controller; Integrated EMC filter | Adaptable to European/North American heavy industrial scenarios (large mixers, high-power pumps) |
| i51ae255f10v10001s | i510-C 5.5/400-3 | 5.5kW (7.5hp) | 3-Phase 400-480VAC | Supports CANopen/Modbus RTU; Output current 13/11A; Switching frequency 2-16kHz adjustable; Energy-saving mode | Meets cluster control needs of automated production lines in European automotive parts and chemical industries |
| i51bp175d00001000s | i510 Series Protec | 1.0hp (~0.75kW) | Single-Phase 200-240VAC | Equipped with i5MADK0000000S operation panel; Output current 4.2A; IP20 protection | Specifically designed for North American single-phase industrial grids; Suitable for independent control of small processing equipment |
| Accessory Model No. | Accessory Name | Function | Application Notes |
|---|---|---|---|
| EWL 0085/S | USB 2.0 Micro Cable (3m) | Connects inverter to PC for parameter commissioning and program upload | Compatible with globally universal USB devices; Enables quick on-site commissioning overseas |
| EWL 0086/S | USB 2.0 Micro Cable (5m) | Long-distance commissioning connection for deep control cabinet installations | Suitable for remote maintenance and commissioning of equipment in large overseas factories |
| i5madk0000000s | i500 Series Operation Panel | 16-bit LCD display for local parameter setting | Multi-language support for operators in different overseas regions |
| i5madr0000000s | i500 Panel Mounting Bracket (No Cable) | Independent mounting and fixation for the operation panel | Fits standard overseas control cabinet mounting holes; Compatible with DIN rail installation standards |
| i5madr0000002s | i500 Panel Mounting Bracket (With 5m Cable) | Long-distance separate panel installation | Suitable for remote operation station layout in large overseas equipment |
| i5madu0000000s | i501 USB Module | Wireless USB 2.0 interface expansion | Compatible with overseas industrial computers and commissioning terminals; Enhances interface compatibility |
| i5mbdw0000000s | i500 WLAN Module | Enables wireless commissioning and diagnosis | Ideal for overseas cleanrooms, high-risk areas, and other scenarios where wired connections are inconvenient |
