Product Details
Place of Origin: Japan

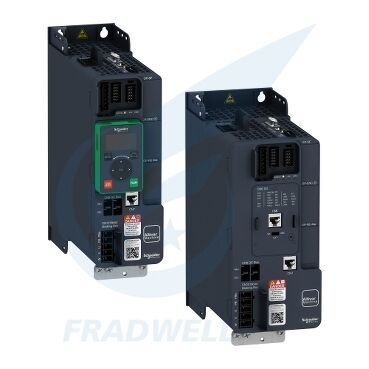

Model Number: ATV340
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $100 -$1500
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|
Frequency Converter Inverter
|
Output Power:
|
0.75–75kW
|
Level Of Protection:
|
IP20/21
|
Warranty:
|
Original Factory Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Output Power:
|
0.75–75kW
|
|
Level Of Protection:
|
IP20/21
|
|
Warranty:
|
Original Factory Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Category | Specific Parameters | Details |
|---|---|---|
| Basic Specifications | Power Range | 0.75-75kW (1-100 hp) |
| Basic Specifications | Voltage Range | 380V-480V |
| Basic Specifications | Operating Temperature | -15...50 °C (no derating); 50...60 °C (with derating) |
| Basic Specifications | Protection Class | IP20/21, UL Type 1 |
| Motor-related | Motor Types | Synchronous motor, asynchronous motor, PMSM, SynRM |
| Motor-related | Motor Control Loops | Open-loop and closed-loop (torque and speed) |
| Motor-related | Control Methods | ACVC, Sensorless vector control, Standard V/F, 5-point V/F |
| Safety Functions | Key Safety Features | STO, SLS, SS1, SMS, SBC, GDL |
| Model Number | Rated Power | Rated Current | Ethernet | Core Features |
|---|---|---|---|---|
| ATV340U07N4 | 0.75kW | 2.2A | No | Three-phase 380-480V, IP20, heavy-duty specification |
| ATV340U15N4 | 1.5kW | 4A | No | Three-phase 380-480V, IP20, heavy-duty design |
| ATV340U22N4 | 2.2kW | 5.6A | No | Three-phase 380-480V, IP20, basic speed regulation |
| ATV340U30N4 | 3kW | 7.2A | No | Three-phase 380-480V, IP20, heavy-duty adaptation |
| ATV340U55N4 | 5.5kW | 12.7A | No | Three-phase 380-480V, IP20, compliant with IEC standards |
| ATV340U75N4 | 7.5kW | 16.5A | No | Three-phase 380-480V, IP20, supports basic vector control |
| ATV340D11N4 | 11kW | 24A | No | Three-phase 380-480V, IP20, continuous operation capability |
| ATV340D18N4 | 18.5kW | 46A | No | Three-phase 380-480V, IP20, supports closed-loop control |
| ATV340D22N4 | 22kW | 46A | No | Three-phase 380-480V, IP20, optional Profinet communication |
| ATV340D30N4 | 30kW | 74.5A | No | Three-phase 380-480V, IP20, heavy-duty adaptation |
| ATV340D37N4E | 37kW | - | Yes | Three-phase 380-480V, UL Type 1, integrated Ethernet/IP |
| ATV340D18N4E | 18.5kW | 46A | Yes | Three-phase 380-480V, IP20, Ethernet-enabled, RoHS compliant |
| ATV340D22N4E | 22kW | 62A | Yes | Three-phase 380-480V, IP20, multi-protocol communication |
| ATV340D30N4E | 30kW | 74.5A | Yes | Three-phase 380-480V, IP20, integrated Ethernet |
| ATV340D75N4E | 75kW | - | Yes | Three-phase 380-480V, UL Type 1, heavy-duty specification |
