Product Details
Place of Origin: Japan
Model Number: ATV320
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $250 - $3000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|
Frequency Converter Inverter
|
Output Power:
|
0.18-22kW
|
Level Of Protection:
|
IP21 IP65/66
|
Warranty:
|
Original Factory Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Output Power:
|
0.18-22kW
|
|
Level Of Protection:
|
IP21 IP65/66
|
|
Warranty:
|
Original Factory Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|

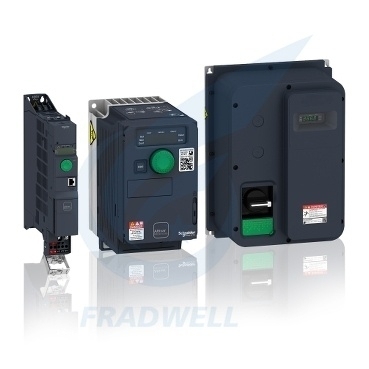

The Altivar™ Machine ATV320 is a mechanical equipment-specific variable frequency drive designed to meet the growing digitalization needs of industrial manufacturing processes. OEMs require multi-functional industrial solutions that can be easily integrated into hybrid automation systems.
Built on robust design standards with global certifications, the ATV320 delivers safety, reliability, and simplicity. This outstanding solution helps reduce installation costs, enhance machine performance, and extend machine lifecycle through optimized installation and maintenance.
| Category | Specific Parameters | Details |
|---|---|---|
| Basic Specifications | Power Range | 0.18–22kW (0.25–20hp) |
| Voltage Range | 200V–600V | |
| Operating Ambient Temperature | -15–50°C (no derating); 50–60°C (with derating factor) | |
| Protection Class (IP/Nema) | IP21/66/65, UL type 1, UL type 4X | |
| Motor-related | Motor Types | Synchronous motor, asynchronous motor, permanent magnet synchronous motor (PMSM), brushless DC motor (BLDC) |
| Motor Control Methods | Sensorless vector control, standard V/F, 5-point V/F, synchronous motor control, variable torque for fans/pumps, energy-saving mode | |
| Safety Functions | Safety Functions | STO (Safe Torque Off), SLS (Safe Limited Speed), SS1 (Safe Stop 1), SMS (Safe Maximum Speed), GDL (Guard Door Lock) |
| Model Number | Power | Voltage Rating | Phase |
|---|---|---|---|
| ATV320U02M2W | 0.18kW (0.25hp) | 200-240VAC | Single-phase |
| ATV320U04M2C | 0.37kW (0.5hp) | 200-240VAC | Single-phase |
| ATV320U07N4B | 0.75kW (1hp) | 380-500VAC | Three-phase |
| ATV320U15M3C | 1.5kW (2hp) | 200-240VAC | Three-phase |
| ATV320U30N4C | 3kW (4hp) | 380-500VAC | Three-phase |
| ATV320U55S6C | 5.5kW (7.5hp) | 500-600VAC | Three-phase |
| ATV320D11N4C | 11kW (15hp) | 380-500VAC | Three-phase |
| ATV320D15M3C | 15kW (20hp) | 200-240VAC | Three-phase |
| ATV320U22N4W | 2.2kW (3hp) | 380-500VAC | Three-phase |
| ATV320U07S6C | 0.75kW (1hp) | 500-600VAC | Three-phase |
| ATV320U11M2WS | 1.1kW (1.5hp) | 200-240VAC | Single-phase |
| ATV320U40N4B | 4kW (5.5hp) | 380-500VAC | Three-phase |
Supports "Material Conveying" simple macro; 16 preset speeds flexibly match different conveying rhythms. Open-loop torque control prevents motor overload from material jams. Optional IP21/66 protection adapts to dusty/humid workshop environments. Sensorless vector control ensures stable spindle speed (±0.5% accuracy). STO function complies with EN ISO 13849 safety standards.
Built-in variable torque control mode for fans with energy-saving mode reduces consumption by over 30%. PID regulation automatically adjusts speed based on air pressure/volume. DC injection quick stop prevents water hammer effect. Common DC bus design reduces reactive power loss in multi-pump systems.
Integrated PLC function simplifies external controllers and reduces wiring. Inching operation facilitates equipment debugging. 4 parameter group switching stores operating parameters for different specifications. Synchronous motor control ensures speed synchronization between printing rollers.
"Hoisting" simple macro includes overload protection and braking logic. SLS (Safe Limited Speed) and SS1 (Safe Stop 1) comply with hoisting equipment safety standards. Open-loop control for PMSM adapts to high-efficiency hoisting motors, reducing energy consumption.
IP66 high protection level (UL Type 4X) withstands washing and disinfection, complying with food industry hygiene standards. Fanless design avoids dust accumulation and reduces cleaning dead ends. Automatic restart function meets continuous production line operation needs.
A: The ATV320U55N4C is preferred. The power code "U55" corresponds to 5.5kW, and voltage code "N" suits 380-500V three-phase systems. Key checks: confirm support for "fan variable torque" control mode, and for outdoor applications, select IP66 protection model (suffix "W") to prevent rainwater damage.
A: Yes, with two parameter adjustments: change "motor type" to "PMSM" and use "auto-identification" to read motor specifications from nameplate. For food workshops requiring washing, IP66 protection models are mandatory.
A: Store parameters for each specification in separate groups (4 available). Switch between groups via external terminals or panel buttons when changing specifications. Ensure motor is stopped before switching to avoid overload protection triggers.
A: Maintain minimum 15cm vertical and 5cm horizontal spacing. Close stacking causes heat accumulation - 3 stacked units at 40°C reduces maximum temperature tolerance to 45°C. Recommend adding cabinet exhaust fan for auxiliary heat dissipation.
A: Likely wiring issues: separate analog from power wires to avoid interference; ensure common ground between sensor and inverter power; adjust "analog input filter time" to 0.5s in industrial environments for signal stability.
A: Wire emergency stop directly to STO terminals (S1 and S2); no additional relay required. Use twisted shielded wires under 5 meters length. Test: emergency stop should immediately cut motor torque and display "STO Activated".
A: Clean dust from heat dissipation holes with compressed air. Adjust "derating temperature point" to 45°C to allow early derated operation (10% power reduction). Confirm fan load doesn't exceed inverter rated torque.
A: Motor kinetic energy converts to electrical energy, raising DC bus voltage. Solutions: shorten "DC injection time" to 0.2s, or use common DC bus design (with ATV Regen) for multi-pump systems to consume excess energy.
A: Check input power voltage (single-phase models prone to wrong wiring). If power normal, internal switching power supply may be faulty. Contact after-sales service - do not open cover due to electric shock risk.
A: Monthly: vacuum dust from heat dissipation holes. Semi-annually: check terminal connections. Component life: electrolytic capacitors ~5 years (halves with every 10°C temperature increase); IGBT modules ~8 years (reduces to 3-4 years with frequent overloading). Annual insulation testing recommended.
A: Add 3-5 second "start delay after power recovery" and bind to safety door signal - restart only when door closed. Not recommended for hoisting equipment to prevent sudden falling; use SS1 function instead.
