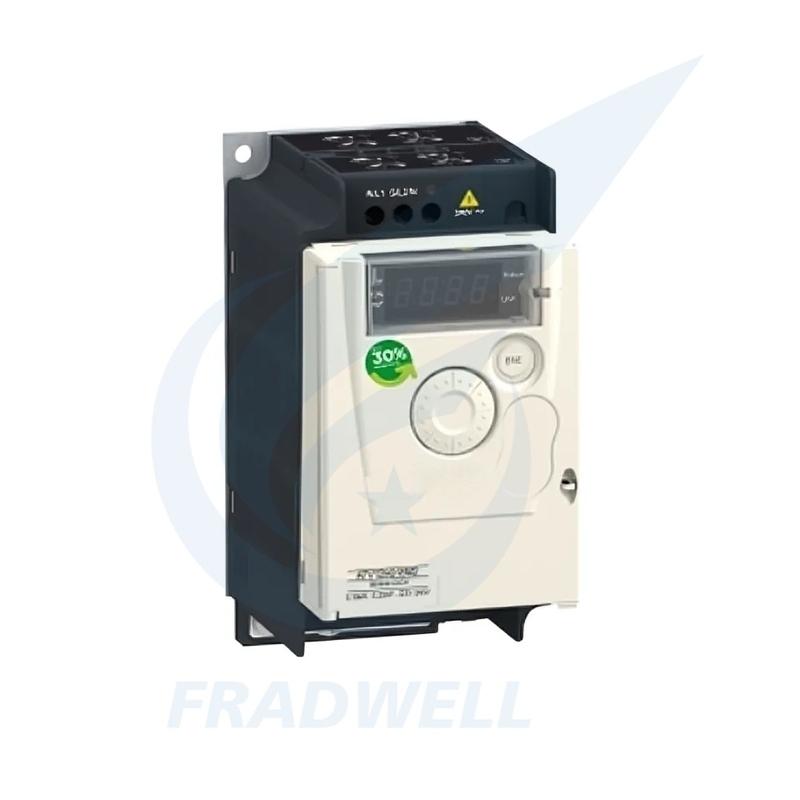

ATV12 Frequency Converter Inverter Specialized frequency converter for mechanical equipment 0.18-4 KW

Name: ATV12 Frequency Converter Inverter Specialized frequency converter for mechanical equipment 0.18-4 KW
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: ATV12
Price: 200.00 USD
Availability: InStock

Product Details

Place of Origin: France

Model Number: ATV12

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $100-$300

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    ATV12 frequency converter for machinery, 0.18-4KW mechanical equipment inverter, specialized frequency converter with warranty


Product Name:	Frequency Converter Inverter	Output Power:	0.18 - 4 KW
Level Of Protection:	IP20	Warranty:	Original Factory Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line

Product Name:	Frequency Converter Inverter
Output Power:	0.18 - 4 KW
Level Of Protection:	IP20
Warranty:	Original Factory Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line

ATV12 Frequency Converter Inverter Specialized frequency converter for mechanical equipment 0.18-4 KW

Specialized frequency converter for mechanical equipment 0.18-4 KW featuring easy installation, compact design, and integrated multiple functions. The optional base-mounted version makes it particularly suitable for simple industrial machinery or various civil equipment.

Core Electrical Parameters

Voltage Ratings	Three configurations available: 100 - 120V single-phase (for 0.18 - 0.75kW), 200 - 240V single-phase (for 0.18 - 2.2kW), 200 - 240V three-phase (for 0.18 - 4kW)
Control Modes	Supports V/f control, sensorless flux vector control, and energy-saving ratio control mode, adapting to small motor speed regulation scenarios with different precision requirements
Protection & Anti-interference	IP20 protection rating; integrated Class C1 EMC filter reduces electromagnetic interference to surrounding equipment, suitable for electromagnetic environments in civil and small industrial settings
Environmental Adaptability	Wide operating temperature range: -10℃ - +50℃ (no derating required), up to +60℃ for operation; fully coated circuit board design resists harsh on-site conditions such as dust and light oil contamination

Key Advantages

Plug-and-play for time savings: Factory-preset parameters enable direct equipment startup without additional debugging. Terminals feature clear labels, and with a multi-function loader, configurations can be loaded without removing the inverter from the package, significantly reducing installation, wiring, and parameter setting time.
Practical braking performance: Achieves 70% of the motor's rated torque braking effect without the need for an additional braking resistor, suitable for small fans, pumps, and other equipment that do not require forced braking, lowering the cost of additional accessory purchases.
High stability and durability: Internal components are designed for a 10-year service life, with standard fully coated protection to handle common industrial site issues like dust and mild corrosion. It also comes with an 18-month warranty, resulting in low maintenance costs.

Typical Applicable Scenarios

Thanks to its compact and flexible design, the series covers multiple industrial and civil fields.

Commercial Equipment

Access control & signage: Access control systems, rotating billboards
Healthcare: Hospital beds, treadmills
Food & beverage: Commercial ovens, mills, kneaders, mixers, etc.

Small Industrial Machinery

Material handling: Small conveyors, etc.
Packaging: Small labeling machines, small bagging machines
Pumping applications: Suction pumps, centrifugal pumps, circulation pumps, etc.
Fan-equipped machinery: Air/flue gas extraction systems, plastic film making machines, ovens, boilers, etc.

Other Applications

Mobile machinery and small equipment with power outlets
Applications traditionally using alternative solutions (2-speed DC motors, mechanical drives, etc.)

Model Specifications

100 - 120V Single-Phase Specifications

Models in this voltage range have a power focus of 0.18 - 0.75kW, suitable for low-voltage small civil or simple commercial equipment.

Model Number	Rated Power	Core Features
ATV12H018F1	0.18kW	Compatible with 0.25hp motors; no special additional markings; suitable for basic low-power equipment
ATV12H037F1	0.37kW	Equipped with a heat sink; compatible with 0.55hp motors; adaptable to light heat-generating working conditions
ATV12H075F1	0.75kW	Equipped with a heat sink; compatible with 1hp motors; meets the higher-power equipment needs in this voltage range

200 - 240V Single-Phase Specifications

This range covers a power output of 0.18 - 2.2kW, suitable for most commercial equipment and small civil machinery.

Model Number	Rated Power	Core Features
ATV12H018M2	0.18kW	Compatible with 0.25hp motors; basic model without additional heat dissipation markings
ATV12H037M2	0.37kW	Equipped with a heat sink; compatible with 0.55hp motors
ATV12H055M2	0.55kW	Equipped with a heat sink; compatible with 0.75hp motors; suitable for small-to-medium commercial equipment
ATV12H075M2	0.75kW	Equipped with a heat sink; compatible with 1hp motors; commonly used in small commercial mixing and grinding equipment
ATV12HU15M2	1.5kW	Equipped with a heat sink; compatible with 2hp motors; enhanced power output for higher-load commercial equipment
ATV12HU22M2	2.2kW	Equipped with a heat sink; compatible with 3hp motors; the highest-power model in this single-phase range; suitable for high-load single-phase commercial equipment
ATV12H018M2X	0.18kW	Special customized model with a heat sink; suitable for niche customized small equipment
ATV12H037M2X	0.37kW	Customized model; suitable for 0.55hp equipment with special installation or heat dissipation requirements

200 - 240V Three-Phase Specifications

Covering a power range of 0.18 - 4kW, this range is the mainstream choice for small industrial machinery.

Model Number	Rated Power	Core Features
ATV12H018M3	0.18kW	Compatible with 0.25hp motors; basic three-phase model; suitable for small three-phase motor equipment
ATV12H037M3	0.37kW	Equipped with a heat sink; compatible with 0.55hp motors; commonly used in small three-phase conveyors and pumping equipment
ATV12H075M3	0.75kW	Equipped with a heat sink; compatible with 1hp motors; suitable for small three-phase mixing and fan equipment
ATV12HU15M3	1.5kW	Compatible with 2hp motors; suitable for small-to-medium industrial material handling equipment
ATV12HU22M3	2.2kW	Compatible with 3hp motors; suitable for high-load small packaging or pumping equipment
ATV12PU30M3	3kW	Base-mounted design; compatible with 3hp motors; suitable for continuously operating small industrial fans and pumps
ATV12PU40M3	4kW	Base-mounted; compatible with 5hp motors; the highest-power model in the three-phase range of this series; suitable for high-power small industrial fans, conveyors, etc.
ATV12HU40M3	4kW	Compatible with 5hp motors; features 150% overload capacity (for 60 seconds); suitable for short-term high-load industrial scenarios

Frequently Asked Questions

Overcurrent Alarm (displays "oCF") and Tripping Immediately After Startup

This is a high-frequency issue when the inverter is used with kneaders and small conveyors in food processing plants. Inspection may reveal motor cable insulation damage or sudden heavy material loading causing current surge. To troubleshoot: check for cable damage, manually rotate the motor shaft to check for jams, and appropriately extend the acceleration time parameter.

Displays "PRA" Lock and Inverter Is Completely Unresponsive

This often occurs with Altivar 12 inverters paired with access control devices and small labeling machines. Usually caused by ignoring the requirement to short the +24V terminal and PWR terminal during on-site wiring. Use a multimeter to measure if there is a stable 24V voltage between +24V and 0V. If normal, short the two terminals to unlock.

Frequent Shutdown Due to Poor Heat Dissipation and Abnormally Hot Housing

This is particularly common in dusty environments. The inverter's cooling fan is prone to clogging with dust. Normally, the inverter's operating temperature inside the distribution cabinet should be 30 - 50℃. To resolve: regularly clean the heat sink with compressed air (at least once a year) and avoid blocking the inverter's heat dissipation channels.

Displays "CFF" Configuration Error and Fails to Operate Normally

This often happens after equipment maintenance, accessory replacement, or reprogramming. Usually due to a mismatch between replaced accessories and the inverter's power specifications. To fix: enter the "fcs" option in the "conf" menu to reset parameters to factory defaults, then reconfigure programming parameters according to the motor nameplate.

Displays "OPF1" Phase Loss Fault and Abnormal Motor Operation

This mostly occurs with three-phase motor-compatible Altivar 12 models. Triggered when the inverter detects excessively low current or an open circuit in one phase of the motor circuit. To troubleshoot: retighten the wiring terminals, use a clamp meter to check if the current in each phase is balanced, and inspect for motor line damage.
