Product Details
Place of Origin: Japan

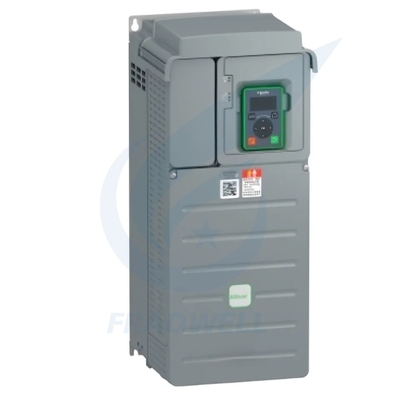

Model Number: ATV610
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $1000-$3000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|
Frequency Converter Inverter
|
Output Power:
|
4kW-160KW
|
Level Of Protection:
|
IP20
|
Warranty:
|
Original Factory Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Output Power:
|
4kW-160KW
|
|
Level Of Protection:
|
IP20
|
|
Warranty:
|
Original Factory Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Model | Rated Power (Standard Load) | Rated Power (Heavy Load) | Rated Current (Standard Load) | Rated Current (Heavy Load) | Application Scenarios |
|---|---|---|---|---|---|
| ATV610U40N4 | 4kW | 3kW | 9.3A (4kHz) | 7.2A (4kHz) | Light-load conditions such as small fans and micro water pumps |
| ATV610D18N4 | 18.5kW | 15kW | 39.2A (4kHz) | 31.7A (4kHz) | Medium-sized compressors, conveyor belts, etc. |
| ATV610D30N4 | 30kW | / | / | / | General scenarios such as medium-sized water pumps and fans |
| ATV610D37N4 | 37kW | 30kW | 74.5A (4kHz) | 59.6A (4kHz) | Large fans, industrial water pumps, etc. |
| ATV610D55N4 | 55kW | / | 106A | / | High-power compressors, heavy-duty conveyor belts |
| ATV610D75N4 | 75kW | 55kW | 145A (2.5kHz) | 106A (2.5kHz) | Large industrial pumps, centralized fans |
| ATV610D90N4 | 90kW | / | 173A | / | High-power fans, heavy-duty industrial pumps |
| ATV610C16N4 | 160kW | 132kW | 302A (2.5kHz) | 250A (2.5kHz) | Large energy plant fans, pumps in the oil and gas sector |
| Parameter Category | Specific Parameters |
|---|---|
| Power Supply Parameters | Rated supply voltage: 380 - 460V AC (fluctuation range -15%~+10%); Supply frequency: 50 - 60Hz (fluctuation ±5%); Network phase: 3-phase |
| Output Parameters | Output voltage ≤ supply voltage; Output frequency: 0.0001 - 500Hz; Switching frequency: 1 - 8kHz (2 - 12kHz for some models), adjustable; Frequency resolution: 0.1Hz on display, 0.012/50Hz for analog input |
| Control & Communication | Control modes: Standard constant torque, optimized torque, standard variable torque; Preset speeds: 16; Communication protocols: Standard Modbus serial, supports Profibus DP V1 (optional); Communication interfaces: 2-wire RS485, 1 RJ45 (for remote graphic terminal); Address range: 1 - 247 (Modbus) |
| I/O Ports | Analog inputs: 3 (configurable for 0 - 10V DC or 0 - 20mA current, some support temperature/water level sensors); Digital inputs: 6 (DI5 and DI6 can be set as pulse inputs, 0 - 30kHz); Relay outputs: 3 (minimum switching current 5mA/24V DC) |
| Protection & Environment | Protection class: IP20; Operating temperature: -15 - 45℃ (no derating), 45 - 60℃ (derating required); Circuit boards with protective coating, busbars with plating treatment; Installation method: Cabinet mounting, vertical installation (±10° deviation allowed) |
| Structure & Cooling | Cooling method: Forced convection cooling; Physical features: Compact design, weight ranges from 4 - 82kg depending on model; Remote display terminal supports 22mm quick-mounting |
| Protection Functions | Motor side: Thermal protection, phase loss protection; Inverter side: Overheating, overcurrent, short circuit, DC bus overvoltage/undervoltage, supply phase loss, overspeed protection, etc.; Insulation resistance: ＞1MΩ (tested with 500V DC, 1 minute to ground) |
| Function Configuration | Acceleration/deceleration time: 0.01 - 9000 seconds, independently adjustable, supports S-curve, U-curve or custom curve; Pre-programmed function blocks: 7, covering 90% of pump and fan scenarios; Parameter copying: Achievable via keypad between multiple powered-on devices |
| Expansion Functions | Expansion slots: Slot A supports optional communication cards, logic/analog I/O expansion cards, relay output cards; Control circuit terminals: Color-coded to prevent misuse, specification 0.5 - 1.5mm² |
