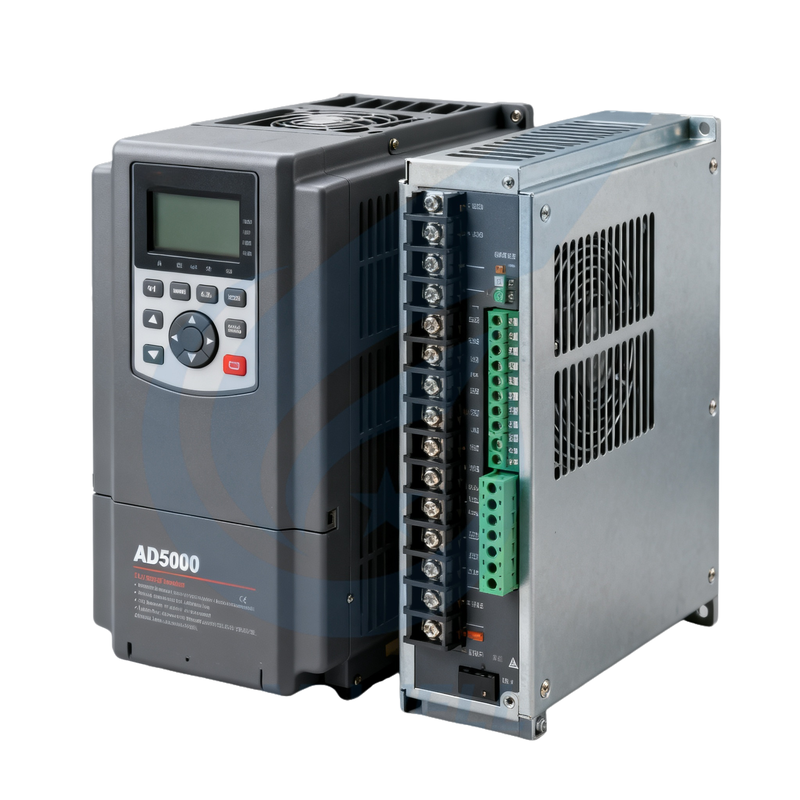

AD5000 Series Low-Voltage Inverter High-power Engineering Type Frequency Converter Inverter

Name: AD5000 Series Low-Voltage Inverter High-power Engineering Type Frequency Converter Inverter
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: AD5000
Price: 1,650.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Model Number: AD5000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD300-3000

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,T/T,D/P,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    AD5000 low-voltage inverter, high-power frequency converter, engineering type industrial inverter


Output Power:	0,75 --- 3200kW / 132 --- 4000kW	Product Name:	Frequency Converter Inverter
Warranty:	Original Factory Warranty	Pakage:	Original Pakage
Level Of Protection:	IP20	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

Output Power:	0,75 --- 3200kW / 132 --- 4000kW
Product Name:	Frequency Converter Inverter
Warranty:	Original Factory Warranty
Pakage:	Original Pakage
Level Of Protection:	IP20
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

AD5000 Series Low-Voltage Inverter High-power Engineering Type Frequency Converter Inverter

The AD5000 series low-voltage inverter is manufactured by Ansaldo Industrial Systems of Italy. With years of experience in R&D, design and manufacturing of vector-type inverters, this series adopts fully digital open-loop/closed-loop vector control, covers multiple voltage levels and the entire power range, with flexible power supply configuration, complete protection functions and a wide range of optional features.

Key Features

Compact structure
Easy installation
Superior performance
Long service life
High cost-effectiveness
Convenient commissioning

Technical Specifications

Topology	Voltage-source two-level IGBT inverter
Control Modes	V/F, Vector V/F, FOC, AFE
Voltage Range	380 - 480Vac (+/-10%) / 525 - 690Vac (+15/-10%)
Power Range	0.75 - 3200kW / 132 - 4000kW
Power Supply Configuration	AC-AC (6-pulse, 12-pulse, 18-pulse) / DC-AC
PWM Switching Frequency	1.5 - 8 kHz
Cooling Method	Forced air cooling
Communication Methods	Standard: Profibus DP, Modbus TCP/IP; Optional: ProfiNet, Ethernet/IP
Protection Class	IP20
Operating Temperature	0-40°C (maximum 55°C)
Altitude	1000m (maximum 3000m)

Product Models & Specifications

AD5000-F-380-480Vac±10% Series

Model	Frame	CLO IN0 (A)	CL1 IN1 (A)	CL1 Motor (4p) KW	CL1 Motor (4p) HP	CL2 IN2 (A)	CL2 Motor (4p) KW	CL2 Motor (4p) HP	Height (mm)	Width (mm)	Depth (mm)	Weight (Kg)
AD5A030FSBFH	IIIN	42	40	18,5	30	32	15	25	454	246	279	32
AD5A036FSBFH	IIIN	55	52	22	40	40	18,5	30	454	246	279	32
AD5A045FSBFH	IVN	68	65	30	50	52	22	50	675	290	289	36
AD5A053FSBFH	IVN	81	77	37	60	65	30	50	675	290	289	36
AD5A066FSBFH	IVN	101	96	45	75	77	37	60	675	290	289	40
AD5A086FSBFH	VN	130	124	55	100	96	45	75	755	290	304.5	52
AD5A108FSBFH	VN	164	156	75	125	124	55	100	755	290	304.5	52
AD5A125FSBFH	VIN	189	180	90	150	156	75	125	1000	300	334.5	88
AD5A150FSBFH	VIN	221	210	110		180	90	150	1000	300	334.5	96
AD5A166FSBFH	VIN	252	240	132	200	200	110		1000	300	334.5	96
AD5A210FSBFH	VII	310	300	160	250	240	132	200	1068	290	526	120
AD5A260FSBFH	VII	395	370	200	300	285	160	200	1068	290	526	120
AD5A290FSBFH	VII	440	410	225	350	320	160	250	1068	290	526	120
AD5A350FSBFH	VIII	550	510	280	400	385	200	300	1490	290	526	165
AD5A370FSBFH	VIII	580	540	280	450	410	225	350	1490	290	526	165
AD5A440FSBFH	VIII	650	640	355	550	510	280	400	1490	290	526	165
AD5A480FSBFH	VIII	740	690	400	600	530	280	450	1490	290	526	165
AD5A520FSBFH	VIII	810	750	450	650	585	315	500	1490	290	526	165
AD5A580FSBFH	2xVII	880	820	450	700	640	355	500	1126	600	530	270
AD5A700FSBFH	2xVIII	1.1	1020	560	800	770	450	600	1524	600	530	335
AD5A740FSBFH	2xVIII	1.16	1080	630	900	820	450	700	1524	600	530	335
AD5A880FSBFH	2xVIII	1.3	1280	710	1000	1020	560	800	1524	600	530	335
AD5A960FSBFH	2xVIII	1.48	1380	800	1200	1060	560	900	1524	600	530	335
AD5A1K0FSBFH	2xVIII	1.62	1500	800	1300	1170	630	1000	1524	600	530	335
AD5A1K1FSBFH	3xVIII	1.74	1620	900	1350	1230	710	1050	1524	900	530	495
AD5A1K3FSBFH	3xVIII	1.95	1920	1000	1650	1530	800	1200	1524	900	530	495
AD5A1K4FSBFH	3xVIII	2.22	2070	1000	1800	1590	900	1350	1524	900	530	495
AD5A1K6FSBFH	3xVIII	2.43	2250	1250	1950	1755	1000	1500	1524	900	530	495

AD5000-K-525/690Vac±15%,-10% Series

Model	Frame	CLO IN0 (A)	CL1 IN1 (A)	CL1 Motor (4p) KW	CL1 Motor (4p) HP	CL2 IN2 (A)	CL2 Motor (4p) KW	CL2 Motor (4p) HP	Height (mm)	Width (mm)	Depth (mm)	Weight (Kg)
AD5A260KSNFH	VII	230	215	200	200	160	132	150	1068	290	526	120
AD5A280KSNFH	VII	255	235	225	250	180	160	150	1068	290	526	120
AD5A440KSNFH	VIII	400	370	355	350	275	250	250	1490	290	526	120
AD5A500KSNFH	VIII	450	420	400	450	315	250	300	1490	290	526	120
AD5A530KSNFH	VIII	480	445	450	500	330	315	350	1490	290	526	120
AD5A650KSNFH	VIII	580	540	500	600	405	400	450	1490	290	526	120
AD5A880KSNFH	2xVIII	800	740	710	800	550	500	600	1524	600	530	335
AD5A1K0KSNFH	2xVIII	900	840	800	900	630	630	700	1524	600	530	335
AD5A1K1KSNFH	2xVIII	960	890	900	950	660	630	700	1524	600	530	335
AD5A1K3KSNFH	2xVIII	1160	1080	1000	1100	810	800	850	1524	600	530	335
AD5A1K5KSNFH	3xVIII	1350	1260	1250	1250	945	900	1000	1524	900	530	495
AD5A1K6KSNFH	3xVIII	1440	1335	1300	1400	990	950	1100	1524	900	530	495
AD5A2K0KSNFH	3xVIII	1740	1620	1600	1700	1215	1250	1250	1524	900	530	495

Industry-Specific Application Scenarios

Crane Industry

For hoisting, luffing and traveling mechanisms of port container cranes, precise vector control enables smooth lifting and movement of heavy loads, adapting to 110%/150% overload requirements
Frequency conversion speed regulation for overhead cranes and gantry cranes reduces start-up impact, protects mechanical structures, and improves operational efficiency

Steel & Metallurgical Industry

Speed regulation control for blast furnace fans and converter dust removal fans in steelworks. Flexible power supply configuration adapts to complex power grid environments, ensuring continuous operation
For auxiliary drive systems of rolling mills (roller tables, coilers), fully digital closed-loop control achieves speed synchronization to meet high-intensity production needs

Cement Industry

Drives rotary kilns, grate coolers and cement mills in production lines. Adapts to high-temperature and dusty conditions with IP20 protection and forced air cooling
Frequency conversion adjustment for cement conveying fans and water pumps reduces energy consumption while accessing factory control systems through rich communication protocols

Rubber, Plastic & Papermaking Industries

Speed control for extruders and injection molding machines in rubber/plastic industry. Accurately matches material processing processes and improves product consistency
Drives wire section, press section and drying section of paper machines. Multi-motor synchronous control ensures stable paper tension across full power range

Printing, Packaging & Test Bench Applications

For laminating machines, die-cutting machines and conveyors in printing/packaging lines, enabling stepless speed regulation and smooth start-stop for high-frequency operation
Load simulation and speed regulation control for industrial motor test benches with flexible control modes (V/F, FOC) to meet various test requirements

Frequently Asked Questions

Q1: The AD5000 inverter for port container crane hoisting frequently triggers 150% overload protection, but the load is normal. What could be the cause?

Most likely the overload protection parameters don't match actual working conditions, or vector control parameters need optimization. Verify if CL2 overload curve is set to "150% 1min/5min" (defaults may use 110% CL1 curve). Check Torque Compensation parameter - for heavy load inertia during initial hoisting, increase dynamic torque response gain appropriately. If power grid voltage fluctuates significantly, enable voltage fluctuation suppression function to avoid false triggers from voltage sags. Also ensure IGBT module cooling is unobstructed and forced air cooling filter is free of dust clogging, as high temperatures reduce protection thresholds.

Q2: The AD5000 inverter supporting a cement mill has experienced frequent ProfiNet communication interruptions after 6 months in high-temperature, dusty environment. It recovers after restart but recurs. How to resolve?

Core issue lies in working conditions impacting communication interface and parameter stability. Check dustproof sealing of inverter's communication interface (IP20 protection doesn't cover interface details, so additional dustproof connectors are required) and clean dust/oxide layers on interface pins. Enable "communication timeout reconnection" function in parameters and extend timeout to 3-5 seconds (default may be 1 second, easily triggering interruptions when dust causes signal attenuation). Confirm ProfiNet baud rate matches central control system. For severe grid interference, ground communication cable shield and install EMC filter on inverter side to reduce electromagnetic interference.

Q3: In steel mill rolling mill auxiliary drive system, multiple AD5000 inverters control roller tables synchronously, but slight speed deviation (±0.5%) causes steel plate conveying offset. How to calibrate?

Speed deviation stems from improper synchronous control mode selection or parameter mismatch. Confirm if "Master-Slave Control" is enabled - recommend setting one inverter as master (speed reference) and others as slaves (torque following) instead of independent V/F control. Adjust slave's Torque Response Time to match master (usually 0.1-0.3 seconds) to avoid speed differences from torque lag. Check encoder feedback signal (if configured) for loose wiring, and enable "speed feedback filtering" in parameters to filter high-frequency interference and improve synchronization accuracy.

Q4: When AD5000 inverter is used with rubber and plastic extruders, motor vibrates at low speeds (below 5Hz), resulting in uneven material extrusion. How to address?

Low-speed vibration is common in vector control, mainly related to low-frequency torque characteristics. Switch control mode to "Vector V/F" (balancing vector precision and low-frequency stability) instead of pure FOC mode. Increase Low-Frequency Torque Boost gradually in 0-5Hz range (avoid overcompensation to prevent motor overheating). Adjust PWM switching frequency to 4-6kHz (default may be 1.5kHz) to reduce current harmonics and motor vibration at low speeds. For older motors, inspect winding insulation - aged windings cause unstable low-frequency torque output, requiring maintenance if necessary.

Q5: During AD5000 inverter commissioning, some key parameters (overload curve, PWM frequency) cannot be modified when reading via Modbus TCP/IP. What is the reason?

Mainly caused by inverter's "Parameter Lock" function or operating state restrictions. Check if inverter is in "RUN" state - some parameters can only be modified in "STOP" mode. Check Parameter Lock Level - if set to "Level 2 (Read-Only)", enter unlock password (default is usually manufacturer's initial password, such as 1234 or 0000). Confirm Modbus TCP/IP communication permissions - some manufacturers set "Monitoring Only", so enable "Read-Write Permission" in communication parameters and ensure computer IP is in same network segment without port conflicts.
