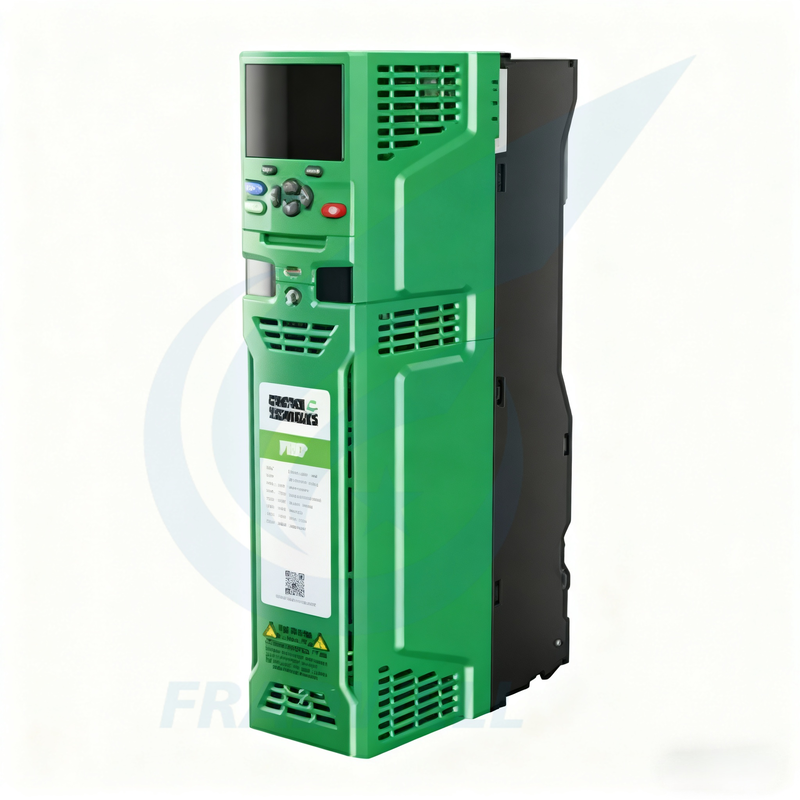

Pump F600 Special Purpose VFD Inverter 3 Phase 2.2KW-250KW VFD Inverter
-
Highlight
Special Purpose VFD Inverter
,VFD Inverter 3 Phase 2.2KW
,250KW VFD Inverter
-
TypeFrequency Converter Inverter
-
IP LevelEN 60529
-
Rated Power2.2-250KW
-
PakageOriginal Pakage
-
Quality GuaranteeOriginal Manufacturer's Warranty
-
Shipping TermInternational Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
-
Place of OriginJapan
-
Model NumberF600
-
Minimum Order Quantity1
-
Price$100 - $1000
-
Delivery Time3-5Workday
-
Payment TermsL/C,D/A,D/P,T/T,Western Union,
Pump F600 Special Purpose VFD Inverter 3 Phase 2.2KW-250KW VFD Inverter
Pump F600 Special-Purpose Pump Frequency Converter Inverter Drive 2.2-250KW
The F600 is a pump-specific inverter featuring energy efficiency and user-friendly commissioning. It covers a power range of 0.75-2.8MW, with an IP65 rating available for models up to 22KW, suitable for driving asynchronous and permanent magnet motors.
Key Features
- Available in IP20 and IP65 models
- Soft priming
- Over-circulation protection
- Automatic pump cleaning
- Dry-run protection
- Level control
Technical Specifications
| Power Supply Type | Three-phase AC |
| Operating Voltage | 200V, 400V, 575V, 690V |
| Operating Temperature | -20 to +40°C (-4°F to +104°F); Derated use allowed up to 55°C (131°F) |
| Altitude | 0 to 3000m; Derated by 1% per 100m between 1000m to 3000m |
| Vibration | Tested in accordance with IEC 60068-2-64 |
| Mechanical Shock | Tested in accordance with IEC 60068-2-29 |
| Storage Temperature | -40 to 70°C (-40°F to +158°F) |
| Electromagnetic Immunity | Complies with EN 61800-3 and EN 61000-6-2 |
| Electrical Safety | IEC 61800-5-1 |
| Protection Class | EN 60529 |
| External EMC Filter | EN 61000-6-3 & EN 61000-6-4 |
| RoHS Compliance | Complies with RoHS standards |
| Three-proof Coating | 3C2 |
| Current Loop Cycle Time | 62us |
| Heavy-duty Peak Current | 200% (3s) |
| Maximum Output Frequency | 599 Hz (Open Loop); 550 Hz (RFC-A and RFC-S) |
| Power Range | 2.2KW - 250KW |
| Safety Standard | Meets SIL3/PLe standards |
Core Application Fields
- Municipal Water Supply and Drainage Systems: Suitable for urban water supply booster pump stations, secondary water supply equipment, as well as lift pumps, return pumps, and sludge pumps in sewage treatment plants.
- Industrial Fluid Transportation: Covers medium transfer pumps in chemical, petroleum, and pharmaceutical industries, as well as raw material transfer and cleaning pumps in the food and beverage industry.
- HVAC Systems: Used for chilled water system circulation pumps, cooling tower fans, and ground-source heat pump circulation systems in commercial buildings and industrial workshops.
- Agricultural Irrigation and Water Conservancy Projects: Adapts to booster pumps for field irrigation and orchard drip irrigation systems, as well as water diversion and drainage pumps.
- Building and Infrastructure Supporting Facilities: Domestic hot water circulation pumps and fire-fighting pressure stabilizing pumps in hotels, hospitals, and complexes.
- New Energy and Environmental Protection Equipment: Photovoltaic pump stations, wind power supporting cooling pumps, and circulation pumps in environmental treatment systems.
Frequently Asked Questions
What exclusive optimized functions does the Delta Pump F600 offer for pump loads, and what practical operational pain points can it solve?
It features three core exclusive optimization functions: adaptive flow control that automatically adjusts output frequency based on pipeline pressure, dry running protection that detects pump dry operation through current monitoring, and soft start and stop design that limits starting current surge and prevents pipeline water hammer effect.
What pressure control methods does this drive support, and how compatible is it with pressure sensors?
It supports two core pressure control modes: built-in PID constant pressure control and external signal closed-loop control. It can directly adapt to 2-wire and 3-wire pressure sensors without extra power supply modules, with sensor signal accuracy supporting ±0.1%FS and output frequency response time ≤50ms.
When multiple Pump F600 units are operating in linkage, does it support master-slave switching and cyclic operation functions?
It supports master-slave switching and cyclic operation for multi-pump linkage. Through parameter settings, up to 8 pumps can be linked with configurable switching logic and automatic rotation to avoid uneven wear and extend pump group service life.
How is the energy-saving effect of the Pump F600 specifically reflected?
Energy-saving is achieved through variable flow operation (energy consumption reduces according to cubic law at lower loads) and intelligent sleep-wake function. Practical applications show a 15kW centrifugal pump can save about 200-300 kWh per month compared with power frequency operation.
In daily maintenance, which parameters of the drive need to be focused on? Does it support remote monitoring?
Daily maintenance requires focusing on operating current, module temperature, and fault records. The drive supports Modbus RTU/TCP communication for remote monitoring of operating parameters and remote modification of set values via upper computer or mobile APP.
