Product Details
Place of Origin: Japan

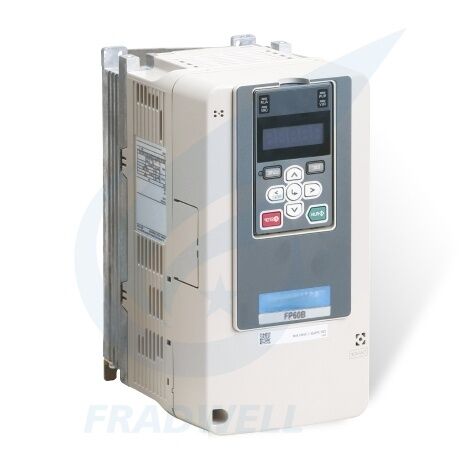

Model Number: FP60B
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD150-4000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|
Frequency Converter Inverter
|
Power Phase Number:
|
Three Phase 400V
|
Output Power:
|
0.75KW - 355KW
|
Warranty:
|
Original Factory Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Power Phase Number:
|
Three Phase 400V
|
|
Output Power:
|
0.75KW - 355KW
|
|
Warranty:
|
Original Factory Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Parameter Category | Specific Parameter Item | Details & Explanation |
|---|---|---|
| Basic Electrical Parameters | Applicable Power Supply | Three-phase 400V class, compatible only with three-phase power input |
| Basic Electrical Parameters | Capacity Range | Suitable for motor power 0.75 - 355kW, covering common power requirements of fan and pump equipment |
| Basic Electrical Parameters | Model Designation | Model: CIPR - FP6BBxxxxxxxx |
| Basic Electrical Parameters | Protection Class | IP20 for cabinet-mounted type |
| Frequency Parameters | Maximum Output Frequency | Up to 590Hz, meeting different speed adjustment needs of fans and pumps |
| Frequency Parameters | Frequency Control Method | Adjust air flow/flow rate via speed control, achieving significant energy savings compared to damper control |
| Motor Compatibility Parameters | Compatible Motor Types | Standard induction motors; High-performance PM motors (IPM/SPM); Reluctance motors (via EZ vector control) |
| Motor Compatibility Parameters | Start-up Characteristics | Speed search function allows easy starting of motors in free-running state without vibration |
| Control Function Parameters | Core Protection & Stability Functions | KEB function for continuous operation during power failures; Auto-calculation KEB for safe stopping; Fault prediction diagnosis for mechanical abnormalities |
| Control Function Parameters | Supported Control Tools | Compatible with DriveWizard tool; Supports DriveWorksEZ programming tool; Parameter setting via USB cable |
| Control Function Parameters | Parameter Characteristics | High-efficiency operation function under various loads without manual parameter setting |
| Maintenance Parameters | Wear Part Management | Life prediction diagnosis function monitors aging status of main circuit components and prompts replacement timing |
| Maintenance Parameters | Data Recording & Analysis | Operation data recording via microSD card; Data conversion into waveforms for abnormality analysis |
| Derating Parameters | Impact of Carrier Frequency | Carrier frequency settings affect rated current; adjustment required based on actual operating conditions |
| Derating Parameters | Impact of Altitude | Derating required according to altitude to adapt to different installation environments |
| Wiring & Expansion Parameters | Wiring Characteristics | Supports simple wiring; Commercial USB cables for control device connections |
| Wiring & Expansion Parameters | Optional Accessory Support | Supports expansion of peripheral equipment such as braking options |
| Applicable Motor Power | Complete Model (Standard Configuration) | Rated Output Current | Typical Application Scenarios |
|---|---|---|---|
| 0.75kW | CIPR-FP6BB4002ABBA-AAAAFA | 2.1A | Small Centrifugal Fans, Household Booster Pumps |
| 1.5kW | CIPR-FP6BB4004ABBA-AAAAFA | 4.1A | Medium-Small Axial Fans, Industrial Water Supply Pumps |
| 2.2kW | CIPR-FP6BB4005ABBA-AAAAFA | 5.4A | Ventilation Fans, Small Sewage Lift Pumps |
| 3.0kW | CIPR-FP6BB4007ABBA-AAAAFA | 7.1A | Light Industrial Circulation Pumps, Laboratory Fans |
| 3.7kW | CIPR-FP6BB4009ABBA-AAAAFA | 8.9A | Medium Centrifugal Fans, Cooling Circulation Pumps |
| 5.5kW | CIPR-FP6BB4012ABBA-AAAAFA | 11.9A | Industrial Ventilation Fans, Fire Protection Pressure Stabilizing Pumps |
| 7.5kW | CIPR-FP6BB4018ABBA-AAAAFA | 17.5A | Large Axial Fans, Agricultural Irrigation Pumps |
| 11kW | CIPR-FP6BB4023ABBA-AAAAFA | 23.4A | Medium Blowers, High-Pressure Cleaning Pumps |
| 15kW | CIPR-FP6BB4031ABBA-AAAAFA | 31.0A | Large Centrifugal Fans, Industrial Water Supply Pump Sets |
| 18.5kW | CIPR-FP6BB4038ABBA-AAAAFA | 38.0A | Forced Ventilation Fans, Hot Water Circulation Pumps |
| 22kW | CIPR-FP6BB4044ABBA-AAAAFA | 44.0A | Medium Blowers, Deep Well Water Lifting Pumps |
| 30kW | CIPR-FP6BB4060ABBA-AAAAFA | 60.0A | Large Ventilation Systems, Sewage Transfer Pumps |
| 37kW | CIPR-FP6BB4075ABBA-AAAAFA | 74.9A | High-Pressure Fans, Large Industrial Water Pumps |
| 45kW | CIPR-FP6BB4089ABBA-AAAAFA | 89.2A | Centrifugal Blowers, Fire Protection Constant Pressure Pumps |
| 55kW | CIPR-FP6BB4103ABBA-AAAAFA | 103.0A | Large Ventilation Fans, Main Irrigation Pumps |
| 75kW | CIPR-FP6BB4140ABBA-AAAAFA | 140.0A | Industrial Blower Systems, Large Circulation Pumps |
| 90kW | CIPR-FP6BB4168ABBA-AAAAFA | 168.0A | High-Pressure Centrifugal Fans, Mine Drainage Pumps |
| 110kW | CIPR-FP6BB4208ABBA-AAAAFA | 208.0A | Large Blowers, Main Industrial Water Supply Pumps |
| 132kW | CIPR-FP6BB4250ABBA-AAAAFA | 250.0A | Power Plant Ventilation Systems, Large Sewage Pumps |
| 160kW | CIPR-FP6BB4296ABBA-AAAAFA | 296.0A | Metallurgical Industry Fans, High-Pressure Feed Pumps |
| 185kW | CIPR-FP6BB4335ABBA-AAAAFA | 335.0A | Large Industrial Blower Systems, Main Mine Pumps |
| 200kW | CIPR-FP6BB4371ABBA-AAAAFA | 371.0A | Chemical Industry Fans, Large Circulation Pumps |
| 220kW | CIPR-FP6BB4389ABBA-AAAAFA | 389.0A | Large Ventilation Fans, Seawater Desalination High-Pressure Pumps |
| 250kW | CIPR-FP6BB4453ABBA-AAAAFA | 453.0A | Heavy-Duty Industrial Blower Systems, Large Irrigation Pumps |
| 280kW | CIPR-FP6BB4510ABBA-AAAAFA | 510.0A | Power Plant Boiler Fans, Industrial Water Supply Pump Sets |
| 315kW | CIPR-FP6BB4568ABBA-AAAAFA | 568.0A | Large Centrifugal Blowers, High-Pressure Fire Protection Pumps |
| 355kW | CIPR-FP6BB4675ABBA-AAAAFA | 675.0A | Heavy-Duty Industrial Ventilation Systems, Extra-Large Water Pumps |
| Application Scenario | Recommended Model | Rated Output Current | Key Function Matching Points | Notes |
|---|---|---|---|---|
| Household Booster Pump (0.75kW) | CIPR-FP6BB4002ABBA | 2.1A | Energy-saving speed regulation, compact size | Confirm transformer if adapting 220V to 380V motors |
| Workshop Ventilation Fan (7.5kW) | CIPR-FP6BB4018ABBA | 17.5A | Low-noise operation, precise speed regulation | Install away from dust sources |
| Municipal Secondary Water Supply Pump (37kW) | CIPR-FP6BB4075ABBA | 74.9A | Constant-pressure control, multi-pump linkage | Recommend matching with pressure sensors for automatic adjustment |
| Sewage Treatment Aeration Fan (110kW) | CIPR-FP6BB4208ABBA | 208.0A | Continuous operation, fault early warning | Regularly clean heat dissipation ports to prevent moisture accumulation |
| Power Plant Boiler Induced Draft Fan (315kW) | CIPR-FP6BB4568ABBA | 568.0A | Heavy-load startup, KEB power failure protection | Select models with built-in brake (suffix "B") for emergency stop |
| Farmland Irrigation Pump (15kW) | CIPR-FP6BB4031ABBA | 31.0A | Outdoor weather resistance, seasonal load adaptation | Waterproof sealing required for terminal connections |
