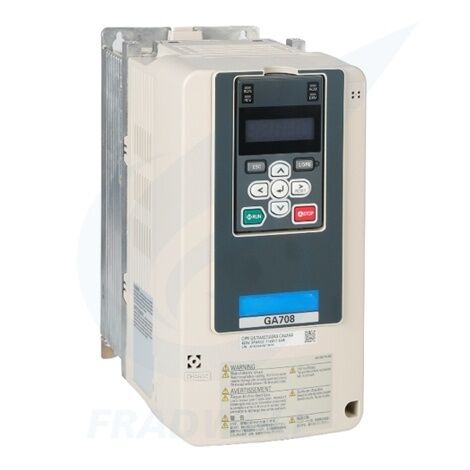

GA708 Series Specialized Frequency Converter for Specific Applications

Name: GA708 Series Specialized Frequency Converter for Specific Applications
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: GA708
Price: 1,600.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Model Number: GA708

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $400-$2800

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    GA708 specialized frequency converter, frequency inverter converter with warranty, specific application frequency converter


Product Name:	Frequency Converter Inverter	Power Phase Number:	3-Phase AC 380V ~ 480V
Output Power:	0.4kW ~ 500kW	Warranty:	Original Factory Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line

Product Name:	Frequency Converter Inverter
Power Phase Number:	3-Phase AC 380V ~ 480V
Output Power:	0.4kW ~ 500kW
Warranty:	Original Factory Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line

GA708 Series Specialized Frequency Converter for Specific Applications

GA708 Series Specialized Frequency Converter

Specialized inverter designed to meet the performance requirements of specific mechanical fields with comprehensive global compliance and application versatility.

Technical Specifications

Parameter Category	Technical Specifications	Overseas Application Notes
Basic Electrical Specifications	Model Series: GA708 (Specialized for Specific Mechanical Fields) Power Range: 0.4kW ~ 500kW Input Voltage/Frequency: 3-Phase AC 380V ~ 480V; 50/60Hz (Auto-Adaptive) Rated Output Current: 1.2A (0.4kW Model) ~ 920A (500kW Model) Output Frequency Range: 0Hz ~ 400Hz; Frequency Resolution: 0.01Hz (Digital Control), 0.1Hz (Analog Control)	Can replace legacy A1000 series in high-performance scenarios Covers light to heavy-duty industrial load requirements Complies with international industrial power supply standards (IEC 60038) Matches motor current requirements across all power segments Supports high-speed motor operation for precision machinery
Control Performance	Control Modes: Sensorless Vector Control, Sensor Vector Control, V/F Control Speed Response: ≥50Hz (with PG Feedback) Torque Limit: Adjustable 0% ~ 150% of rated torque Acceleration/Deceleration Time: 0.01s ~ 3600s	Torque control accuracy of ±5% for induction motors/permanent magnet motors Reduces vibration in low-rigidity mechanical systems Prevents mechanical damage from sudden load fluctuations Enables smooth start/stop for fragile loads
Protection & Reliability	Comprehensive protection functions Built-in brake transistor optional Operating Temperature: -10°C ~ 50°C Protection Class: Standard IP20; Optional IP54	KEB function enables safe stop during power outages External brake resistor for heavy-duty scenarios Suitable for harsh industrial environments IP54 protection for outdoor or wet locations

Model Selection Guide

Voltage Class	Power Segment	Model Number	Rated Output Current	Typical Overseas Application
380-415V AC	Small Power	GA708-3-01A2-B	1.2A	Textile machinery (small winding motors)
380-415V AC	Medium Power	GA708-3-06A5-D	6.5A	Plastic injection molding machines (1.5kW)
380-500V AC	Large Power	GA708-5-168A-D	168.0A	Power plant auxiliary pumps (90kW)
525-690V AC	Extra-Large Power	GA708-7-208A-D	208.0A	Wind turbine pitch control (110kW, 690V)

Industry Applications

Industry	Overseas Typical Scenarios
Printing & Packaging	Offset printers, gravure printers, high-speed packaging lines
Textile Dyeing & Finishing	Spinning machines, weaving machines, dyeing machines
Plastics & Rubber	Extruders, injection molding machines, film blowing machines
Material Handling	Port cranes, conveyors, automated storage systems

Frequently Asked Questions

Q1: Motor Overload (OL2) with SynRM motor at 70% load in European project?

Configure SynRM-specific parameters from motor nameplate using DriveWizard. Set control mode to "Advanced Open-Loop Vector (SynRM)" and reduce carrier frequency for long cables. Verify motor cooling system functionality.

Q2: Insulation Fault (LV) in high humidity (>85%) Southeast Asian textile factory?

Install condensation prevention heating kit and enable auto-heating function. Clean and tighten terminals, consider tropicalized GA708 model for long-term high humidity environments.

Q3: Load slip and Braking Fault (BR) in North American port crane application?

Verify braking resistor specifications and check for open circuits. Adjust braking activation timing and enable energy feedback limitation. Ensure proper mechanical brake interlock timing.

Q4: Tension fluctuations in European printing machine at high speeds?

Optimize EtherCAT communication cycles and adjust tension control parameters. Enable speed feedforward compensation and verify encoder installation and shielding.

Compatibility Note: GA708 series provides direct replacement for legacy A1000 series with 15% smaller footprint and supports both induction and permanent magnet motors with optional PG feedback.
