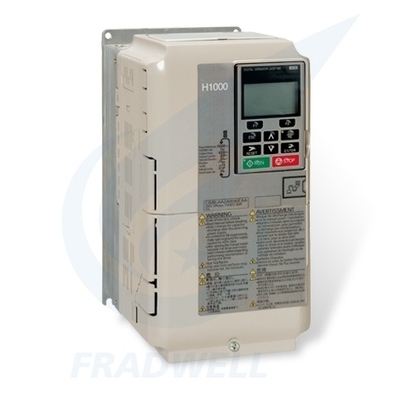

H1000 High-performance Heavy-duty Frequency Converter Inverter

Name: H1000 High-performance Heavy-duty Frequency Converter Inverter
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: H1000
Price: 1,540.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Model Number: H1000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $80 - $3000

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    H1000 heavy-duty frequency inverter, high-performance frequency converter, industrial frequency inverter with warranty


Product Name:	Frequency Converte Inverter	Power Phase Number:	Three Phase AC 380 - 480V
Rated Power:	0.4 - 560kW	Warranty:	Original Factory Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line

Product Name:	Frequency Converte Inverter
Power Phase Number:	Three Phase AC 380 - 480V
Rated Power:	0.4 - 560kW
Warranty:	Original Factory Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line

H1000 High-performance Heavy-duty Frequency Converter Inverter

Brand-New H1000 Heavy-Duty Inverter: Delivering stable and outstanding performance in heavy industrial applications. Industry-leading drive performance stems from our confidence in product quality. Advanced motor drive technology enables high-efficiency operation across diverse applications, earning trust in both performance and control reliability.

Core Features

Superior Heavy-Duty Adaptability & High Control Precision

Supports dual rating settings: Heavy Duty (HD) and Super Heavy Duty (SHD)
Overload capacity of 150% rated output current for 60 seconds (200% for 3 seconds in SHD mode)
Compatible with induction and synchronous motors
±5% torque accuracy and ±0.01% speed accuracy with PG vector control
High torque at zero speed even without sensors
Speed response above 50Hz with acceleration/deceleration compensation

Comprehensive Safety Protection & Stable Operation

Complies with EN954-1 Cat.3 and IEC/EN61508 SIL2 safety standards
EDM (Emergency Stop Monitoring) function
Over-excitation braking for emergency stops without brake resistor
KEB (Kinetic Energy Braking) function for safe deceleration during power outages

Efficient Maintenance & Multi-Scenario Communication Compatibility

USB port and DriveWorksEZ visual programming software
Automatic parameter configuration and backup
Removable terminal blocks and parameter copying function
Standard RS-422/485 communication with optional fieldbus compatibility
10-year design life with wear part life prediction

Environmental Friendliness & Harsh Environment Adaptability

RoHS compliant with Swing PWM technology
Suppresses electromagnetic interference (EMI) and reduces operating noise
Mitigates high-order power harmonics
Rugged design for reliable operation in harsh industrial conditions

Detailed Specifications

Basic Electrical Parameters (400V Class)

Parameter	Specification
Model Series	CIMR-HB4AXXXX
Rated Voltage & Frequency	3-phase AC 380-480V, 50/60Hz; DC 510-680V compatible
Allowable Voltage Fluctuation	-15% to +10%
Maximum Output Frequency	400Hz, configurable via parameter adjustment

Control Performance Parameters

Parameter	Specification
Compatible Motor Types	Induction motors, synchronous motors (IPM/SPM motors)
Control Modes	V/f control, sensorless vector control, PG-equipped vector control
Speed Control Accuracy	PG-equipped vector control: ±0.01%; sensorless vector control: ±0.2%
Torque Accuracy	±5% (with PG-equipped vector control)

Application Areas

Metallurgy & Steel Industry: Large steel plants, rolling mills, continuous casting workshops, blast furnace control
Port & Logistics Warehousing: Container gantry cranes, automated warehouses, belt conveyors
Oil & Gas / Petrochemical & Pharmaceutical: Oil pumps, pipeline pumps, agitator motors, drug delivery systems
Water Treatment & Municipal Infrastructure: Wastewater treatment plants, water supply systems, district heating
Plastics & Textile Industry: Extruders, spinning machines, weaving equipment, winding systems
Food Processing & Agricultural Machinery: Mixers, crushers, conveyors, grain dryers
Mining & Construction Materials: Crushers, ore conveyors, rotary kilns, ball mills
Machine Tools & Metal Processing: CNC spindle motors, punch presses, cutting machines, bending equipment

Frequently Asked Questions

Q: We're using the H1000 for a 55kW stamping machine (reciprocal impact load). Should we choose HD or SHD rating?

A: Definitely choose the SHD rating. HD is for continuous heavy loads like conveyors, while SHD is designed for reciprocal/impact loads like stamping machines. The 55kW stamping machine needs the 200% overload capacity for 3 seconds that SHD offers.

Q: Our H1000 is installed in a Middle Eastern oilfield, operating at 55℃ ambient temperature 24/7. Recently, it's been showing overheating faults (OH). What's the issue?

A: The standard H1000's maximum ambient temperature is 50℃. First, check if the air filter is clogged with sand and clean it thoroughly. Ensure there's at least 30cm of ventilation space around the inverter. If these don't work, install an external cooling fan or air conditioner for the control cabinet.

Q: We need to connect the H1000 to a Mitsubishi PLC with CC-Link communication. Does it support this directly?

A: The standard H1000 only comes with RS-422/485. You'll need the optional CC-Link communication module (part number CIMR-IFC01). It's plug-and-play—just insert it into the inverter's communication slot and set the station number and baud rate to match your PLC.

Q: How often do we need to maintain the H1000, and what parts are most likely to wear out?

A: Clean the air filter every 2-3 months (monthly in dusty environments). Replace the cooling fan every 2-3 years. Check the capacitor bank every 5 years. The most common wear parts are the air filter, cooling fan, and DC link capacitors.

Note: For complete technical specifications, installation guidelines, and detailed parameter settings, please consult the official product documentation or contact our technical support team.
