Product Details
Place of Origin: Japan

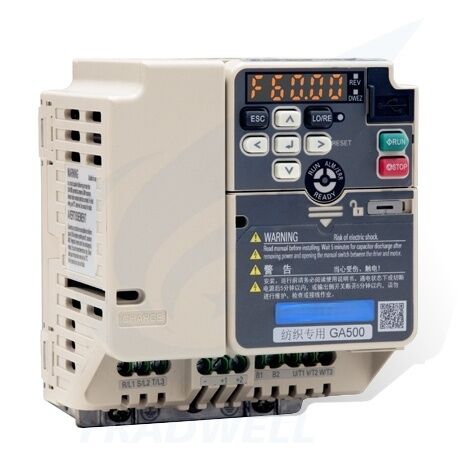

Model Number: GA500
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $300 - $3000
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|
Frequency Converter Inverter
|
Output Power:
|
0.1–40 KW
|
Power Phase Number:
|
Single Phase, Three Phase
|
Warranty:
|
Original Factory Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Output Power:
|
0.1–40 KW
|
|
Power Phase Number:
|
Single Phase, Three Phase
|
|
Warranty:
|
Original Factory Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Item | Specification | Remarks |
|---|---|---|
| Voltage/Phase | 200–240 V (1φ/3φ); 380–480 V (3φ) | ±15%/+10% voltage fluctuation; 50/60 Hz ±5% |
| Capacity Range | 240 V 1φ: 0.1–3.7 kW; 240 V 3φ: 0.1–22 kW; 480 V 3φ: 0.2–30 kW | HD/ND rating varies by model |
| Item | Specification | Remarks |
|---|---|---|
| Overload Rating | HD: 150% rated current/60 s; ND: 110% rated current/60 s | Cycle-based, derate as per manual |
| Control Modes | V/f, Open-loop Vector (IM/PM), Advanced Open-loop (PM), EZ Vector | Supports IM/PM/SynRM |
| Output Frequency | 0–590 Hz; up to 1000 Hz (special software) | Dependent on motor & control mode |
| Speed Control Range | Typ. 1:200 (open-loop vector) | Optimize via motor parameters |
| Item | Specification | Remarks |
|---|---|---|
| Digital I/O | 7 DI (sink/source selectable); 1 relay, 2 opto, 1 pulse DO (HTL) | Includes pulse input (max 32 kHz) |
| Analog I/O | 2 AI (0–10 V/4–20 mA); 1 AO (voltage/current selectable) | For setpoint & feedback |
| Standard Comm | Modbus RTU (RS-485) | Optional Ethernet/industrial Ethernet modules |
| Item | Specification | Remarks |
|---|---|---|
| Enclosure Rating | IP20 (standard); IP20/UL Type 1 kit (optional) | Side-by-side, DIN rail, external heatsink |
| Ambient Conditions | -10–60 °C (derate); ≤95% RH (non-condensing); ≤1000 m (no derate); ≤4000 m (derate) | Dust & heat dissipation critical |
| Item | Specification | Remarks |
|---|---|---|
| Safety Rating | SIL3 (IEC 62061); PLe (ISO 13849-1) | Optional safety options & correct wiring required |
| Global Certifications | CE, UL, cUL, TUV, RCM, CSA | RoHS2 compliant; SCCR: 100 kA rms symmetrical |
| Model | Rated Current (HD/ND) | Motor Power (HD) | Overload | Enclosure |
|---|---|---|---|---|
| GA50C4012EBA | 9.2 A/11.9 A | 4 kW (5.5 HP) | HD 150%/60 s; ND 110%/60 s | IP20 |
| Industry | Typical Scenarios | Adaptation Points |
|---|---|---|
| Food & Beverage | Filling line conveyors, labeling machines, sealing/cutting machines | Frequent start/stop, smooth speed regulation, PID closed-loop control |
| Plastics & Rubber | Small injection molding machines, extruders, film blowing machines | Stable torque control, strong overload capacity, high-frequency output |
| Machine Tools & Metalworking | Auxiliary axes of small machining centers, drilling/tapping machines | High-precision speed/torque control, pulse input, optional high-frequency version |
| Material Handling | Belt conveyors, roller lines, hoists, AGV/AMR driving axes | High torque at low speeds, low start/stop impact, Modbus RTU/Bluetooth debugging |
