Product Details
Place of Origin: Japan

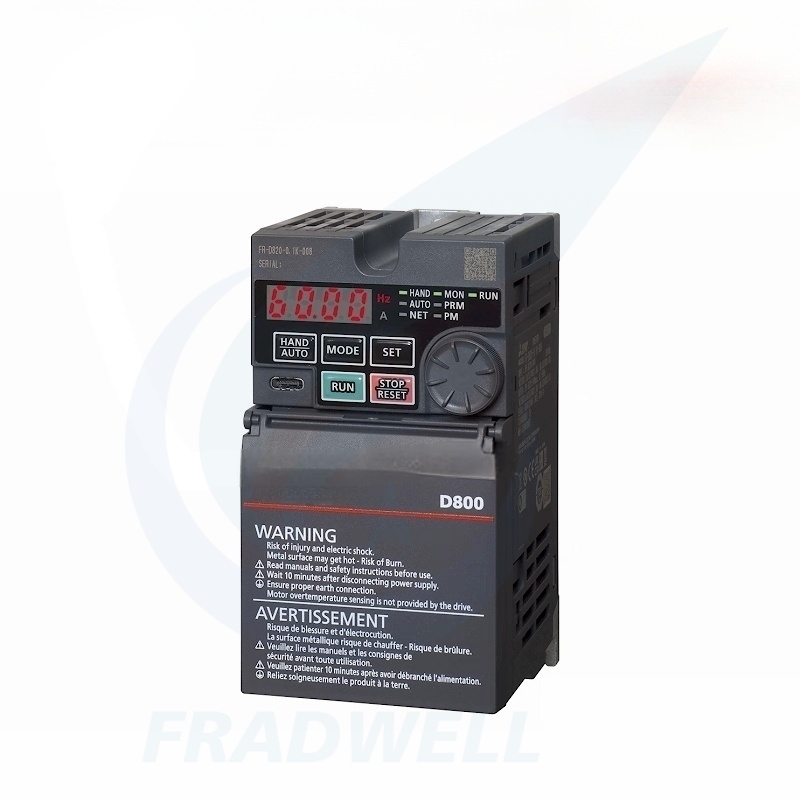

Model Number: FR-D800
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD300-7500
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|
Frequency Converter Inverter
|
Output Power:
|
0.1kW-15kW（200V ）、0.4kW-37kW（400V ）
|
Level Of Protection:
|
IP20
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Factory Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Output Power:
|
0.1kW-15kW（200V ）、0.4kW-37kW（400V ）
|
|
Level Of Protection:
|
IP20
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Factory Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Product Items | Detailed Specification |
|---|---|
| Model Series | Mitsubishi FR-D800 Series |
| Product Type | Multifunctional Compact Inverter |
| Inherited Series | FR-D700 Series |
| Input Voltage Range | 3-phase 200V class (200-240V ±10%), 3-phase 400V class (380-480V ±10%) |
| Output Voltage Range | 0-Input Voltage (continuously adjustable) |
| Rated Capacity Range | 0.1kW-15kW (200V class), 0.4kW-37kW (400V class) |
| Rating Options | ND Rating (Standard), SLD Rating (Newly Added) |
| Output Frequency Range | 0.5-400Hz (V/F control), 0-400Hz (Flux Vector Control) |
| Control Method | V/F Control, Advanced Flux Vector Control |
| Low-Speed Torque | 0.5Hz/150% Torque (Flux Vector Control) |
| Built-in Brake Transistor | Equipped for models ≥0.4kW |
| Compatible Motors | Induction Motors, PM Motors (Mitsubishi & Other Brands) |
| Parameter Setting | USB Type-C Interface (No Main Circuit Power Required), QR Code Startup Guidance |
| Operating Functions | Multi-speed Control, PID Control, Instant Stop & Restart |
| Diagnostic Functions | Component Lifespan Diagnosis, Load Abnormality Pre-detection |
| Communication Interface | RS-485 (Multi-point Connection) |
| Supported Protocols (D800-E) | CC-Link IE TSN, Modbus/TCP |
| Installation Method | Side-by-Side Installation Supported |
| Circuit Board Protection | Special Coating for Corrosive Environments (Some Models) |
| Safety Function | STO (Safe Torque Off, Compliant with Functional Safety Standards) |
| Environmental Features | Recycled Materials Used, Paper Reduction via Digitization, CO₂ Emission Monitoring |
| Voltage Class | Model | Rated Power | Core Features |
|---|---|---|---|
| 3-Phase 200V | FR-D820-0.1K-008 | 0.1kW | Basic compact model supporting side-by-side installation; ideal for small equipment with width optimization |
| 3-Phase 200V | FR-D820-0.2K-014 | 0.2kW | Built-in basic protection functions; compatible with low-power induction motors |
| 3-Phase 200V | FR-D820-0.4K-025 | 0.4kW | Built-in brake transistor for enhanced regenerative braking performance |
| 3-Phase 200V | FR-D820-0.75K-042 | 0.75kW | Supports low-speed high-torque output; suitable for small mixing equipment |
| 3-Phase 200V | FR-D820-1.5K-070 | 1.5kW | Compatible with multi-speed control; ideal for medium and small fans/pumps |
| 3-Phase 200V | FR-D820-2.2K-100 | 2.2kW | Optional anti-corrosion coated circuit board for high-humidity environments |
| 3-Phase 200V | FR-D820-3.7K-165 | 3.7kW | Width-optimized model supporting dense side-by-side installation |
| 3-Phase 200V | FR-D820-5.5K-238 | 5.5kW | Equipped with load abnormality pre-detection to reduce downtime |
| 3-Phase 200V | FR-D820-7.5K-318 | 7.5kW | 100% regenerative braking duty cycle to shorten deceleration time |
| 3-Phase 200V | FR-D820-11K-450 | 11kW | Supports PM motor drive, compatible with non-Mitsubishi motors |
| 3-Phase 200V | FR-D820-15K-580 | 15kW | Large-capacity model with component lifespan diagnosis |
| 3-Phase 200V | FR-D820E-3.7K-165 | 3.7kW | Enhanced communication version supporting CC-Link IE TSN protocol |
| 3-Phase 200V | FR-D820E-7.5K-318 | 7.5kW | Compatible with Modbus/TCP protocol for multi-device networking |
| 3-Phase 400V | FR-D840-0.4K-012 | 0.4kW | Adapted for mainstream 3-phase industrial voltages with ND rating |
| 3-Phase 400V | FR-D840-0.75K-022 | 0.75kW | Built-in brake transistor with simplified wiring for spindle control |
| 3-Phase 400V | FR-D840-1.5K-037 | 1.5kW | Speed control accuracy of ±0.2% for precision processing equipment |
| 3-Phase 400V | FR-D840-2.2K-050 | 2.2kW | Depth-optimized design for integration into compact equipment |
| 3-Phase 400V | FR-D840-3.7K-081 | 3.7kW | SLD rating mode for fan/pump light-load scenarios |
| 3-Phase 400V | FR-D840-5.5K-120 | 5.5kW | Equipped with flux vector control for heavy-load startup scenarios |
| 3-Phase 400V | FR-D840-7.5K-163 | 7.5kW | Supports instant stop and restart function for power grid fluctuations |
| 3-Phase 400V | FR-D840-11K-230 | 11kW | Anti-corrosion coated circuit board for corrosive environments |
| 3-Phase 400V | FR-D840E-5.5K-120 | 5.5kW | Enhanced communication version compatible with PROFINET protocol |
| 3-Phase 400V | FR-D840E-11K-230 | 11kW | Supports CC-Link IE TSN and EtherNet/IP protocols |
| Single-Phase 200V | FR-D820S-0.1K-008 | 0.1kW | Adapted for overseas civilian-to-industrial single-phase power scenarios |
| Single-Phase 200V | FR-D820S-0.2K-014 | 0.2kW | Compact design for simple drive equipment in small workshops |
| Single-Phase 200V | FR-D820S-0.4K-025 | 0.4kW | Built-in overload protection for home-modified industrial equipment |
| Single-Phase 200V | FR-D820S-0.75K-042 | 0.75kW | Supports USB-Type-C parameter debugging without main power supply |
| Single-Phase 200V | FR-D820S-1.5K-070 | 1.5kW | Adapted for small catering equipment to meet civilian voltage requirements |
| Single-Phase 200V | FR-D820S-2.2K-100 | 2.2kW | Maximum braking duty cycle of 100% for rapid stopping requirements |
| Single-Phase 100V | FR-D810W-0.1K-008 | 0.1kW | Adapted for 100V single-phase voltage regions like Japan |
| Single-Phase 100V | FR-D810W-0.2K-014 | 0.2kW | Adapted for small precision instruments in laboratories |
| Single-Phase 100V | FR-D810W-0.4K-025 | 0.4kW | Built-in basic diagnostic functions for micro-motors |
| Single-Phase 100V | FR-D810W-0.75K-042 | 0.75kW | Supports multi-speed control for small automated production lines |
