Product Details
Place of Origin: Japan
Model Number: FR-E800
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $300-$3200
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
|
Product Name:
|

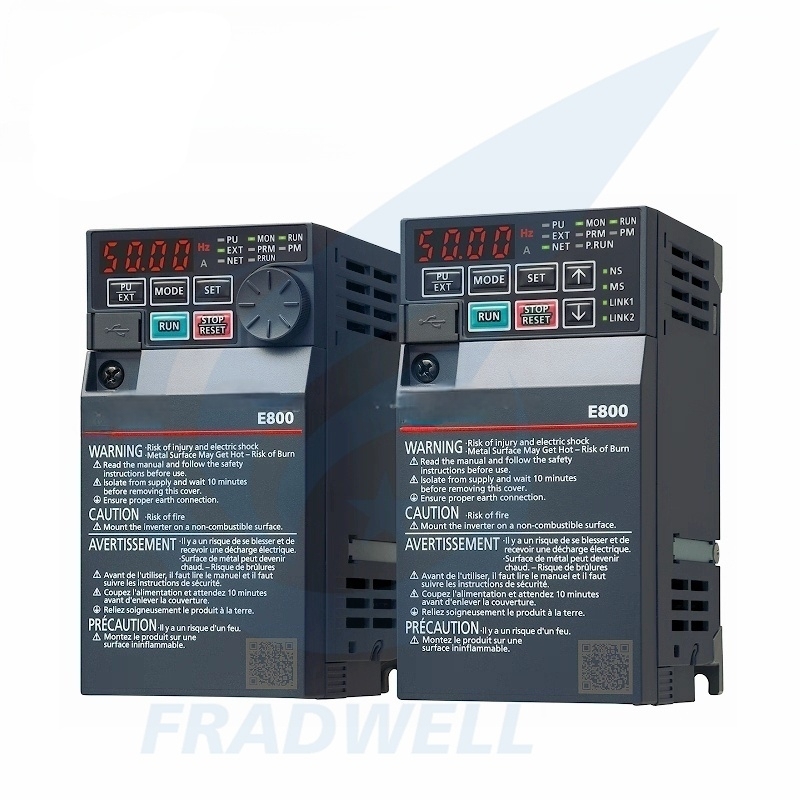

Frequency Converter Inverter
|
Output Power:
|
0.4 - 22kW
|
Level Of Protection:
|
IP20
|
Warranty:
|
Original Factory Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Output Power:
|
0.4 - 22kW
|
|
Level Of Protection:
|
IP20
|
|
Warranty:
|
Original Factory Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Specification Category | Specific Parameters | Details & Explanations |
|---|---|---|
| Basic Specifications | Model Classification | Includes 3-phase 400V class FR-E840 (Standard Type), single-phase 200V class FR-E820S, and derivative models such as E800-E (Ethernet Version) and E800-SCE (Safety Communication Version) |
| Basic Specifications | Applicable Motor Power | 3-phase 400V class: 0.4 - 22kW; Single-phase 200V class: 0.4 - 2.2kW |
| Basic Specifications | Rated Input | 3-phase 400V class: 380 - 480V, 50/60Hz; Single-phase 200V class: Compatible with corresponding single-phase AC voltage and 50/60Hz frequency |
| Basic Specifications | Rated Overload Current | LD (Light Load) Condition: 120% overload for 60 seconds, 150% overload for 3 seconds; ND (Normal Load) Condition: 150% overload for 60 seconds, 200% overload for 3 seconds at 50℃ |
| Basic Specifications | Protection Class | IP20 (per IEC 60529 standard) |
| Control Performance | Control Methods | Supports V/F Control, Advanced Flux Vector Control, Real-time Sensorless Vector Control, Vector Control; PM Sensorless Vector Control for permanent magnet motors |
| Control Performance | Output Frequency Range | Induction Motor: 0.2 - 590Hz; Permanent Magnet Motor: 0.2 - 400Hz (not exceeding motor's maximum rated frequency) |
| Interface & Networking | Built-in Interfaces | Standard RS-485 (supports Mitsubishi Inverter Protocol, MODBUS RTU), RJ-45 Ethernet port, miniB USB power supply interface |
| Environment & Safety | Operating Temperature Range | -20℃ - 60℃ |
| Environment & Safety | Safety Functions | Complies with IEC 61508 international standard; Features Safe Torque Off (STO) and Safe Speed Limiting (SSL); Some models support Ethernet safety communication protocols |
| Model Category | Voltage & Power Range | Specific Models | Core Application Scenarios |
|---|---|---|---|
| Single-Phase 200V Standard Type | 0.1 - 2.2kW | FR-E820S-0008-4-60, FR-E820S-0015-4-60, FR-E820S-0030-4-60, FR-E820S-0050-4-60, FR-E820S-0080-4-60, FR-E820S-0110-4-60 | Small standalone equipment for household and light industrial low-power scenarios |
| 3-Phase 400V Standard Type | 0.4 - 22kW | FR-E840-0016-4-60, FR-E840-0026-4-60, FR-E840-0040-4-60, FR-E840-0060-4-60, FR-E840-0095-4-60, FR-E840-0120-4-60, FR-E840-0170-4-60, FR-E840-0230-4-60, FR-E840-0300-4-60, FR-E840-0380-4-60, FR-E840-0440-4-60 | General industrial scenarios for medium-high power equipment |
| 3-Phase 400V Ethernet-Enabled Type | 0.4 - 22kW | FR-E840-0016EPA-60, FR-E840-0026EPB-60, FR-E840-0040EPC-60, FR-E840-0060EPA-60, FR-E840-0095EPB-60, FR-E840-0120EPA-60, FR-E840-0170EPB-60, FR-E840-0230EPB-60, FR-E840-0300EPB-60, FR-E840-0380EPB-60, FR-E840-0440EPB-60 | High-automation industrial scenarios requiring multi-protocol linkage |
| 3-Phase 400V Safety Communication Type | 0.4 - 22kW | FR-E840-0016SCEP-60, FR-E840-0026SCEP-60, FR-E840-0095SCEP-60, FR-E840-0120SCEP-60, FR-E840-0440SCEP-60 | High-safety industrial scenarios for heavy-duty applications needing Safe Torque Off |
