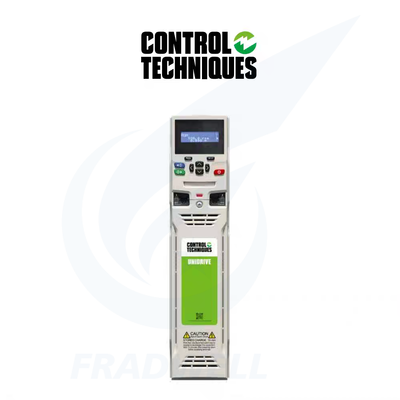

M701 High Performance Inverter 200V-690V Rock Solid In Harsh Environments

Name: M701 High Performance Inverter 200V-690V Rock Solid In Harsh Environments
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: M701
Price: 15,500.00 USD
Availability: InStock

Product Details

Place of Origin: Janpan

Model Number: M701

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $1000 - $30000

Delivery Time: 3-5workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    M701 High Performance Inverter, High Performance Inverter 200V, 690V VFD inverter


Product Name:	Frequency Converter Inverter	Rated Power:	0.75 KW–2.8 MW (1.0–4,200 Hp)
IP Level:	IP20 IP55/65	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

Product Name:	Frequency Converter Inverter
Rated Power:	0.75 KW–2.8 MW (1.0–4,200 Hp)
IP Level:	IP20 IP55/65
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

M701 High Performance Inverter 200V-690V Rock Solid In Harsh Environments

M701 High-Performance Inverter – 200-690V Wide Voltage Adaptation, Rock-Solid in Harsh Environments

M701 High-Performance Inverter

The M701 is a high-performance general-purpose inverter, covering 0.75 kW–2.8 MW with 3-phase 200/400/575/690 V input. It supports asynchronous, permanent magnet, and servo motors, featuring onboard RS485/Modbus RTU and single STO (SIL3) safety function. As the upgraded replacement for the former SP series, it is suitable for machine tools, printing, packaging, textiles, fans & pumps, hoisting, extrusion, and other applications.

Key Features & Advantages

Multi-motor Compatibility: Covers asynchronous, permanent magnet synchronous, and servo motors; supports sensorless vector control.
High-performance Control: High-bandwidth current/speed loops with 250 μs torque update rate, ideal for tension control, winding, and precision speed regulation.
Communication & Expansion: Onboard RS485 dual-port switch; optional real-time Ethernet and SI modules for safety, motion, or bus expansion.
Safety Compliance: Single STO meets basic safety requirements; optional SI modules enable advanced safety functions (e.g., safe speed, safe position).
SP Series Upgrade-friendly: Program and parameters are migratable; supports SI‑Application Plus modules for seamless replacement of legacy SP systems.
Ease of Use & Maintenance: Built-in oscilloscope, motor preheating, standby sleep mode, and low-voltage operation (minimum DC bus voltage: 24 V DC).

Core Specifications

Power Range	0.75 kW–2.8 MW (1.0–4,200 hp)
Voltage Rating	200 V, 400 V, 575 V, 690 V (±10% fluctuation tolerance)
Control Modes	Open-loop V/f, open-loop vector, RFC‑A, RFC‑S; compatible with asynchronous/permanent magnet/servo motors
Current Loop Bandwidth	3,000 Hz; Speed Loop Bandwidth: 250 Hz
Output Frequency	0–599 Hz (standard); up to 1,250 Hz (closed-loop)
Communication	Onboard RS485/Modbus RTU; optional EtherCAT, PROFINET, PROFIBUS
Safety	Single STO (SIL3/PLe); optional SI safety module for expansion
Protection Class	Standard IP20; optional IP55/IP65 enclosure
Environment	-20°C to +40°C (derated up to +50°C)
Switching Frequency	2–16 kHz (adjustable)
Integrated Functions	Onboard PLC (64 kB), 1.5-axis motion controller, 12 types of encoder interfaces

Model Specifications

200 V 3‑phase (0.75–90 kW)

Model	Frame	Current (A)	Power (kW)	SP Replacement	Full PN Example
M701‑03200025A	03	2.5	0.75	SP1401	M701‑03200025A10101AB100
M701‑03200045A	03	4.5	1.5	SP1403	M701‑03200045A10101AB100
M701‑03200062A	03	6.2	2.2	SP1404	M701‑03200062A10101AB100
M701‑04200100A	04	10.0	4.0	—	M701‑04200100A10101AB100
M701‑04200185A	04	18.5	7.5	—	M701‑04200185A10101AB100
M701‑05200250A	05	25.0	11	—	M701‑05200250A10101AB100
M701‑07200830A	07	83.0	45	—	M701‑07200830A10101AB100
M701‑10202830E	10	283.0	90	—	M701‑10202830E10101AB100

400 V 3‑phase (0.75–250 kW)

Model	Frame	Current (A)	Power (kW)	SP Replacement	Full PN Example
M701‑03400025A	03	2.5	0.75	SP1401	M701‑03400025A10101AB100
M701‑03400045A	03	4.5	1.5	SP1403	M701‑03400045A10101AB100
M701‑03400062A	03	6.2	2.2	SP1404	M701‑03400062A10101AB100
M701‑04400100A	04	10.0	4.0	—	M701‑04400100A10101AB100
M701‑04400172A	04	17.2	7.5	—	M701‑04400172A10101AB100
M701‑05400300A	05	30.0	15	SP2404	M701‑05400300A10101AB100
M701‑06400350A	06	35.0	15	SP3401	M701‑06400350A10101AB100
M701‑06400420A	06	42.0	18.5	—	M701‑06400420A10101AB100
M701‑06400470A	06	47.0	22	SP3403	M701‑06400470A10101AB100
M701‑07400660A	07	66.0	30	SP4401	M701‑07400660A10101AB100
M701‑07400770A	07	77.0	37	SP4402	M701‑07400770A10101AB100
M701‑07401000A	07	100.0	45	SP4403	M701‑07401000A10101AB100
M701‑08401340A	08	134.0	55	SP5401	M701‑08401340A10101AB100
M701‑09402000A/E	09	200.0	90	—	M701‑09402000E10101AN100
M701‑10402700E	10	270.0	132	—	M701‑10402700E10101AN100
M701‑T1404170E	T1	417.0	200	—	M701‑T1404170E10101AN100
M701‑T1404640E	T1	464.0	250	—	M701‑T1404640E10101AN100

575 V 3‑phase (15–200 kW)

Model	Frame	Current (A)	Power (kW)	SP Replacement	Full PN Example
M701‑06500180A	06	18.0	15	—	M701‑06500180A10101AB100
M701‑07500240A	07	24.0	22	—	M701‑07500240A10101AB100
M701‑07500320A	07	32.0	30	—	M701‑07500320A10101AB100
M701‑08500440A	08	44.0	45	—	M701‑08500440A10101AB100
M701‑09501310A	09	131.0	150	—	M701‑09501310A10101AB100
M701‑10501700E	10	170.0	200	—	M701‑10501700E10101AN100

690 V 3‑phase (30–280 kW)

Model	Frame	Current (A)	Power (kW)	SP Replacement	Full PN Example
M701‑07600280A	07	28.0	30	—	M701‑07600280A10101AB100
M701‑08600400A	08	40.0	45	—	M701‑08600400A10101AB100
M701‑09600630A	09	63.0	90	—	M701‑09600630A10101AB100
M701‑10600850E	10	85.0	132	—	M701‑10600850E10101AN100
M701‑T1601400E	T1	140.0	200	—	M701‑T1601400E10101AN100
M701‑T1601900E	T1	190.0	280	—	M701‑T1601900E10101AN100

Key Notes for Global Markets

Voltage Tolerance: ±10% (200 V: 180–220 V; 400 V: 360–440 V; 575 V: 517–632 V; 690 V: 621–759 V).
Control Modes: V/f, open‑loop vector, RFC‑A/RFC‑S; supports induction, PM, servo motors.
Safety: STO (SIL3/PLe) standard; optional SI module for SS1, SLS, SBC.
Communication: RS485/Modbus RTU (dual‑port switch); optional EtherCAT, PROFINET, PROFIBUS.
Enclosure: IP20 standard; IP55/IP65 available on request.
Ambient: -20°C to +40°C (derate 2.5%/°C above +40°C up to +50°C).
Brake Transistor: Not included in 10101AB100; order suffix 10101AD100 for built‑in brake transistor.

Industry Applications

Automotive Manufacturing

Used by global major automakers for body shop synchronized lifting/handling, paint shop synchronized conveyance, final assembly warehousing, test benches, and global factory adaptation with CE/cUL/DNV certification.

Packaging & Printing

Applications in food packaging, printing & paper processing, and logistics packaging across Europe, North America, and Southeast Asia with tension control and synchronization capabilities.

Material Handling & Logistics

Used in global ports, airports, and warehouses for port container handling, airport baggage sorting, and automated storage systems with 400/575/690 V global power grid compatibility.

Water Treatment & Municipal

Applications in sewage lifting, water supply & boosting, and seawater desalination across Europe, Middle East, and Australia with wide voltage tolerance and custom environmental protection.

Frequently Asked Questions

Q: We're in North America with a 575V power grid. Can we use the 400V model directly?

A: You can't use the 400V model directly—voltage mismatch will burn the internal components. For North America's 575V grid, choose the 575V series (model starts with M701‑XX50XXXX).

Q: We want to connect M701 to our Siemens S7-1500 PLC via PROFINET. Do we need an extra module?

A: Yes, the standard M701 only has onboard RS485/Modbus RTU. To use PROFINET, you need to buy the optional PROFINET communication module (part number: C200-PN).

Q: Our factory is in the Middle East, where ambient temperature often hits 50°C. Will the M701 overheat?

A: The standard operating temperature of M701 is -20°C to 40°C. At 50°C, it will trigger overheating protection. Solutions include proper ventilation, air conditioning, and adequate spacing around the drive.

Q: We're replacing an old SP series inverter with M701. Can we reuse the old parameters and wiring?

A: Wiring can be reused (as long as the wire gauge matches the current rating), but parameters can't be directly copied. Use Nidec's "SP to M701 Parameter Migration Tool" for parameter conversion.

Q: During commissioning, the drive shows fault code "STO". What's wrong?

A: "STO" means the Safe Torque Off function is triggered. Common reasons include unshorted STO input terminals, loose safety circuit wiring, or improperly configured SI safety module.
