Product Details
Place of Origin: Japan

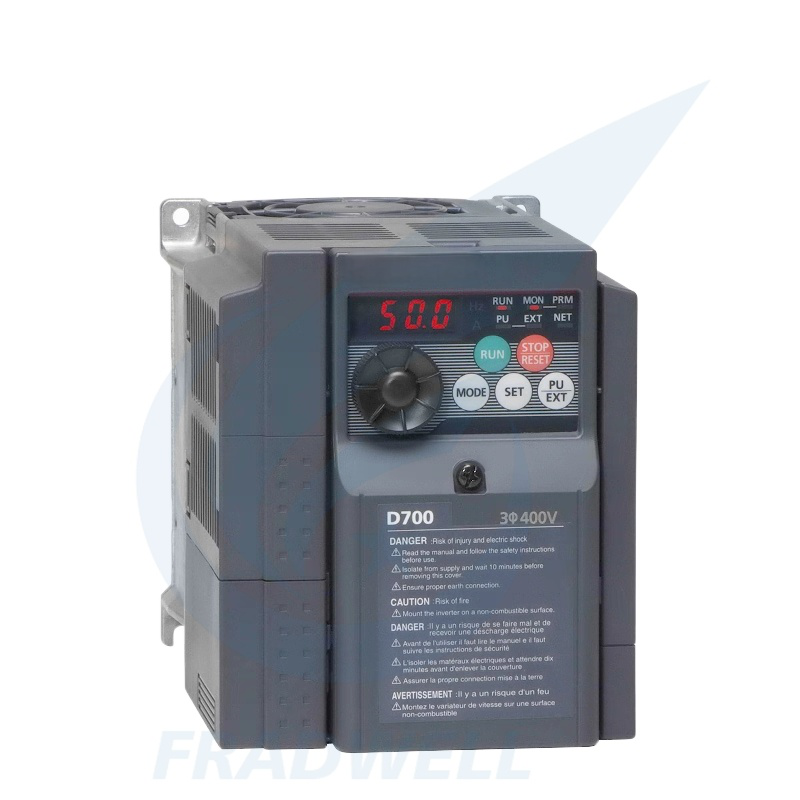

Model Number: FR-D700
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $150 - $800
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,MoneyGram,Western Union
|
Product Name:
|
Frequency Converter Inverter
|
Power Phase Number:
|
Single Phase 200 - 240V , Three Phase 380V-480V
|
Output Power:
|
0.1-15kW
|
Level Of Protection:
|
IP20
|
Pakage:
|
Original Pakage
|
Warranty:
|
Original Factory Warranty
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
|
Product Name:
|
Frequency Converter Inverter
|
|
Power Phase Number:
|
Single Phase 200 - 240V , Three Phase 380V-480V
|
|
Output Power:
|
0.1-15kW
|
|
Level Of Protection:
|
IP20
|
|
Pakage:
|
Original Pakage
|
|
Warranty:
|
Original Factory Warranty
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/ Sea Freight / Air Freight / International Special Line
|
| Specification Category | Specific Parameter | Details |
|---|---|---|
| Applicable Motor Capacity | Power Range | 0.1 - 15kW, compatible with general-purpose induction motors of different power ratings |
| Input Power Parameters | Voltage Rating | 3-phase 200 - 240V (some 200V-class models); 3-phase 380 - 480V (some 400V-class models) |
| Allowable Voltage Fluctuation | 170 - 264V (200V-class); 325 - 528V (400V-class) | |
| Frequency Compatibility | 50Hz/60Hz, with allowable frequency fluctuation of ±5% | |
| Output Performance Parameters | Rated Output Current | Varies by power: e.g., 0.1kW model = 0.8A, 15kW model = 58A (200V-class); 3.7kW model = 8A (400V-class), etc. |
| Overload Capacity | 150% rated current for 60 seconds, 200% rated current for 0.5 seconds (inverse time characteristic) | |
| Output Frequency Range | 0.2 - 400Hz, meeting speed regulation requirements of most general-purpose machinery | |
| Starting Torque | ≥150% torque at 1Hz (when using universal flux vector control with slip compensation enabled) | |
| Control-Related Parameters | Control Methods | Optional V/F control, universal flux vector control, optimal excitation control; combined with soft PWM/high carrier frequency PWM control |
| Frequency Accuracy | Analog input: Within ±1% of maximum output frequency (at 25℃±10℃); Digital input: Within 0.01% of set output frequency | |
| Acceleration/Deceleration Setting | Adjustable time: 0.1 - 3600 seconds; Supports switching between linear or S-curve acceleration/deceleration modes | |
| Additional Control Functions | Built-in PID control, triangle wave function; Supports multi-speed operation, instantaneous stop & restart, smooth speed control, etc. | |
| Structural & Protection Parameters | Protection Class | Enclosed structure with IP20 protection rating |
| Cooling Method | Natural cooling (small-power models); Forced air cooling (high-power models) | |
| Weight | Varies by power: 0.5 - 6.5kg (e.g., 0.1kW model ≈ 0.5kg, 7.5kW model ≈ 6.5kg) | |
| Interface & Auxiliary Parameters | Communication Interface | Built-in RS-485 interface with integrated Modbus-RTU protocol, enabling integration into industrial control systems |
| I/O Terminals | 2 analog input terminals, 5 contact-type digital input terminals; 1 transistor output terminal, 1 relay output terminal | |
| Braking Configuration | Built-in braking transistor; External braking resistor can be added to enhance regenerative braking capability | |
| Special Configurations | Optional EMC filter for some models; 4-digit LED digital display for parameter viewing and basic operations |
| Model No. | Target Market | Rated Capacity | Rated Current | Input Voltage | Key Additional Features | Dimensions (W*H*D, mm) | Weight |
|---|---|---|---|---|---|---|---|
| FR-D720S-008SC-EC | Europe | 0.1kW | 0.8A | 1-phase 200-240V | Modbus-RTU communication support, IP20 protection, soft PWM control | 68*128*80.5 | 0.5kg |
| FR-D720S-01SC4-EC | Europe | 0.2kW | 1.4A | 1-phase 200-240V | Frequency skip operation, suitable for speed control of small general-purpose machinery | / | / |
| FR-D720S-025SC-EC | Europe | 0.4kW | 2.5A | 1-phase 200-240V | High carrier frequency PWM control, meeting precision speed regulation requirements | / | / |
| FR-D720S-042SC-EC | Europe | 0.75kW | 4.2A | 1-phase 200-240V | Compatible with V/F control and flux vector control, suitable for low-power pumps | / | / |
| FR-D720S-070SC-EC | Europe | 1.5kW | 7.0A | 1-phase 200-240V | Multi-speed operation support, ideal for conveyors and other material handling equipment | / | / |
| FR-D720S-100SC-EC | Europe | 2.2kW | 10.0A | 1-phase 200-240V | Built-in PID control, suitable for closed-loop control scenarios like constant-pressure water supply | / | / |
| FR-D740-012SC-EC | Europe | 0.4kW | 1.2A | 3-phase 380-480V | Compliant with EU electrical standards, instantaneous stop & restart function | / | / |
| FR-D740-022SC-EC | Europe | 0.75kW | 2.2A | 3-phase 380-480V | ≥150% torque at 1Hz, excellent starting performance | / | / |
| FR-D740-036SC-EC | Europe | 1.5kW | 3.6A | 3-phase 380-480V | Equipped with Modbus-RTU/RS485 interface, meeting industrial networking needs | / | / |
| FR-D740-050SC-EC | Europe | 2.2kW | 5.0A | 3-phase 380-480V | Inverse time overload protection, suitable for machine tool auxiliary motors | / | / |
| FR-D740-160SC-EC | Europe | 7.5kW | 16.0A | 3-phase 380-480V | Forced air cooling support, ideal for high-power fan speed regulation | 220*150*155 | / |
| FR-D720-008-N6 | North America | 0.1kW | 0.8A | 3-phase 200-240V | Protective coating, suitable for humid industrial environments in North America, Modbus-RTU support | / | / |
| FR-D720-014-CC | North America | 0.2kW | 1.4A | 3-phase 200-240V | Protective coating, meeting North American industrial equipment safety standards | / | / |
| FR-D720-014-N6 | North America | 0.2kW | 1.4A | 3-phase 200-240V | Extended protective coating version, adaptable to harsh working conditions, output frequency 0.2-400Hz | / | / |
| FR-D720-025-CC | North America | 1.5kW | 7.0A | 3-phase 200-240V | Compliant with US-Canada-Mexico specifications, suitable for processing tool motor control | / | / |
| FR-D720-2.2K-G | North America | 2.2kW | 10.0A | 3-phase 200-240V | LE specification, remote I/O control support, ideal for automated production lines | / | / |
