Standard Compliance:	ANSI C57.12.28 / IEEE Standard	Configuration:	Dead-Front / Live-Front Options
Insulating Fluid:	Mineral Oil Or Bio-degradable FR3	Enclosure Type:	Tamper-Resistant Cabinet (Green Box)
High Voltage Taps:	Standard 5-position Tap Changer	Bushing Type:	Bay-O-Net Fusing System Included
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line	Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Standard Compliance:	ANSI C57.12.28 / IEEE Standard
Configuration:	Dead-Front / Live-Front Options
Insulating Fluid:	Mineral Oil Or Bio-degradable FR3
Enclosure Type:	Tamper-Resistant Cabinet (Green Box)
High Voltage Taps:	Standard 5-position Tap Changer
Bushing Type:	Bay-O-Net Fusing System Included
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

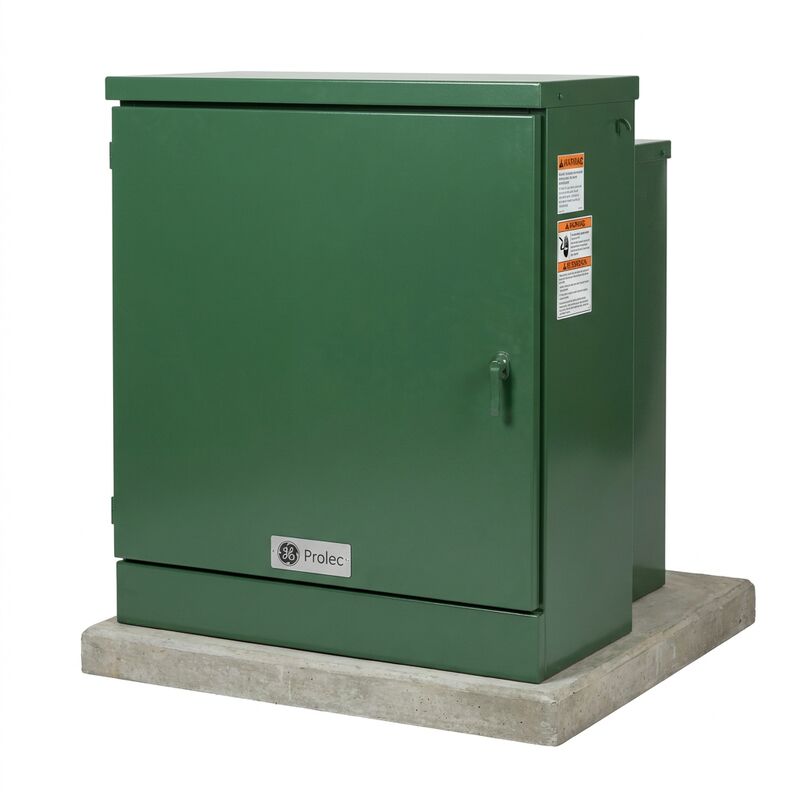

GE Prolec Pad-Mounted Transformer ANSI/IEEE Single & Three Phase 10-5000kVA

The GE Prolec Pad-Mounted series is the gold standard for North American underground distribution systems. Known for its iconic "Green Box" design, this transformer is built to rigorous ANSI/IEEE standards. It is a compact, tamper-resistant solution for residential and commercial power needs, offering superior protection and longevity.

Product Highlights

North American Standard: Fully compliant with ANSI/IEEE C57.12.28 tamper-resistance requirements.
Compact Footprint: Integrated design includes high and low voltage compartments in one secure unit.
Versatile Options: Available in Single-Phase (Residential) and Three-Phase (Commercial/Industrial).
Durable Finish: High-grade powder coating for extreme outdoor weather resistance.

Technical Specifications

Type	Common Sizes	Primary V	Secondary V	Freq
Single-Phase Pad	25kVA, 37.5kVA, 50kVA	12470GrdY/7200V	120/240V	60 Hz
Single-Phase Pad	75kVA, 100kVA, 167kVA	13200GrdY/7620V	240/480V	60 Hz
Three-Phase Pad	150kVA, 300kVA, 500kVA	12.47kV, 13.2kV	208Y/120V	60 Hz
Three-Phase Pad	1000kVA, 1500kVA, 2500kVA	24.94kV, 34.5kV	480Y/277V	60 Hz

Applications

Residential Housing Developments, Schools, Hospitals, Commercial Strips, and Public Parks.

Frequently Asked Questions

What is a "Pad-Mounted" transformer?

It is a self-contained unit housed in a tamper-resistant steel cabinet, designed for outdoor ground-level installation in residential areas.

Does it meet US utility standards?

Yes, all GE Prolec units we supply meet or exceed ANSI and IEEE standards required for North American grid connections.

What is the benefit of FR3 fluid over mineral oil?

FR3 is a bio-degradable seed-oil-based fluid that has a higher flash point, making the transformer safer and more environmentally friendly.

Can I choose the specific voltage for my region?

Yes, we specialize in US standard ratios like 12.47kV/7.2kV to 240/120V for residential or 480Y/277V for commercial use.

Is the enclosure protected against tampering?

Yes, the "Green Box" enclosure features a specific locking system and overlapping doors to prevent unauthorized access.

Do you supply single-phase units for individual housing?

Yes, we stock single-phase units from 10kVA to 167kVA, which are perfect for local residential distribution.
