Efficiency Standard:	EU Tier 2 (Eco-design Compliant)	Voltage Rating:	Up To 52 KV (Medium Voltage)
Core Material:	High-Permeability Grain-Oriented Steel	Winding Material:	Copper Or Aluminum (Optional)
Enclosure Protection:	IP00 To IP31 Available	Sound Pressure Level:	Optimized Low-Noise Design
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line	Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Efficiency Standard:	EU Tier 2 (Eco-design Compliant)
Voltage Rating:	Up To 52 KV (Medium Voltage)
Core Material:	High-Permeability Grain-Oriented Steel
Winding Material:	Copper Or Aluminum (Optional)
Enclosure Protection:	IP00 To IP31 Available
Sound Pressure Level:	Optimized Low-Noise Design
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

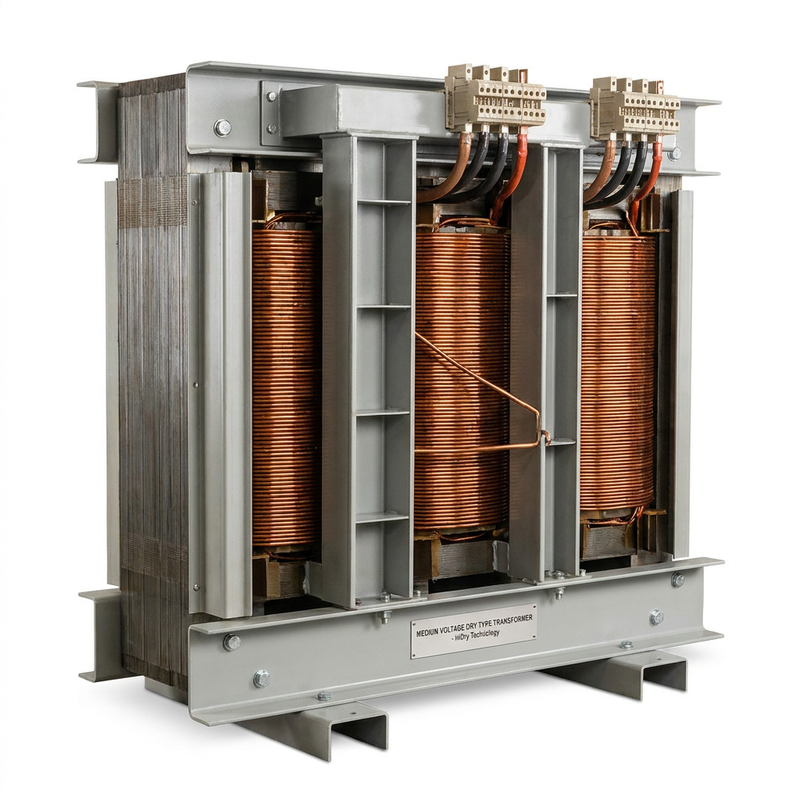

ABB HiDry Medium Voltage Dry Type Transformer Up to 25MVA 52kV Efficiency

The ABB HiDry series represents the pinnacle of medium-voltage power distribution. Engineered for extreme reliability and energy efficiency, HiDry transformers comply with the strictest EU Tier 2 loss standards. They provide a safe, sustainable alternative to oil-filled transformers for indoor substations and industrial grids.

Maximum Efficiency: Optimized core design significantly reduces no-load losses (EU Tier 2 compliant)
Global Reliability: Backed by ABB's extensive global service and engineering network
Non-Flammable: Zero oil content makes it safe for indoor high-density urban areas
Heavy Duty: Capable of handling voltages up to 52 kV and power up to 25 MVA

Product Specifications

Series	Power Range	Max Voltage	Insulation	Efficiency
HiDry 72	500kVA - 5MVA	12 kV / 24 kV	Class F / H	EU Tier 1
HiDry 100	1MVA - 15MVA	36 kV	Class H (180°C)	EU Tier 2
HiDry 145	5MVA - 25MVA	52 kV	Class H	Eco-design
HiDry Resistor	Custom	Neutral Earthing	Silicone Coated	N/A

Application Fields

Indoor Substations, Heavy Industrial Plants, Renewable Energy Grids (Wind/Solar), and Urban Power Networks.

Frequently Asked Questions

How does HiDry help reduce operational costs?

By following EU Tier 2 standards, it significantly reduces no-load losses, leading to lower energy bills and a smaller carbon footprint.

Can HiDry be used for renewable energy integration?

Absolutely. It is widely used in wind and solar farms for stable grid connection and medium-voltage power step-up.

What is the maximum voltage HiDry can handle?

The HiDry series is designed for medium-voltage grids up to 52 kV, covering most utility and industrial requirements.

Is remote monitoring available for these units?

Yes, we can integrate temperature sensors (PT100) and communication modules for SCADA or IoT-based monitoring.

What are the insulation classes for HiDry?

Most units are built with Class H (180°C) insulation, providing superior heat resistance and a longer operational life.

Does ABB HiDry require a specialized enclosure?

While standard units are IP00, we provide custom enclosures (IP23/IP31) for indoor protection against dust and water drips.
