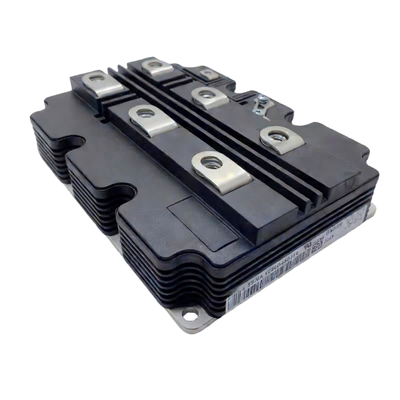

PrimePACK™ 1700V 2700A ABB IGBT Module Wind Solar Low Loss High Power Density

Name: PrimePACK™ 1700V 2700A ABB IGBT Module Wind Solar Low Loss High Power Density
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: 5SNA 2700E450300、5SNA 2700E450301、5SNA 2700E450302、5SNA 2700E450303
Price: 1,800.00 USD
Availability: InStock

Product Details

Place of Origin: Switzerland

Certification: CE、UL、RoHS、CB

Model Number: 5SNA 2700E450300、5SNA 2700E450301、5SNA 2700E450302、5SNA 2700E450303

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $100 - $3500

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            1700V 2700A ABB IGBT Module, PrimePACK 2700A ABB IGBT Module, Wind Solar IGBT Module


Type:	IGBT Moduel	Rated Voltage (V):	1700
Rated Current (A):	2700	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	IGBT Moduel
Rated Voltage (V):	1700
Rated Current (A):	2700
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

PrimePACK™ 1700V 2700A ABB IGBT Module Wind Solar Low Loss High Power Density

PrimePACK™ 1700V 2700A IGBT Module | Wind Solar Low Loss High Power Density

PrimePACK™ 1700V 2700A IGBT Module with Low Loss Design for Wind and Solar Power Applications

This PrimePACK™ 1700V 2700A IGBT module is a high-performance power solution engineered specifically for wind power and solar energy systems. Featuring advanced low switching loss technology and exceptional power density, it delivers efficient energy conversion, stable high-power operation, and optimized thermal performance. This module effectively addresses challenges like high energy consumption and insufficient power density in renewable energy converters, while significantly boosting system efficiency and reliability for large-scale new energy applications.

Product Features

High-Power Specification: 1700V voltage rating and 2700A high current capacity, delivering stable and powerful performance for large-scale renewable energy and industrial drive systems.
Ultra-Low Loss Design: Incorporates advanced SPT++ chip technology with ultra-low conduction and switching losses, significantly boosting system energy efficiency and reducing power consumption.
Superior Power Density: Optimized PrimePACK™ packaging structure provides exceptional power density to minimize equipment footprint and save installation space.
Excellent Thermal Performance: Low thermal resistance design with efficient heat dissipation path effectively lowers chip junction temperature and enhances long-term operation reliability.
Tailored for Wind & Solar: Specifically engineered for wind power converters and solar inverters, with high robustness to withstand harsh operating conditions and reduce downtime.
High Reliability & Long Lifetime: Industrial-grade quality with stable parallel operation capability and extended service life, reducing maintenance costs and total cost of ownership.

Model Specifications and Industry Applications

Model	Rated Voltage	Rated Current	Peak Current	Chip Technology	Package	Key Specifications	Applicable Industries
5SNA 2700E450300	1700V	2700A	5400A	SPT++	PrimePACK™	Ultra-low conduction/switching loss, low thermal resistance, high power density	Wind power converters, solar inverters, high-power industrial drives, SVG/STATCOM
5SNA 2700E450301	1700V	2700A	5400A	SPT++	PrimePACK™	With NTC temperature detection, optimized parallel current sharing	Offshore wind power, centralized solar PV, energy storage converters
5SNA 2700E450302	1700V	2700A	5400A	SPT++	PrimePACK™	Enhanced surge resistance, suitable for grid fluctuations	High-voltage motor drives, traction converters, UPS
5SNA 2700E450303	1700V	2700A	5400A	SPT++	PrimePACK™	Low stray inductance, EMI optimized	New energy grid-connected inverters, high-power frequency converters

Supplementary Information

Core Common Specifications:

Insulation voltage: 4kV AC/1min; Maximum junction temperature: 150℃; Operating temperature range: -40℃ to 125℃; Supports multi-module parallel connection for power expansion.

Application Scenarios:

Wind Power: Doubly-fed/straight-drive converters, compatible with LVRT and grid fluctuations, reducing downtime.
Solar PV: Centralized/string inverters, high power density saves cabinet space.
Industrial Drives: High-voltage frequency converters, rolling mill drives, low loss improves energy efficiency.
Energy Storage/Power Grid: Energy storage converters, reactive power compensation devices, high reliability for frequent charging and discharging.

Frequently Asked Questions

Q: Is this module compatible with my wind/solar inverter design?

A: Yes, it's a standard PrimePACK™ footprint, widely used in 1700V-class wind converters and central solar inverters.

Q: What's the real difference between this and standard IGBT modules?

A: Lower loss, higher power density, better thermal design - runs cooler and more efficient at full load.

Q: Can I parallel multiple 5SNA 2700E450300 modules for higher power?

A: Yes, it's designed for parallel use, with balanced current sharing for high-power systems.

Q: How long is the typical service life in wind farm applications?

A: Normally 15+ years under rated conditions, with proper cooling and maintenance.

Q: Does it have CE, UL certification for EU and North American markets?

A: Yes, it's certified for major global markets, ready for direct industrial use.

Q: What's the lead time for bulk orders?

A: Stock units can ship in 1-2 weeks.

Q: Can it handle frequent start-stop and load fluctuations?

A: Yes, built for renewable energy, stable under dynamic load and harsh environments.

Q: Is there a direct replacement for older PrimePACK models?

A: It's a direct drop-in replacement for most legacy 1700V 2700A PrimePACK versions.

Q: Do you provide datasheet and application notes?

A: Yes, full datasheet, application guidelines and thermal design docs are available.

Q: What happens if the module fails under warranty?

A: Warranty covers manufacturing defects; we offer replacement or technical support.
