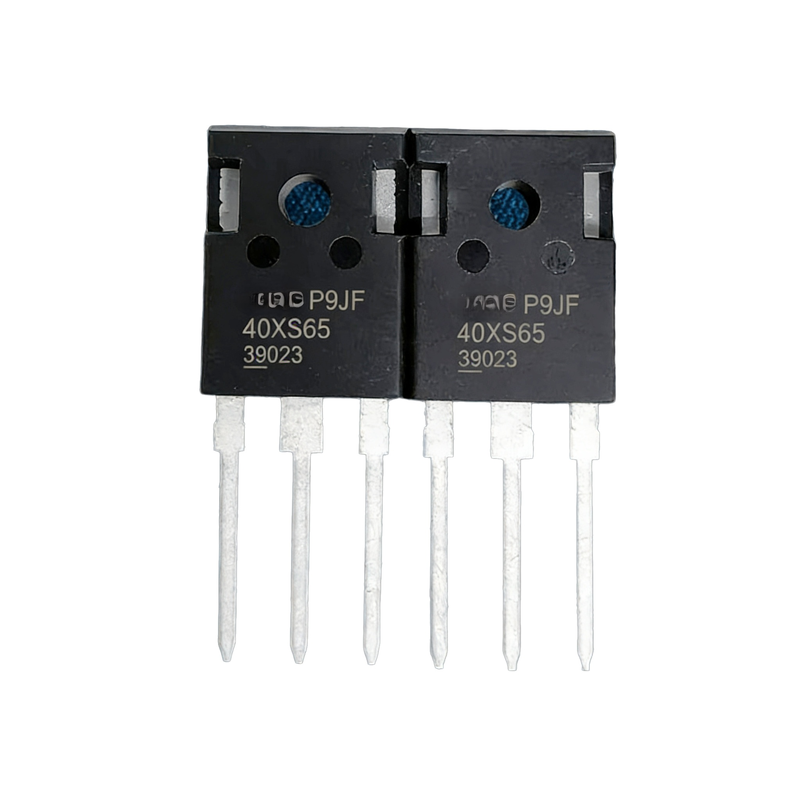

Fuji TO-247 Packaged XS IGBT Discrete For PV Inverter UPS Power Supply

Name: Fuji TO-247 Packaged XS IGBT Discrete For PV Inverter UPS Power Supply
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: TO-247
Price: 3.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Certification: RoHS、ISO9001

Model Number: TO-247

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $1-$5

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            Fuji TO-247 Packaged XS IGBT, XS IGBT Discrete, PV Inverter IGBT module


Type:	IGBT Moduel	Rated Voltage (V):	650、1200
Rated Current (A):	120、160、300	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	IGBT Moduel
Rated Voltage (V):	650、1200
Rated Current (A):	120、160、300
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Fuji TO-247 Packaged XS IGBT Discrete For PV Inverter UPS Power Supply

Fuji TO-247 Packaged XS IGBT Discrete, High Current Low VCE(sat), Ideal for PV Inverter UPS Power Supply

TO-247 Packaged XS IGBT Discrete

High Current Low VCE(sat), Ideal for PV Inverter UPS Power Supply

TO-247 Packaged XS IGBT Discrete delivers high current capability and exceptionally low VCE(sat), optimizing conduction loss and thermal performance. Engineered for high-frequency operation, it is the ideal choice for PV inverters, UPS systems, and industrial power supplies, boosting system efficiency, reducing heat generation, and ensuring stable, reliable performance in demanding renewable energy and backup power applications.

Product Highlights

Fuji Premium Quality & TO-247 Standard Package

Adopting industry-standard TO-247 packaging, this XS series discrete IGBT is manufactured with Fuji's advanced power semiconductor technology, ensuring excellent mechanical stability, thermal conductivity and easy mounting for mass production.

High Current Capacity & Ultra-Low VCE(sat)

Features outstanding high current handling capability and ultra-low saturation voltage VCE(sat), which drastically reduces on-state conduction loss, lowers heat generation and improves overall power conversion efficiency.

Optimized for High-Frequency Operation

Specially designed for high-frequency working conditions, with fast switching speed and low switching loss, perfectly matching the performance requirements of high-frequency power supplies and reducing system stress.

Ideal for PV Inverters & UPS Systems

Widely applied in photovoltaic inverters, uninterruptible power supplies, industrial high-frequency power supplies and other power conversion equipment, delivering stable and reliable performance in renewable energy and backup power scenarios.

Superior Thermal Performance & Reliability

Excellent heat dissipation design and high ruggedness effectively solve common pain points such as overheating, unstable operation and high energy loss, extending service life and enhancing system durability.

Models, Detailed Parameters & Applicable Industries

Model No.	Collector-Emitter Voltage (V_CES, V)	Collector Current (I_C @ 25℃/100℃, A)	Pulse Collector Current (I_CP, A)	Collector-Emitter Saturation Voltage (V_CE(sat), V)	Package	Core Features	Applicable Industries/Scenarios
FGW30XS65	650	30/46	120	1.35-1.5	TO-247	Low conduction loss, low switching surge	PV Inverters, UPS, Inverter Welding Machines, High-Frequency Power Supplies
FGW40XS65	650	40/63	160	1.35-1.5	TO-247	Low power consumption, high reliability	PV Inverters, UPS, Industrial High-Frequency Power Supplies
FGW50XS65	650	50/77	200	1.35-1.5	TO-247	Low switching loss, fast switching speed	PV Inverters, UPS, High-Frequency Power Conversion Equipment
FGW75XS65	650	75/116	300	1.35-1.5	TO-247	High current capacity, excellent thermal stability	PV Inverters, UPS, Large-Scale High-Frequency Power Supplies
FGW75XS65C	650	75/116	300	1.35-1.5	TO-247	Built-in FWD, low noise	PV Inverters, UPS, Inverter Welding Machines
FGZ75XS65C	650	75/116	300	1.35-1.5	TO-247-4	Built-in FWD, 4-pin, low EMI	PV Inverters, UPS, PFC Circuits of High-Frequency Power Supplies
FGW75XS65D	650	75/116	300	1.35-1.5	TO-247-4	Built-in FWD (I_F=I_C/2), superior thermal performance	PV Inverters, UPS, Precision High-Frequency Power Supplies
FGW40XS120C	1200	40/63	160	1.7-1.9	TO-247	High voltage resistance, low switching loss	PV Inverters, UPS, Industrial Inverter Equipment
FGW75XS120C	1200	75/116	300	1.7-1.9	TO-247	High voltage & current resistance, high reliability	PV Inverters, UPS, High-Power High-Frequency Power Supplies

Key Notes

• Models with suffix "C/D" have built-in Free-Wheeling Diode (FWD), suitable for high-frequency inversion and free-wheeling scenarios.

• Models with "FGZ" prefix adopt TO-247-4 package, including an auxiliary emitter pin, which has stronger anti-interference performance.

• Core Advantages: Low V_CE(sat) reduces conduction loss, optimizes high-frequency switching performance, adapts to 20-40kHz high-frequency power supplies, improves overall machine efficiency and reduces heat dissipation pressure.

• Applicable industries focus on new energy, industrial automation and power protection, covering PV inverters, UPS, inverter welding machines and other core fields.

Frequently Asked Questions

Q: Is this XS IGBT a genuine Fuji product?

A: Yes, it's an original Fuji XS series discrete IGBT, with TO-247 package, full brand quality and reliability.

Q: Can I use this IGBT for high-frequency power supplies?

A: Yes. It's specially optimized for high-frequency operation, with low switching loss and fast switching speed.

Q: What's the advantage of low VCE(sat) in actual use?

A: Lower VCE(sat) means less conduction loss, less heat, higher efficiency and better thermal stability.

Q: Is it directly replaceable with other TO-247 IGBTs?

A: It's pin-compatible with most standard TO-247 IGBTs, but always check current and voltage ratings first.

Q: What applications are most suitable for this model?

A: Mainly used in PV inverters, UPS, industrial high-frequency power supplies, and general power conversion.

Q: How about its thermal performance and heat dissipation?

A: TO-247 package has great thermal conductivity; it runs cooler under high load, reducing failure risk.

Q: Do you have stock and what's the lead time?

A: Regular stock is available. Standard orders ship within 3-5 working days, exact time depends on quantity.
