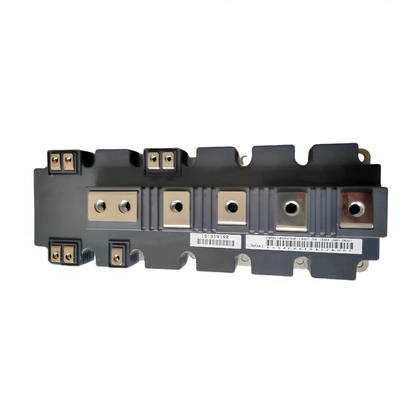

HPnC 1700V 2300V Fuji IGBT Module Renewables Intelligent Power Modules IPM

Name: HPnC 1700V 2300V Fuji IGBT Module Renewables Intelligent Power Modules IPM
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: 2MBI1200XZF170-50/2MBI1500XZF170-50/2MBI1800XZF170-50/2MBI1200XZF230-50/2MBI1200XZF170-S50
Price: 625.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Certification: RoHS、CE

Model Number: 2MBI1200XZF170-50/2MBI1500XZF170-50/2MBI1800XZF170-50/2MBI1200XZF230-50/2MBI1200XZF170-S50

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $50 - $1200

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            2300V Fuji IGBT Module, HPnC 1700V Fuji IGBT Module, Renewables Intelligent Power Modules IPM


Type:	IGBT Moduel	Rated Voltage (V):	1700V、2300V
Rated Current (A):	1200A、1500A、1800A	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	IGBT Moduel
Rated Voltage (V):	1700V、2300V
Rated Current (A):	1200A、1500A、1800A
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

HPnC 1700V 2300V Fuji IGBT Module Renewables Intelligent Power Modules IPM

HPnC 1700V/2300V IGBT Module | 7th Gen X Series, High Power for Renewables

The HPnC 1700V/2300V IGBT Module is a high-power industrial solution built on the 7th Gen X Series chip platform, delivering exceptional performance for large-scale renewable energy systems. Engineered with low conduction and switching losses, high power density, and robust thermal design, it efficiently addresses challenges like high energy consumption, poor heat dissipation, and difficult paralleling in high-power converters. Covering 1700V and 2300V voltage classes, this module is optimized for solar inverters, wind converters, energy storage PCS, and high-voltage industrial drives, ensuring stable operation, long service life, and higher system efficiency for mission-critical new energy applications.

Product Highlights

Adopts 7th-generation X-series core chips, delivering lower power loss and significantly improved system energy efficiency
Boasts industry-leading high power density, achieving up to 1800A high-current output in the same compact package
Features a deeply optimized internal structure, greatly reducing stray inductance and ensuring more stable operation under high-frequency conditions
Combines high thermal conductivity materials with reinforced packaging, offering excellent heat dissipation and dual upgrades in reliability and service life
Modular design for easy paralleling, enabling simple power expansion to meet the demands of MW-class renewable energy installations
Covers both 1700V and 2300V voltage classes, perfectly suited for DC 1000V/1500V inverter applications
Optional SiC hybrid version available, achieving further breakthroughs in switching loss and ideal for high-frequency, high-efficiency applications
Compact and lightweight design reduces equipment size and lowers overall system costs

Model Specifications and Parameters

Parameter	2MBI1200XZF170-50	2MBI1500XZF170-50	2MBI1800XZF170-50	2MBI1200XZF230-50	2MBI1200XZF170-S50 (SiC Hybrid)
Part Number	2MBI1200XZF170-50	2MBI1500XZF170-50	2MBI1800XZF170-50	2MBI1200XZF230-50	2MBI1200XZF170-S50
Package	HPnC	HPnC	HPnC	HPnC	HPnC
Configuration	2-in-1 IGBT	2-in-1 IGBT	2-in-1 IGBT	2-in-1 IGBT	2-in-1 IGBT + SiC SBD
Chip Platform	7th Gen X Series	7th Gen X Series	7th Gen X Series	7th Gen X Series	7th Gen X Series + SiC
Collector-Emitter Voltage (Vces)	1700V	1700V	1700V	2300V	1700V
Collector Current (Ic @ 25℃)	1200A	1500A	1800A	1200A	1200A
Gate-Emitter Voltage (Vge)	±20V	±20V	±20V	±20V	±20V
Typ. Vce(sat) @ Rated Ic	1.6V	1.6V	1.6V	1.7V	1.55V
Freewheeling Diode	X Series PiN Diode	X Series PiN Diode	X Series PiN Diode	X Series PiN Diode	SiC SBD
Operating Junction Temperature (Tj)	-40℃ ~ +150℃	-40℃ ~ +150℃	-40℃ ~ +150℃	-40℃ ~ +150℃	-40℃ ~ +150℃
NTC Thermistor	Built-in	Built-in	Built-in	Built-in	Built-in
Isolation Voltage	2500Vrms	2500Vrms	2500Vrms	2500Vrms	2500Vrms
Typical Application Fields	PV Inverter (DC1000V), Energy Storage PCS, Industrial High-Voltage Power Supply, General High-Voltage Inverter	High-Power PV Power Station, Wind Power Converter, MW-Class Energy Storage System, Heavy Industrial Drive	Large-Scale Wind Power Converter, Three-Level High-Voltage Inverter, MW-Class PV Inverter, Large-Capacity Energy Storage PCS	DC1500V PV Inverter, High-Voltage Energy Storage PCS, 1500V System Three-Level Inverter, Special Industrial Power Supply	High-Frequency Energy Storage PCS, High-Efficiency PV Inverter, High-End Industrial UPS, High-Frequency and High-Efficiency Power Conversion Equipment

Supplementary Instructions: All models adopt standard HPnC package (100mm×144mm×40mm) with easy parallel connection design, suitable for power expansion of MW-class new energy installation. The 2300V model can be directly adapted to DC1500V systems without module series connection, reducing system complexity and cost.

Frequently Asked Questions

Q1: Can HPnC series modules be directly used in 1500V DC PV systems?

A1: Only 2MBI1200XZF230-50 (2300V) is suitable. 1700V models (e.g., 2MBI1200XZF170-50) are for 1000V DC systems; using them in 1500V systems will cause damage.

Q2: What's the difference between the standard model and the SiC hybrid model (-S50)? Which one should I choose?

A2: The -S50 has lower switching loss (30%+ less) and is better for high-frequency devices (e.g., high-efficiency PCS). Choose the standard model for general high-power scenarios (e.g., ordinary PV inverters) to save cost.

Q3: Can I parallel multiple HPnC modules to increase power? Is there any special requirement?

A3: Yes, they are designed for easy paralleling. Just ensure the same model, same batch, and balanced wiring; no additional components are needed.

Q4: Why does the module get overheated easily even if the current is within the rated range?

A4: Mostly due to poor heat dissipation. Check if the heat sink is clean, the thermal grease is sufficient, and the cooling fan (if any) works normally. Avoid installing the module in high-temperature environments (>40℃).

Q5: Do HPnC modules need to be matched with a specific driver board? Can I use the one for Infineon modules?

A5: They need to match Fuji-compatible driver boards. Infineon driver boards have different pin definitions and driving parameters; direct use will cause module failure.

Q6: What should I do if the module is damaged during transportation overseas?

A6: Take photos of the packaging and the damaged module immediately, contact the seller within 48 hours, and provide the waybill number. Most overseas suppliers offer transportation damage compensation with complete evidence.

Q7: Can the module work normally in humid or high-altitude areas (e.g., mountain PV stations)?

A7: Yes, but it needs additional protection. In humid areas, add a moisture-proof cover; in high-altitude areas (above 2000m), reduce the rated current by 10% to avoid insulation breakdown due to low air pressure.

Q8: What's the service life of HPnC modules in overseas industrial scenarios? How to extend it?

A8: Normal service life is 5-8 years. Keep stable voltage/current, regular cleaning of heat sinks, and avoid frequent startup and shutdown to extend service life.

Q9: Where can I get after-sales service for HPnC modules overseas? Is it convenient?

A9: Fuji has after-sales points in major overseas markets (e.g., Europe, North America, Southeast Asia).
