EasyPACK Infineon IGBT Module 600V-1200V 50A 400A Industrial Use

Name: EasyPACK Infineon IGBT Module 600V-1200V 50A 400A Industrial Use
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: EasyPACK™
Price: 85.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Certification: IEC 60747、IEC 60749、IEC 60068、AQG324 、AEC-Q100/AEC-Q101 、ISO 26262 、RoHS、REACH

Model Number: EasyPACK™

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $30 - $140

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            EasyPACK Infineon IGBT Module 600V, Infineon IGBT Module 1200V 1200V, 600V 50A IGBT Module


Type:	IGBT Moduel	Rated Voltage (V):	650V、1200V
Rated Current (A):	50A-75A、100A-400A	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	IGBT Moduel
Rated Voltage (V):	650V、1200V
Rated Current (A):	50A-75A、100A-400A
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

EasyPACK Infineon IGBT Module 600V-1200V 50A 400A Industrial Use

Infineon EasyPACK™ IGBT Module 600V-1200V 50A-400A, Low Loss & Easy Integration for Industrial Use

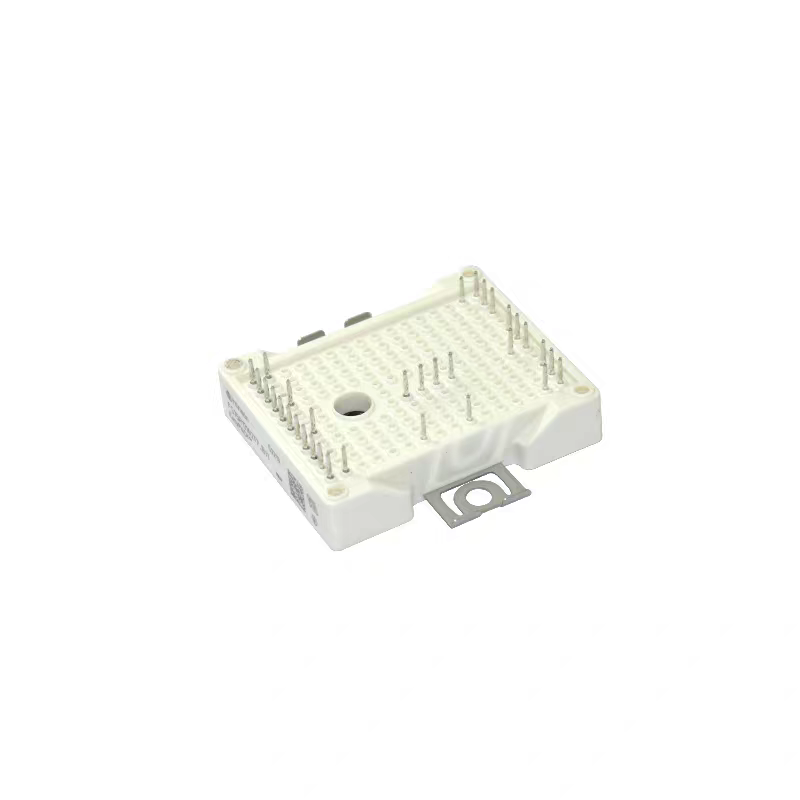

EasyPACK™ IGBT Module

The EasyPACK™ IGBT Module offers a voltage range of 600V-1200V and current range of 50A-400A, delivering high-performance power solutions with low switching losses and simplified design integration. Specifically engineered for industrial applications, these modules provide efficient and convenient power conversion capabilities.

Product Highlights

Low Loss & High Efficiency: Features IGBT7/CoolSiC™ chips that reduce switching losses by 20% and support 175℃ junction temperature, enhancing energy efficiency for industrial and new energy systems.
PressFIT Terminal for Easy Assembly: Eliminates soldering requirements with standard PressFIT crimping, saving installation time. Compact 1B/2B packaging reduces PCB area by 30% for simplified design integration.
Wide Compatibility: 650V-1200V, 50A-400A range makes these modules ideal for inverters, UPS systems, charging piles, and on-board power applications (≤100kW), fitting industrial, automotive, and new energy scenarios.
Certified High Reliability: IEC/AQG324/AEC-Q certified with integrated NTC sensors, offering anti-interference capabilities and durability suitable for harsh working environments, ensuring long-term stable operation.
Cost-Effective Mass Production: Over 70 million units sold, making them the preferred entry-level solution for medium-low voltage applications, reducing time-to-market and lowering R&D and production costs.

Technical Specifications

Parameter Category	Parameter Details	Value	Unit
Voltage Range	Collector-Emitter Voltage (VCES)	600-1200	V
Current Range	Rated Current (IC nom)	50-400	A
Chip Technology	IGBT Chip	IGBT7	-
Packaging Technology	Terminal Type	PressFIT Crimping	-
Insulation Class	AC Insulation	2.5kV/1min	kV/min
Substrate Material	Substrate Material	Aluminum Oxide (Al₂O₃)	-
Topology	Optional Topology	NPC2 (Neutral Point Clamped 2)	-
Temperature Detection	Temperature Sensor	Integrated NTC	-
Application Power	Adaptable Power	≤100kW	kW

Product Models Overview

Product Model	Package Type	Core Technology	Topology	Rated Current	Voltage Specification	Key Features	Applications
FS100R12W2T7_B11_A	EasyPACK™ 2B	IGBT7 - T7	Sixpack	100A	1200V	VCE(sat) 1.5V, PressFIT crimping, low switching loss	Industrial automation, small inverters, motor drives (≤100kW)
F4-50R07W1H3_B11A	EasyPACK™ 1B	IGBT HighSpeed 3	Fourpack	50A	650V	VCE(sat) 1.5V, PressFIT terminals, high-frequency switching	Small UPS, low-voltage inverters, DC power conversion
F4-75R07W1H3_B11A	EasyPACK™ 1B	IGBT HighSpeed 3	Fourpack	75A	650V	VCE(sat) 1.5V, high efficiency, low inductance design	Industrial automation, motor drives, UPS systems
FS50R07W1E3_B11A	EasyPACK™ 1B	IGBT3 - E3	Sixpack	50A	650V	VCE(sat) 1.45V, PressFIT crimping, high stability	Low-voltage inverters, small UPS, charging piles
FS75R07W2E3_B11A	EasyPACK™ 2B	IGBT3 - E3	Sixpack	75A	650V	VCE(sat) 1.45V, standardized packaging, easy integration	Industrial inverters, UPS systems, energy storage
F8-99MR07W1D7_B11/A	EasyPACK 1B	CoolMOS™ CFD7A	Eightpack	-	650V	PressFIT terminals, high power density, compact design	Automotive electronics, EV auxiliary equipment
F4-35MR07W2D7S8_B13/A	EasyPACK 1B	CoolMOS™ CFD7A	Fourpack	-	650V	Shunts and capacitor integration, RoHS compliant	Automotive electronics, DC-DC converters
F4-35MR07W1D7S8_B11/A	EasyPACK 1B	CoolMOS™ CFD7A	Fourpack	-	650V	Integrable with shunts and capacitor, low thermal resistance	Automotive inverters, on-board power supplies
FF08MR12W1MA1_B11A	Easy 1B	CoolSiC™ G1	Half-bridge	-	1200V	SiC material, low switching loss, 5.1kV DC insulation	New energy vehicles, EV DC-DC converters
FS17MR12W2M1H_B11_A	EasyPACK 2B	CoolSiC™ G1	Sixpack	50A (IDN)	1200V	2.5kV AC insulation, low inductance design	EV charging piles, energy storage systems
F4-8MXTR12C2M2Q_H11	EasyPACK™	CoolSiC™ Trench MOSFET	-	75A (IDN)	1200V	3.0kV insulation, integrated NTC temperature sensor	High-frequency switching, DC-DC converters

Frequently Asked Questions

What is the main advantage of EasyPACK™ compared with traditional IGBT modules?

EasyPACK™ uses standardized packaging and PressFIT terminal technology, which simplifies the design and assembly process, and reduces the time and cost of product development and production. The IGBT7 chip reduces switching losses and improves energy efficiency.

Can EasyPACK™ be used in solar inverters?

Yes, EasyPACK™ is suitable for solar inverters with power up to 100kW, and can also be applied to three-level applications and other scenarios, providing reliable power conversion solutions for new energy systems.

How to choose between 650V and 1200V EasyPACK™ modules?

Choose 650V for low-voltage UPS and small inverters; choose 1200V for high-voltage charging piles and new energy storage systems.

What is the difference between EasyPACK™ 1B and 2B packages?

1B is smaller in size, suitable for compact equipment; 2B has stronger current-carrying capacity, more suitable for medium-power motor drives.

Why do some models not mark the rated current (Iₙₒₘ)?

These are MOSFET models, so this parameter is not required. Focus on VDSS and IDN/IDRM parameters, and refer to the datasheet for details.

Do PressFIT terminals require special tools?

Yes, use standard PressFIT crimping tools to ensure stable connection, no soldering required.

Can EasyPACK™ modules be installed in high-temperature environments?

Avoid direct exposure to environments above 150℃; if used in industrial high-temperature scenarios, add heat dissipation components.

How to check if the module is installed correctly?

Confirm that the PressFIT terminals are fully crimped and not loose; test the insulation performance before power-on.

Is EasyPACK™ compatible with ordinary inverters?

Yes, most models are suitable for small and medium-sized inverters (≤100kW), just prioritize matching voltage and current parameters.

Can it be used for electric vehicle charging piles?

Low-power models (50A-75A) are suitable for home charging piles; high-voltage 1200V models are suitable for public fast charging piles.

Can automotive-grade models be used for industrial equipment?

Yes, they have higher stability but also higher cost; choose according to your budget and usage environment.

How often should EasyPACK™ modules be maintained?

Clean dust every 3-6 months; check for loose terminals and overheating once a year.

What causes high switching loss of the module?

It is mainly due to mismatched voltage parameters or poor heat dissipation; adjust the parameters or add heat sinks to improve it.

Can EasyPACK™ directly replace old IGBT modules?

Check the package size, voltage and current; if the parameters match, direct replacement is available.
