                                                                                                                                                                                                            Infineon TRENCHSTOP IGBT, TRENCHSTOP IGBT T5 T6 EDT3, PV Inverter IGBT Module


Type:	IGBT Moduel	Rated Voltage (V):	600-1200
Rated Current (A):	15-320	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	IGBT Moduel
Rated Voltage (V):	600-1200
Rated Current (A):	15-320
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

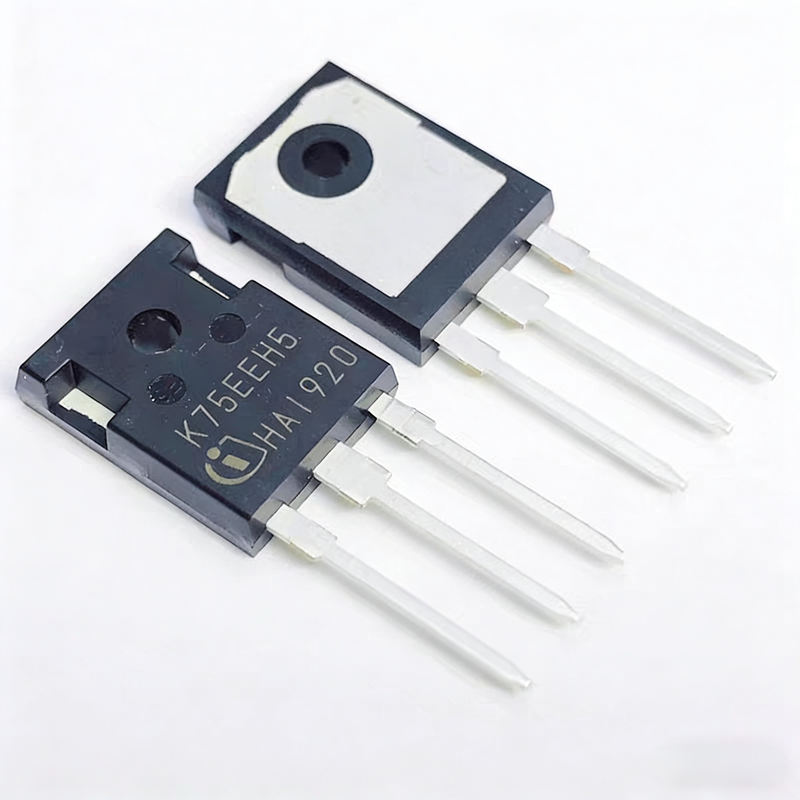

Infineon TRENCHSTOP IGBT T5/T6/EDT3 High Efficiency PV Inverter IGBT Module

Infineon TRENCHSTOP IGBT (T5/T6/EDT3) - High Efficiency, 175-185°C, for PV Inverters & Industrial Drives

TRENCHSTOP IGBT (T5/T6/EDT3)

High Efficiency, 175-185°C, for PV Inverters & Industrial Drives

The Infineon TRENCHSTOP IGBT (T5/T6/EDT3) series delivers high efficiency performance with a wide junction temperature range of 175-185°C for reliable operation in harsh environments. These IGBT modules are ideal for PV inverters and industrial drives, featuring advanced trench-gate and field stop technology that minimizes conduction and switching losses to enhance energy efficiency. Their rugged design and stable performance adapt perfectly to demanding requirements of photovoltaic power generation and industrial drive systems, providing cost-effective and reliable power conversion solutions.

Technical Highlights

Advanced Trench-Gate & Field Stop Architecture: Enhances static/dynamic performance, balances conduction/switching losses for maximum efficiency
Low Loss & High Efficiency: Ultra-low Vce(sat) and optimized diode reduce losses, cutting total switching losses by 7-11% at 8-15kHz
High-Temperature & Rugged: T5/T6 (175°C), EDT3 (185°C) junction temperature, 5µs short-circuit resistance, fits harsh industrial/automotive environments
Low EMI & Easy Design: Low dv/dt (<5V/ns) and gate charge reduce EMI; easy parallel switching simplifies circuit design
Differentiated Performance: T5 (cost-effective industrial), T6 (high-frequency low-power), EDT3 (automotive-grade for EV powertrains)
High Reliability & Versatility: 600V-1200V range, tight parameters, compatible with standard IGBT drivers for flexible design

Product Models & Specifications

Technology Generation	Model Number	Rated Voltage (V)	Rated Current (A)	Package	Key Parameters	Application Fields
TRENCHSTOP™ 5 (T5)	IKW75N65EL5	650	75	TO-247	Typical Vce(sat): 1.1V, Low Qg, Low switching loss	Industrial UPS, PFC circuits, PV inverters, welding machines, hard-switching frequency converters
TRENCHSTOP™ 5 (T5)	IKZ75N65EL5	650	75	TO-247 4pin	Integrated temperature sensor, High short-circuit resistance	Servo drives, Medium-voltage motor control, Industrial power supplies
TRENCHSTOP™ 5 (T5)	IGW50N60T	600	50	TO-247	Typical Vce(sat): 1.5V, Junction temperature: 175°C	General industrial frequency converters, Induction heating equipment
TRENCHSTOP™ 6 (T6)	IKW40N65EH6	650	40	TO-220 FullPAK	Short-circuit withstand time: 3μs, Low Vce(sat), Total loss reduced by 20%	Home appliance motor drives (washing machines/air conditioners), Low-power industrial frequency converters (≤1kW)
TRENCHSTOP™ 6 (T6)	IKQ15N120EH6	1200	15	TO-220	Switching frequency: 8-30kHz, Low EMI	PV string inverters, Small wind power converters, UPS (below 10kVA)
TRENCHSTOP™ EDT3	IGC100T75H12RYA	750	320	Module Package	Junction temperature: 185°C, Low Vce(sat), Low tail current	New energy vehicle traction inverters, On-board auxiliary power supplies, Commercial vehicle motor control
TRENCHSTOP™ EDT3	IGC060T75H12RYA	750	190	Module Package	Integrated gate resistor, Easy to parallel, Automotive grade	Electric vehicle DC-DC converters, Fuel cell air compressors

Core Application Fields

Industrial Sector

Industrial frequency converters, servo drives, UPS, welding machines, induction heating equipment, suitable for metallurgy, mining, chemical industries, etc., highly energy-efficient and reliable.

New Energy Sector

Photovoltaic inverters, wind power grid-connected converters, energy storage PCS, suitable for household/industrial commercial photovoltaic power stations and energy storage systems, reducing losses to enhance power generation efficiency.

Automotive Sector (EDT3 Exclusive)

New energy vehicle traction inverter, DC-DC converter, on-board charger, fuel cell compressor, vehicle-grade quality, extending vehicle range.

Household Appliances & Commercial Applications

Motor drives for household appliances such as air conditioners and washing machines, HVAC systems, small commercial UPS units. These products are compact, low-noise, energy-efficient, and suitable for lightweight design requirements.

Frequently Asked Questions

Q1: Can T5, T6 and EDT3 models be used interchangeably?

A1: No. They have different voltage, current ranges and performance focuses — T5 is for basic industrial scenarios, T6 for high-frequency low-power applications, and EDT3 is automotive-grade. Only replace with the same model.

Q2: Do these IGBTs meet the certification standards of the EU and North American markets?

A2: Yes. All models comply with EU CE certification and North American UL 1557 standards. Just ask your supplier for the certification documents before purchase.

Q3: Why do T5 models sometimes overheat in welding machines?

A3: Mostly because the heatsink is dusty or mismatched. First clean the heatsink; if it still overheats, replace it with one that matches T5's thermal resistance.

Q4: Are T6 models suitable for high-frequency PV inverters?

A4: Yes. T6 models have low electromagnetic interference and a switching frequency of up to 8-30kHz, which is especially suitable for small PV string inverters below 10kW.

Q5: Can EDT3 models be used in non-automotive scenarios?

A5: Technically yes, but not recommended. EDT3 is automotive-grade and more expensive; choose T5 or T6 for industrial and new energy scenarios to save costs.

Q6: What are the common faults of these IGBTs, and how to fix them quickly?

A6: The most common is short-circuit damage (mostly caused by voltage overload). After replacing the IGBT, check if the circuit voltage matches its rated voltage.

Q7: How long is the delivery time for overseas orders?

A7: In-stock models are delivered in 2-4 weeks; out-of-stock models take 6-8 weeks. For urgent needs, contact your local Infineon distributor for consultation.

Q8: Do they need a dedicated driver?

A8: No, they are compatible with most standard IGBT drivers. Just ensure the gate drive voltage matches to avoid damaging the module.

Q9: What is the warranty period for overseas purchases?

A9: 1-year global warranty. For non-human-induced faults, contact the supplier with your order number for free replacement or repair (freight at your own expense).

Q10: Can T5/T6/EDT3 be used in high-temperature outdoor environments?

A10: Yes. T5 and T6 support a junction temperature of 175°C, and EDT3 can reach up to 185°C — all are suitable for harsh outdoor industrial and new energy scenarios.
