                                                                                                                                                                                                            Mitsubishi S1 1.7kV HVIGBT Module, HVIGBT Module Low Loss, 1.7kV IPM Power Module


Type:	IGBT Moduel	Rated Voltage (V):	1700
Rated Current (A):	1200	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	IGBT Moduel
Rated Voltage (V):	1700
Rated Current (A):	1200
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

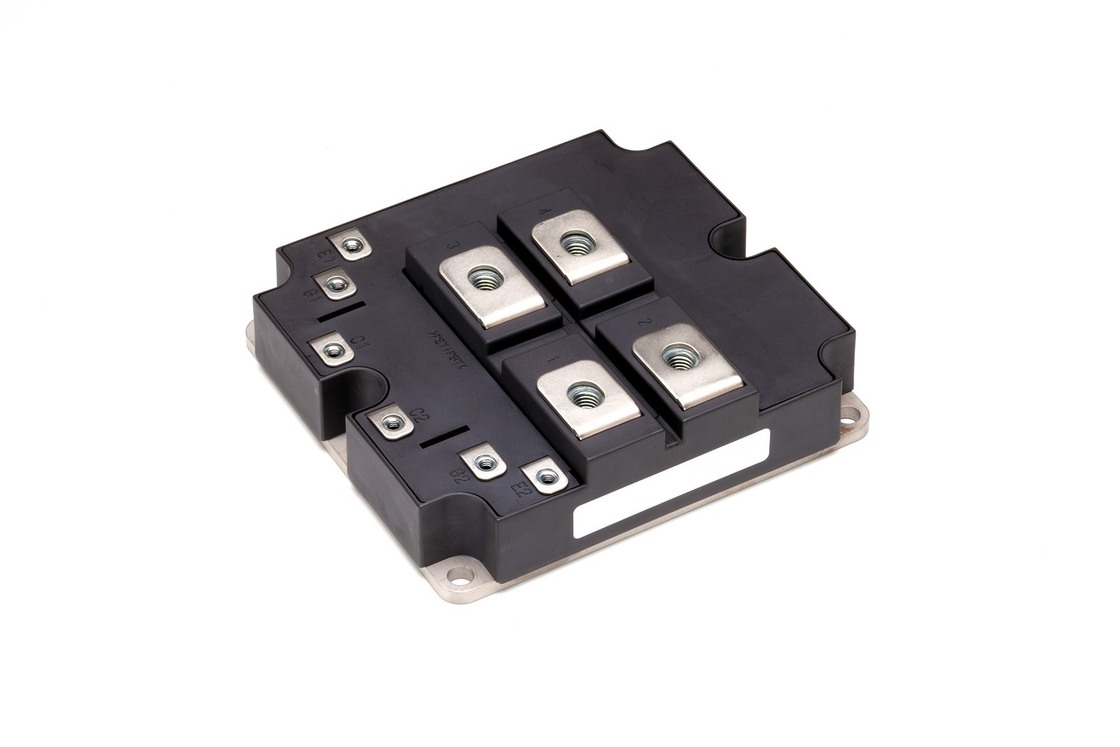

Mitsubishi S1 1.7kV HVIGBT Module Low Loss IPM Power Module For Rail

Mitsubishi S1-Series 1.7kV HVIGBT Module | Low Loss High Reliability for Rail

S1-Series 1.7kV HVIGBT Module

Low Loss High Reliability for Rail Applications

S1-Series 1.7kV HVIGBT modules with RFC Diode & CSTBT chip deliver 2.2x higher RRSOA and low thermal resistance. Engineered for railway traction and HVDC transmission applications, these modules offer easy replacement capabilities.

Core Technical Highlights

2.2x Enhanced Switching Reliability: Proprietary RFC diode boosts RRSOA withstand capacity, eliminating reverse recovery failure during switching operations.
6.0kVrms Reinforced Insulation: 1.5x higher than previous models, prevents insulation failure and short circuits in high-voltage scenarios, supporting multi-topology inverters.
Low Loss & Thermal Resistance: RFC diode + CSTBT chip synergy reduces power loss, minimizes heat generation, and eases thermal management burden.
1.7kV Custom High-Voltage Rating: Tailored for rail traction inverters and HVDC converter valves, ideal for high-voltage/high-power industrial power conversion.
Seamless Drop-In Replacement: Identical external dimensions to existing modules, eliminating installation redesign requirements and reducing retrofit costs and design cycles.
Long-Term Operational Stability: High-reliability core components combined with robust structural design reduce failure and downtime risks while lowering maintenance frequency and O&M costs.
Harsh Condition Adaptability: Optimized structure and materials ensure consistent performance in demanding rail and power infrastructure operating environments.

Product Models & Specifications

Model Number	Core Electrical Parameters	Package Dimensions	Connection Type	Core Features	Target Industry & Applications
CM1200DC-34S1	Rated Voltage: 1.7kV, Rated Current: 1200A Isolation Voltage: 6.0kVrms	130×140×38mm	Dual Module Type	2.2x RRSOA Withstand Capacity, 6.0kVrms Reinforced Insulation, RFC Diode + CSTBT Chip, Direct Drop-In Replacement, Low Loss & Low Thermal Resistance	Rail Transit (Train Traction Inverters), HVDC Transmission (Converter Valves), Large-Scale Industrial Converters
CM1200E4C-34S1	Rated Voltage: 1.7kV, Rated Current: 1200A Isolation Voltage: 6.0kVrms	130×140×38mm	Chopper Type	2.2x RRSOA Withstand Capacity, 6.0kVrms Reinforced Insulation, Chopper Topology Optimization, Low Loss, Direct Drop-In Replacement	Rail Transit (Train Auxiliary Power Supply Systems), HVDC Transmission (Chopper Converters), High-Power Industrial Chopper Equipment
CM1200DC-34S	Rated Voltage: 1.7kV, Rated Current: 1200A Isolation Voltage: 4.0kVrms	130×140×38mm	Dual Module Type	RFC Diode + CSTBT Chip, Direct Drop-In Replacement, Low Loss, Compatible with General High-Voltage Topologies	General Industry (High-Voltage Inverters), HVDC Transmission (Auxiliary Equipment), Industrial High-Power Motor Drives
CM1200E4C-34S	Rated Voltage: 1.7kV, Rated Current: 1200A Isolation Voltage: 4.0kVrms	130×140×38mm	Chopper Type	Chopper Topology Optimization, Low Loss, Direct Drop-In Replacement, Suitable for Medium-Voltage Power Regulation Scenarios	Industrial Power Regulation (Medium-Voltage Chopper Systems), New Energy (PV/Wind Grid-Connected Converters), Industrial Auxiliary Power Regulation Equipment

Application Fields

Rail Transit Industry: Applied to train traction inverters and auxiliary power supply systems, suitable for passenger trains, freight trains and urban rail transit vehicles, ensuring stable and reliable operation.
HVDC Transmission Industry: Used in HVDC converter valves, chopper converters and auxiliary equipment, supporting efficient and stable operation of high-voltage direct current transmission systems.
General Industrial Field: Adapted to high-voltage inverters, industrial high-power motor drives and industrial chopper systems, meeting the needs of high-efficiency power conversion in heavy industry.
New Energy Industry: Applied to PV and wind power grid-connected converters, promoting efficient utilization of clean energy and low-carbon operation.

Frequently Asked Questions

Q1: What industries is the S1-Series mainly used for?

A1: Four core sectors: Rail Transit, HVDC Transmission, General Industry, New Energy.

Q2: What specific applications in the rail transit industry?

A2: Train traction inverters, on-board auxiliary power supply systems, for passenger/freight trains and urban rail transit.

Q3: What HVDC transmission equipment is it suitable for?

A3: Converter valves, chopper converters, and various medium-power auxiliary equipment of transmission systems.

Q4: What main equipment in general industry?

A4: High-voltage inverters, high-power industrial motor drives, medium-voltage chopper power regulation systems; applicable to metallurgy, mining, chemical engineering.

Q5: Can it be used for PV or wind power in new energy?

A5: Both, mainly for grid-connected converters of PV and wind power systems, for power conversion and grid connection.

Q6: Are there application differences between different S1-Series models?

A6: Yes. 6.0kVrms high-insulation models: for core rail transit and HVDC equipment. 4.0kVrms standard-insulation models: for general industrial equipment and new energy grid connection.

Q7: Can the S1-Series be used in special fields like marine and aerospace?

A7: Not recommended. It is designed for land-based high-voltage and high-power scenarios; marine/aerospace need special weather-resistant modules.

Q8: Can it be used for low and medium power equipment?

A8: Not advised. The S1-Series is a 1.7kV/1200A high-voltage and high-power model; other regular Mitsubishi IGBT modules are more suitable for low and medium power.
