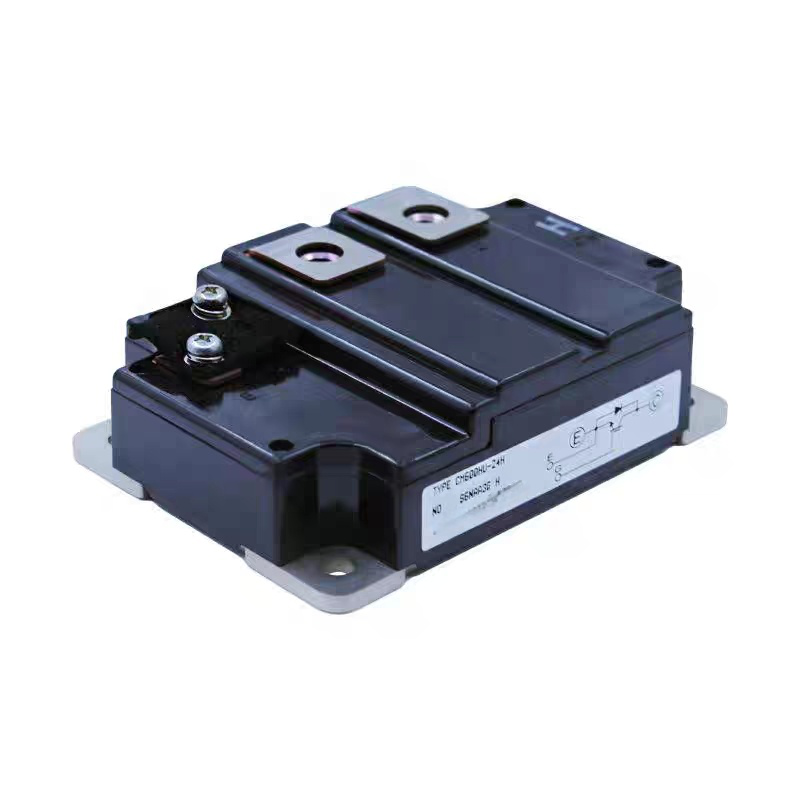

Mitsubishi MPD 6th Gen IGBT Module Low Loss 175℃ Tj For Solar Wind Power Converters

MPD 6th Gen IGBT Module with 175℃ Maximum Junction Temperature, 15% Lower VCE(sat), and 30-50% Reduced Gate Capacitance for Solar Wind Power Converters

MPD 6th Gen IGBT Module

MPD 6th Generation IGBT Modules deliver industry-leading reliability and superior performance for high-power applications. Featuring 15% lower VCE(sat) and 30-50% reduced gate capacitance compared to 5th-generation models, these modules achieve ultra-low conduction and switching losses. The 175℃ maximum junction temperature extends thermal tolerance margins, ensuring stable operation under demanding industrial and renewable energy conditions. With high-isolation and low-inductance package design, these modules offer excellent anti-interference and short-circuit resistance, effectively reducing failure risks and extending system service life.

Technical Specifications & Applications

Model	Technical Parameters	Applications
CM900DUC-24S	Voltage: 1200V; Current: 900A; Isolation: 2500Vrms; Package: 2in1 half-bridge; Max Temp: 175℃; VCE(sat): 1.55V	Small to medium MW-class PV inverters, industrial inverters, low-voltage UPS systems
CM1400DUC-24S	Voltage: 1200V; Current: 1400A; Isolation: 4000Vrms; Package: 2in1 half-bridge; Max Temp: 175℃; VCE(sat): 1.55V	1000V-class MW PV inverters, distributed energy systems, high-capacity motor drives
CM1000DUC-34SA	Voltage: 1700V; Current: 1000A; Isolation: 4000Vrms; Package: 2in1 half-bridge; Max Temp: 175℃; VCE(sat): 1.9V	1500V-class wind power converters, large-scale PV inverters, high-voltage industrial applications
CM2500DY-24S	Voltage: 1200V; Current: 2500A; Isolation: 4000Vrms; Package: 2in1 half-bridge; Max Temp: 175℃; Solderless AI substrate	Large MW PV inverters, wind power parallel units, high-power motor drives, liquid cooling systems
CM1800DY-34S	Voltage: 1700V; Current: 1800A; Isolation: 4000Vrms; Package: 2in1 half-bridge; Max Temp: 175℃	Large-scale wind power converters, 1500V PV inverters, medium-high voltage frequency converters
CM900DUC-24NF	Voltage: 1200V; Current: 900A; Isolation: 4000Vrms; Package: MPD type; Max Temp: 175℃	Direct replacement for 5th gen modules, medium-capacity industrial inverters, small MW PV inverters

Key Features: All models utilize 6th-generation CSTBT chip technology with standardized package sizes for easy installation and replacement, compatible with international industrial specifications.

Primary Application Sectors

Renewable Energy: MW-class photovoltaic inverters, wind turbine converters, distributed energy system power conversion units
Industrial Power Equipment: High-capacity industrial motor drive inverters, medium and high voltage frequency converters, industrial UPS systems
Energy Storage & Grid Equipment: Grid-tied energy storage PCS converters, power grid regulation and conversion devices

Frequently Asked Questions

What voltage and current ratings do MPD series cover?

1200V/1700V voltage, 900A-2500A current, designed for high-capacity power conversion applications.

How is MPD better than Mitsubishi 5th-gen IGBTs in loss?

15% lower VCE(sat) and 30-50% less gate capacitance result in significantly reduced conduction and switching losses.

Can MPD work stably in high-temperature conditions?

175℃ maximum junction temperature provides wide thermal margin for stable operation in harsh high-heat environments.

What are the main applications of the MPD series?

MW-class solar/wind power converters, high-capacity industrial inverters, and UPS systems.

Can MPD modules reduce the number of parallel connections?

Yes, high current rating combined with low loss design enables fewer parallel connections, saving installation space.

What is the isolation voltage of MPD modules?

4000V high isolation provides excellent safety margin for high-voltage power conversion applications.
