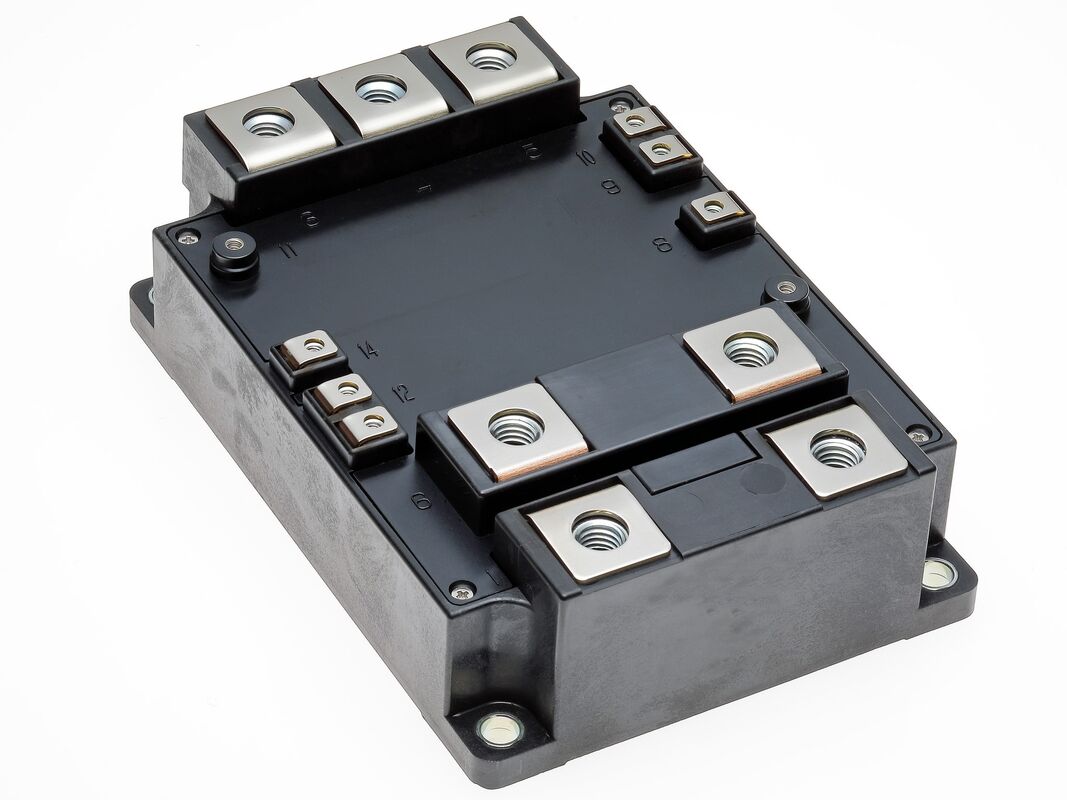

LV100 Mitsubishi IGBT Module 1200V-2000V 800A-1800A IPM Power Module

Name: LV100 Mitsubishi IGBT Module 1200V-2000V 800A-1800A IPM Power Module
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: LV100
Price: 950.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Certification: CE 、RoHS 、UL1557

Model Number: LV100

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $100- $1800

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            LV100 Mitsubishi IGBT Module, Mitsubishi IGBT Module 2000V, 2000V 1800A  IPM Power Module


Type:	IGBT Moduel	Rated Voltage (V):	1200V-2000V
Rated Current (A):	800A-1200A	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	IGBT Moduel
Rated Voltage (V):	1200V-2000V
Rated Current (A):	800A-1200A
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

LV100 Mitsubishi IGBT Module 1200V-2000V 800A-1800A IPM Power Module

Mitsubishi LV100 Series IGBT Module 1200V-2000V 800A-1800A, Low Loss for New Energy PV Wind Energy Storage

LV100 Series IGBT Module

The LV100 Series IGBT Module covers voltage ratings from 1200V to 2000V and current ratings from 800A to 1800A. Featuring low power loss, this series is specifically engineered for new energy applications including photovoltaic systems, wind power generation, and energy storage, delivering reliable and efficient power solutions for industrial applications.

Key Advantages

Ultra-High Current Density: 1800A capability through optimized IGBT/diode chip layout; enhances inverter output power and system scalability
Low Power Loss: 8th Gen SDA1 split-gate and CPL2 deep buffer layer reduce conduction and switching losses by approximately 15%, minimizing energy waste and cooling requirements
Enhanced Reliability: 175°C maximum junction temperature and SLC thermal cycle technology improve durability in demanding renewable energy environments
Flexible System Design: LV100 package enables easy paralleling for multi-capacity inverter configurations; drop-in replacement capability accelerates design cycles
Grid-Ready Performance: Low dv/dt and reduced turn-off surge voltage (via CPL2) ensure grid compatibility and stable operation

Product Models and Specifications

Model	Rated Voltage	Rated Current	Core Technology	Package Specification	Adapted Industries	Typical Application Scenarios
CM800DW-24T	1200V	800A	7th Gen CSTBT™ IGBT + RFC Diode	LV100 (10014440mm)	New Energy Power Generation, Industrial Automation, Power Supply Equipment	String PV Inverters, Industrial UPS, Motor Drives
CM1200DW-24T	1200V	1200A	7th Gen CSTBT™ IGBT + RFC Diode	LV100 (10014440mm)	New Energy Power Generation, Industrial Drives, Power Grid Equipment	Centralized PV Inverters, Medium-Voltage Inverters, SVG
CM1800DW-24ME	1200V	1800A	8th Gen SDA1 Split-Gate + CPL2 Deep Buffer Layer	LV100 (10014440mm)	New Energy Power Generation, Energy Storage Systems, Power Transmission	Large-Scale PV Power Plant Inverters, Energy Storage Converters, 2MW+ Systems
CM800DW-34T	1700V	800A	7th Gen CSTBT™ IGBT + RFC Diode	LV100 (10014440mm)	Industrial Drives, Wind Power, Heavy-Duty Power Equipment	Wind Power Converters, High-Voltage Motor Drives, Industrial Power Supplies
CM800DW-34TA	1700V	800A	7th Gen CSTBT™ IGBT + High Rated Current Free-Wheeling Diode	LV100 (10014440mm)	Wind Power, Industrial Automation	Wind Turbine Side Converters, AFE Rectifiers
CM1200DW-34T	1700V	1200A	7th Gen CSTBT™ IGBT + RFC Diode	LV100 (10014440mm)	Wind Power, Power Grid Equipment, Industrial Drives	Large-Scale Wind Power Converters, STATCOM, High-Voltage Inverters
CM1200DW-40T	2000V	1200A	7th Gen CSTBT™ IGBT + RFC Diode	LV100 (10014440mm)	New Energy Power Generation, Power Grid Transmission	1500Vdc PV Systems, High-Voltage Energy Storage Converters

Application Scenarios

Solar PV Inverters: Central, string, and utility-scale inverters for 1500Vdc/1000Vac systems; maximizes energy yield and system efficiency
Energy Storage Systems (ESS): Grid-tied and off-grid battery inverters; improves charge/discharge efficiency and cycle life
Renewable Hybrid Systems: Wind-solar-battery integration; handles dynamic load changes and grid fluctuations reliably
Industrial Power Supplies: Uninterruptible Power Supplies (UPS) and active front-end (AFE) converters for renewable-powered industrial facilities

Frequently Asked Questions

Are all models of the LV100 series available for global supply? Are there any supply restrictions in some regions?

All 7 listed models support overseas supply, with delivery cycles of 2-4 weeks to Europe and the United States, and 1-2 weeks to Southeast Asia. There are no regional supply restrictions, but customs clearance documents must be prepared according to local regulations.

Can the LV100 module directly replace other series (such as LV50) in old equipment?

No. The LV100 package size (100*144*40mm) differs from the LV50 series. Direct replacement will cause installation mismatch. It is recommended to adjust equipment mounting holes according to LV100 specifications.

What should I do if the module overheats frequently when used in high-temperature regions?

Check for dust blockage on heat sinks and clean regularly. Replace cooling fans with high-speed models matching LV100 power. For extreme temperatures above 45℃, add heat insulation pads between the module and heat sink to reduce heat conduction.

Is after-sales maintenance provided for overseas orders? What is the warranty period?

Global after-sales service is provided with a 1-year warranty period from the date of receipt.

Are there differences in the voltage standards of LV100 modules for different countries?

No differences. All overseas models feature universal voltage design (1200V/1700V/2000V) compatible with most global power grid standards. No manual voltage adjustment is required.

Can LV100 modules be used in parallel? Are there any risks in actual operation?

Yes, all models support parallel connection for high-power system expansion. The main risk is current imbalance—use modules of the same model and batch, and ensure consistent wiring length for each module to avoid local overcurrent.

Why are modules easily damaged when used in wind power scenarios? How to avoid it?

Vibration damage is the primary cause. Choose TA series modules (such as CM800DW-34TA) with reinforced anti-vibration design. Use shock-absorbing mounting brackets during installation to reduce vibration impact.

Are there differences in technical parameters between the overseas version and the domestic version of the LV100?

No differences. Core parameters (rated current, voltage, technology) are identical. The only difference is packaging labels with multi-language instructions for overseas users.
