                                                                                                                                                                                                            6.5kV High Power IGBT Module, 3.3kV High Power IGBT Module, XB Series Mitsubishi IGBT Module


Type:	IGBT Moduel	Voltage:	3.3kV/4.5kV/6.5kV
Rated Current:	750A~1500A	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	IGBT Moduel
Voltage:	3.3kV/4.5kV/6.5kV
Rated Current:	750A~1500A
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

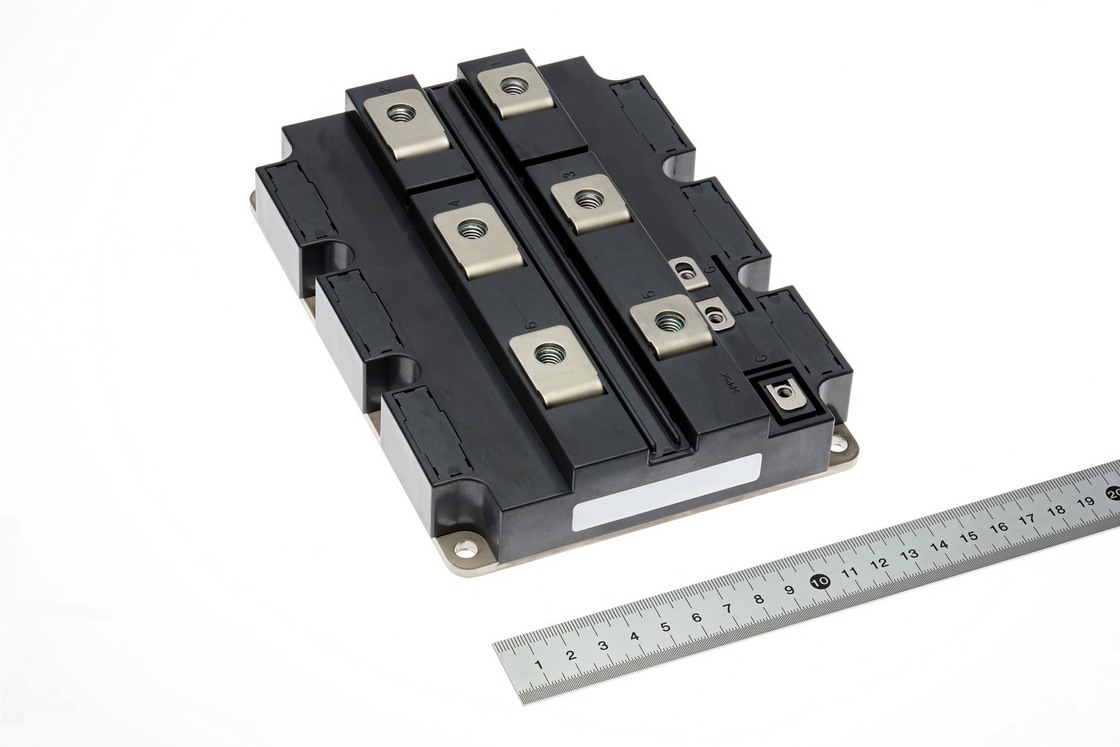

3.3kV 4.5kV 6.5kV High Power IGBT Module XB Series Mitsubishi IGBT Module

XB Series High Power IGBT Module 3.3kV/4.5kV/6.5kV Reliable -40℃~150℃ Compact Single-Tube Package for Rail Transit Industrial Inverter PV

XB Series IGBT Modules

High-power, high-voltage industrial core devices with exceptional reliability, operating at extreme temperatures from -40℃ to 150℃. Designed for rail transit, industrial inverters, and photovoltaic applications.

Core Technical Advantages

Proprietary RFC diode and CSTBT structure reduce switching loss and enhance stability during high-power operation
Optimized chip terminal structure and thickened insulation design provide 20x higher moisture resistance than conventional modules
Compact single-tube package design compatible with previous R series for direct replacement and upgrade

Key Performance Highlights

Reliability: Power cycle life > 10⁵ times, significantly extending service life and reducing maintenance frequency
Temperature Range: Stable operation from -40℃ to 150℃ in extreme industrial environments
Voltage & Current: Covers 3.3kV/4.5kV/6.5kV voltage levels and 750A~1500A rated current with low on-state voltage drop
Insulation Performance: 6.0kVrms (HC package) and 10.2kVrms (HG package) insulation grades for different industrial scenarios

Core Parameter Overview

Model	Voltage Rating	Rated Current	Power Range	Package Type	Insulation Class
CM1500HC-90XB	3.3kV	1500A	Approx. 5MW	Single-tube Module	6.0kVrms
CM1200HC-90XB	4.5kV	1200A	Approx. 5.4MW	Single-tube Module	6.0kVrms
CM1200HG-90XB	4.5kV	1200A	Approx. 5.4MW	Single-tube Module	10.2kVrms

Application Fields

Application Field	Corresponding Model	Voltage Rating	Rated Current	Core Advantages
Rail Transit Traction	CM1500HC-90XB	3.3kV	1500A	15% lower switching loss, 25% expanded RRSOA margin, 20x higher moisture resistance
Industrial Frequency Converter	CM1500HC-90XB	3.3kV	1500A	High power density (5MW), low switching loss, high efficiency
High-voltage Photovoltaic Inverter	CM1200HC-90XB	4.5kV	1200A	Excellent moisture resistance and high efficiency for 1500V systems

Common Questions for Overseas Use

How to choose between 3.3kV and 4.5kV models?

Select based on equipment voltage requirements: 3.3kV for medium-voltage industrial frequency converters and rail auxiliary power supplies; 4.5kV for high-voltage motor drives and HVDC transmission.

HC or HG package for outdoor vs indoor use?

HC standard insulation for indoor dry environments; HG high insulation for outdoor and high-humidity environments to prevent moisture damage.

What about heat dissipation requirements?

All models require forced water cooling. Ensure proper thermal contact with water-cooled plates and maintain thermal resistance around 0.04K/W.
