Original Igus High-Flex Cable & triflex R 3D Energy Chain - Robot Dress Packs
-
Highlight
Igus High-Flex Cable robot dress packs
,Triflex R 3D energy chain
,Industrial switches with warranty
-
System Type3D Energy Chain & Flexible Cable Solutions
-
Flexibility ClassUltra-High Flex (Dynamic Applications)
-
Torsion RatingRobot-Ready (Optimized For Multi-Axis Twist)
-
Cycle LifeGuaranteed Millions Of Cycles Per Installation
-
MaintenanceLubrication-free High-Performance Polymers
-
Brand OriginCologne, Germany (100% Original Igus)
-
Shipping TermInternational Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
-
Freight ChargeFor Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
-
Place of OriginGermany
-
CertificationUL / CSA / CE、Cleanroom / IPA、DESINA
-
Minimum Order Quantity1
-
Price$2 - $30
-
Packaging DetailsOriginal
-
Delivery Time3-5Workdays
-
Payment TermsL/C,D/A,D/P,T/T,Western Union

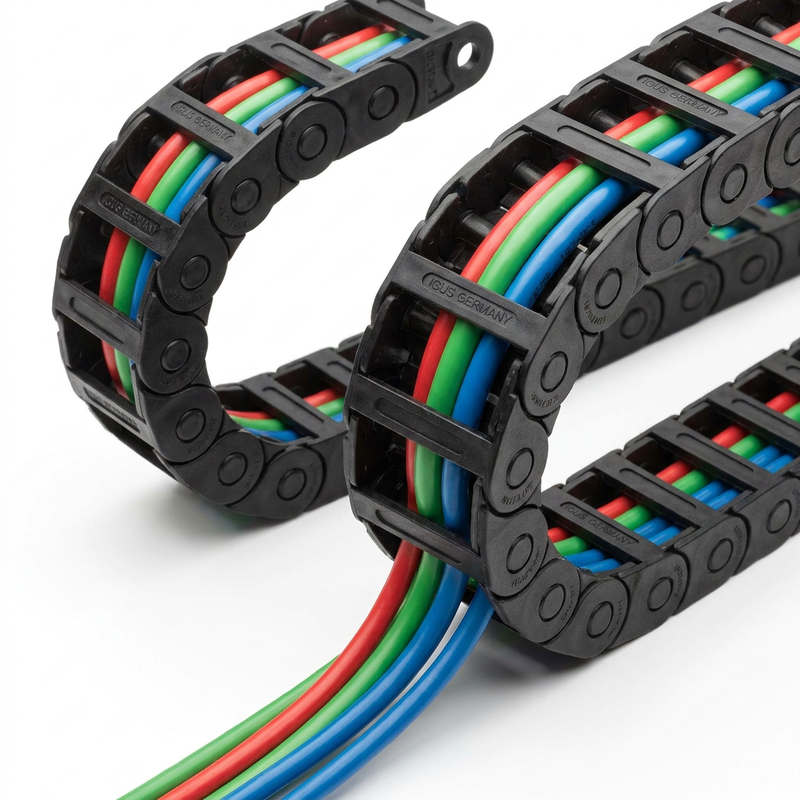

Original Igus High-Flex Cable & triflex R 3D Energy Chain - Robot Dress Packs
Original Igus High-Flex Cable & triflex R 3D Energy Chain - Robot Dress Packs
Igus (Germany) is the undisputed global leader in high-performance polymer energy chains and high-flex cables. In the dynamic world of industrial, collaborative, and humanoid robotics, cables must endure extreme frequencies, tight bending radii, and complex torsional stresses. The Igus triflex ® R series 3D energy chains are specifically designed for multi-axis robots, featuring a unique ball-and-socket modular structure that supports free rotation and torsion in 3D space. When paired with chainflex ® cables--tested for hundreds of millions of cycles--this system ensures stable power and signal transmission under the most demanding conditions, eliminating the risk of downtime caused by cable fatigue or breakage.
Product Highlights
- triflex ® R 3D Freedom of Motion: Specifically engineered for robotic axes 1-6. The ball-and-socket joints allow for a torsion of +/- 10° per chain link, perfectly following complex 3D motion paths.
- Modular & Easy Assembly: The segmented design allows for rapid lengthening or shortening. The "Easy" version (TRE) permits cables to be pressed in directly without dismantling the entire dress pack.
- chainflex ® Ultimate Bend Resistance: Cables feature a high-tensile strength center core and specialized stranded structures, enabling bending radii as small as 4x the diameter with a service life of millions of cycles.
- Torsion-Ready Engineering: Dedicated CFROBOT cables can withstand torsional stresses of up to +/- 360° per meter, specifically optimized for the high-torque movements of 6-axis robot wrists.
- Maintenance-Free & Robust: Made from self-lubricating high-performance polymers that require no oil. Resistant to wear, corrosion, and available in versions for high-vacuum and cleanroom environments.
- i.Sense Smart Monitoring: Optional smart sensors monitor cable wear and energy chain status in real-time, enabling proactive, predictive maintenance before failure occurs.
Core Parameter Table (Key Series)
| Series | Type | Key Features | Min Bending Radius | Torsion Capacity | Typical Application |
|---|---|---|---|---|---|
| triflex ® R TRC | 3D Closed Chain | Fully enclosed, splash-proof | 50mm - 182mm | +/- 10° per link | Heavy-duty 6-axis Robots |
| triflex ® R TRE | 3D Easy Chain | "Easy" press-in design | 50mm - 182mm | +/- 10° per link | Cobots, Rapid Cable Swaps |
| chainflex ® CF9 | TPE Power Cable | Extreme bend radius, oil-res | 5 x d | Standard | Main Power for Axes 1-3 |
| chainflex ® CFROBOT | Torsion Cable | Specialized for robot twisting | 10 x d | +/- 180° / m | Robot Wrists (Axes 4-6) |
| e-chain ® E4.1 | Linear Chain | Modular, quiet, and stable | High Performance | Linear Only | Robot 7th Axis (Linear Track) |
Application Fields

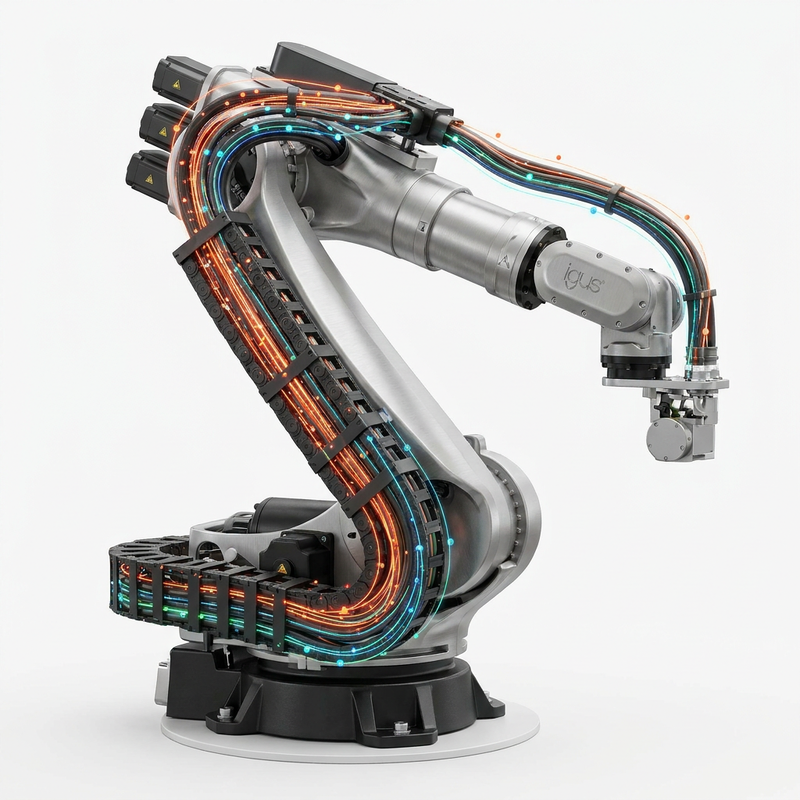

- Standard 6-Axis Industrial Robots: Complete cable management systems (dress packs) from the base to the tool-end.
- Humanoid Robotics: Compact internal wiring and high-frequency torsional power supply for torso and limb joints.
- Collaborative Robots (Cobots): Using the TRE series for simple, aesthetic, and safe external cable protection.
- Robot 7th Axis (Linear Tracks): Long-travel energy chain systems supporting robots moving over long distances.
- Medical & Cleanroom: Low-noise, dust-free cable solutions for surgical robots or laboratory automation equipment.
Frequently Asked Questions
Q: Why can't I use standard drag-chain cables on my robot?
A: Standard cables cannot handle the high-frequency torsion of axes 4-6. Igus chainflex® ROBOT cables have a unique internal structure and jacket material that absorbs torsional stress without creating "corkscrews."
Q: How do you guarantee the cable's lifespan?
A: Igus operates the world's largest test lab for cables, performing over 2 billion test cycles annually. We provide precise life expectancy predictions via our official calculation tools based on your specific application.
Q: How does the triflex ® R achieve "3D movement"?
A: It uses a ball-and-socket joint system similar to a biological spine. This structure allows each link to pivot relative to the next, enabling complex 3D spatial trajectories without mechanical interference.
Q: Are these 100% genuine German products?
A: Yes. we provide original Igus products manufactured in Germany. For specific regions, we can also offer "readychain" services--fully assembled dress packs including connectors and brackets.
Q: How do I choose the right bending radius?
A: Generally, we recommend a bending radius of 7.5x to 10x the largest cable diameter within the chain for an optimal balance between space and longevity.
Q: What is the typical lead time?
A: Standard energy chains and bulk cables ship in 1-2 weeks. Customized, pre-harnessed dress packs typically require 3-5 weeks depending on the configuration.
