Highlight:
                                                                                                                                                                                                            Original SRI force torque sensor, 6-axis high precision sensor, Force torque sensor for humanoid robots


Sensor Type:	6-Axis Multi-Dimensional Force (F/T)	Sensing Core:	High-Stability Strain Gage Technology
Integration:	Compact & Low-Profile (Humanoid Optimized)	Data Output:	Raw Analog / Digital Modules (EtherCAT/CAN)
Industry Focus:	China (100% SRI In-house R&D)	Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

Sensor Type:	6-Axis Multi-Dimensional Force (F/T)
Sensing Core:	High-Stability Strain Gage Technology
Integration:	Compact & Low-Profile (Humanoid Optimized)
Data Output:	Raw Analog / Digital Modules (EtherCAT/CAN)
Industry Focus:	China (100% SRI In-house R&D)
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line

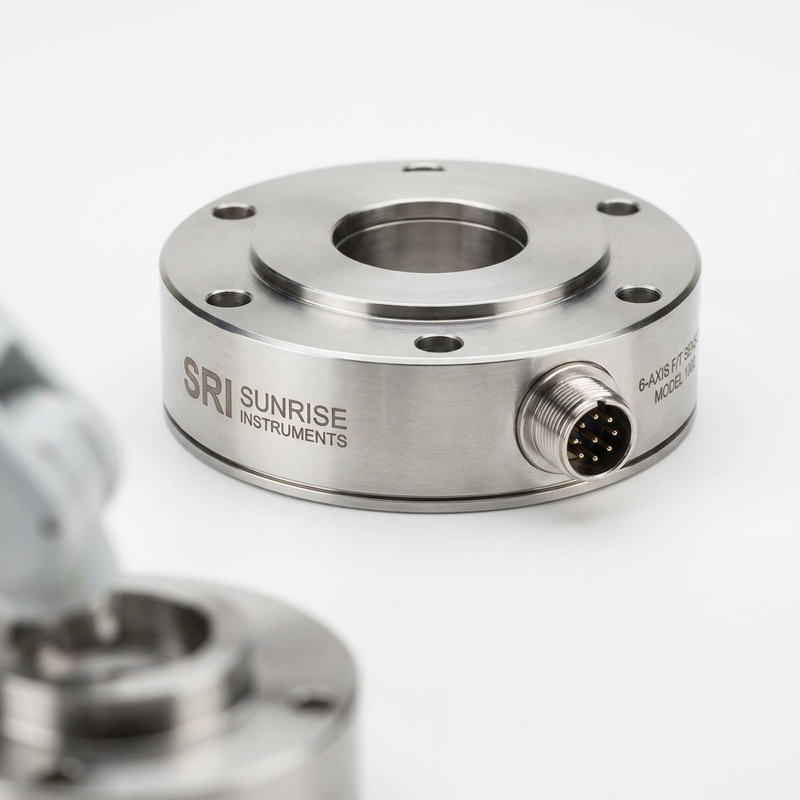

Original SRI 6-Axis Force Torque Sensor - High Precision for Humanoid Robots

Sunrise Instruments (SRI) is a world-leading manufacturer of multi-axis force sensors. Their 6-axis force/torque sensors are specifically engineered for demanding robotic force control tasks. Using advanced strain bridge technology and precision decoupling algorithms, SRI sensors provide real-time calculation of forces and torques across three-dimensional space.

Building on decades of experience in the auto-crash testing industry—where precision is paramount—SRI sensors excel in humanoid robot joint control, intelligent floating grinding, and aerospace testing. SRI has become a strategic partner for major robot manufacturers worldwide by offering high-end performance as a reliable alternative to Western brands.

Product Highlights

Exceptional Cost-Performance: Delivers performance comparable to top international brands at a significantly lower acquisition cost.
Specialized Humanoid Models: Features the M37 and M38 series—ultra-light and low-profile designs optimized for humanoid ankle balance and wrist manipulation.
Superior Decoupling Accuracy: Proprietary static and dynamic calibration algorithms ensure minimal crosstalk and highly reliable measurement data.
Intelligent Integrated Modules: Select models support built-in digital output (EtherCAT, CAN, RS485), providing direct physical units and simplifying integration.
Industry-Wide Versatility: A comprehensive model range spanning from 10mm medical-grade micro-sensors to industrial units with multi-ton capacities.
iGrinder® Smart Ecosystem: Seamlessly integrates with SRI's iGrinder® floating heads for complete closed-loop automated grinding solutions.

Core Parameter Table (Key Series)

Model (Series)	Dia (mm)	Height (mm)	Force Range (Fx, Fy, Fz)	Torque Range (Tx, Ty, Tz)	Typical Application
M37	35 - 50	15 - 20	±200 N to ±1000 N	±10 Nm to ±50 Nm	Humanoid Ankle/Wrist
M38	70 - 110	25 - 35	±500 N to ±2000 N	±50 Nm to ±200 Nm	Cobots, Precision Assembly
M35	15 - 30	10 - 15	±10 N to ±100 N	±0.5 Nm to ±2 Nm	Micro-ops, Bio-engineering
M43	80 - 120	30 - 45	±2000 N to ±8000 N	±200 Nm to ±800 Nm	Auto-crash, Heavy Robots
M33	120+	50+	±10,000 N+	±1,000 Nm+	Wind Power & Aero Testing

Application Fields

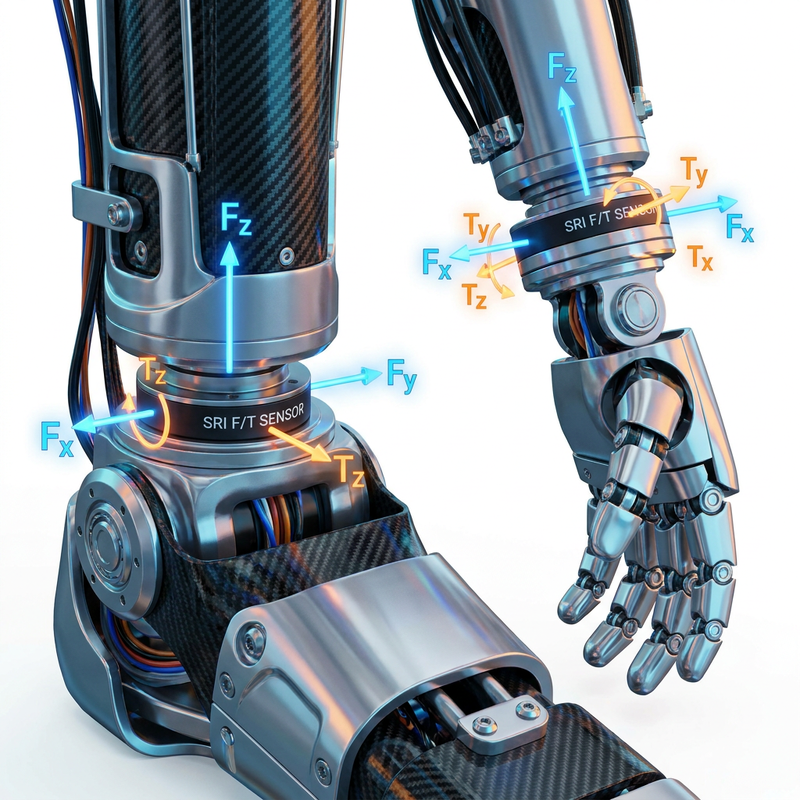

Humanoid Robotics: Foot-end force sensing for gait balance control and tactile feedback for dexterous hand operations.
Intelligent Grinding & Polishing: Used with the iGrinder® system to achieve surface finishing under constant pressure on complex surfaces.
Automotive Crash Testing: Analyzing impact forces on dummy models and vehicle structures (SRI holds a leading global position in this field).
Medical Surgical Assistance: Micro-sensors used in surgical tools to perceive tissue resistance and enhance surgical safety.
Aerospace & Defense: Wind tunnel testing, payload distribution analysis, and space robotic arm docking experiments.

Frequently Asked Questions

Q: What are the advantages of SRI compared to ATI (USA)?

A: SRI offers greater flexibility in range coverage and customization speed, with faster technical response and after-sales support in Asia-Pacific, combined with extreme cost-effectiveness.

Q: Are the products officially calibrated?

A: Yes. Every SRI sensor is calibrated on a professional multi-axis force calibration platform before shipping. An official Calibration Certificate with matrix coefficients is provided.

Q: How do I use SRI sensors in my control system?

A: We provide specialized Interface Boxes supporting major communication protocols. For developers, we also provide SDKs for C++/Python and ROS drivers.

Q: What is the overload capacity?

A: SRI sensors are designed with a safety overload factor of over 300%. During normal use, minor collisions caused by programming errors will not damage the sensor.

Q: What is the typical lead time?

A: Standard industrial series are often in stock or ship within 2-3 weeks. Specialized low-profile models for humanoid robots typically have a lead time of 4-6 weeks.
