                                                                                                                                                                                                                                    THK precision ball screw BNK series, BNT series ball screw for linear actuators, robot actuator ball screw with warranty


Accuracy Grade:	C3 / C5 / C7 (Ground Or Rolled)	Nut Type:	Single Nut / Double Nut (Preloaded)
Shaft Diameter:	4mm - 100mm (Wide Range Support)	Axial Play:	Zero Backlash (via Preload)
End Machining:	Custom Machining Per Drawing	Brand Origin:	Japan (100% Genuine)
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line	Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Accuracy Grade:	C3 / C5 / C7 (Ground Or Rolled)
Nut Type:	Single Nut / Double Nut (Preloaded)
Shaft Diameter:	4mm - 100mm (Wide Range Support)
Axial Play:	Zero Backlash (via Preload)
End Machining:	Custom Machining Per Drawing
Brand Origin:	Japan (100% Genuine)
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (e.g., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

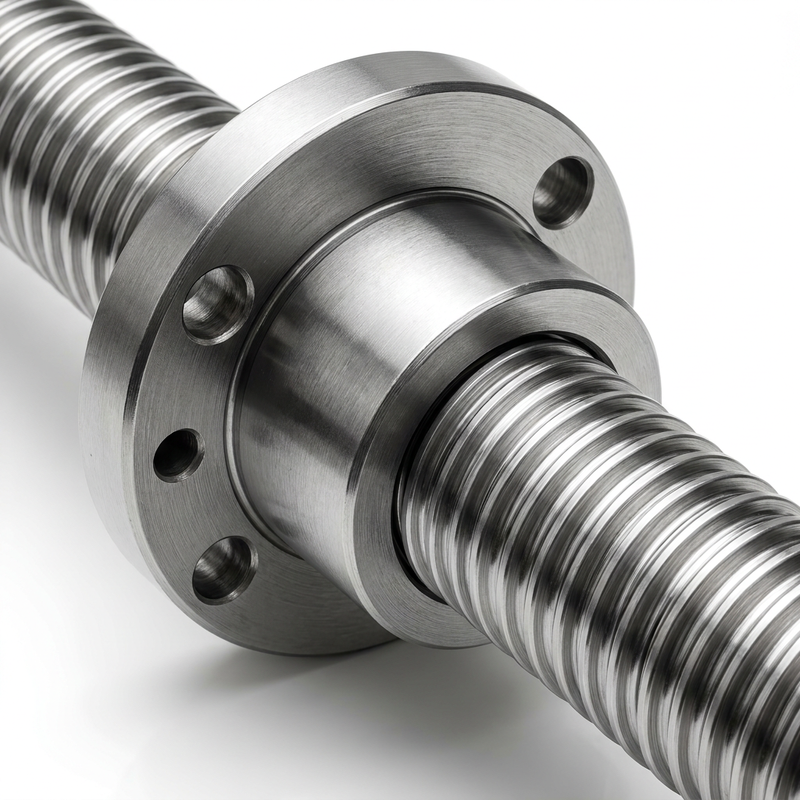

Original THK Precision Ball Screw BNK/BNT Series for Robot Linear Actuators

As the global pioneer of Linear Motion (LM) systems, THK's precision ball screws are the premier choice for achieving high-efficiency, high-frequency linear reciprocating motion. By integrating precision steel balls between the screw and the nut, THK converts sliding friction into rolling friction, reducing resistance to just 1/50th of conventional screws. Known for their superior positioning accuracy, extreme service life, and micrometer-level smoothness, THK ball screws are indispensable components for humanoid robot linear actuators, precision CNC machinery, and semiconductor manufacturing equipment.

Product Highlights

Extreme Transmission Efficiency: Minimal friction loss results in mechanical efficiency exceeding 90%, significantly lowering the power requirements for drive motors.
Micrometer Positioning Accuracy: Manufactured using ultra-precision grinding processes in Japan, ensuring high axial positioning accuracy even during high-speed operation.
Superior Rigidity & Preload Technology: Unique preload adjustments eliminate axial play, providing exceptional transmission rigidity and vibration-free performance.
Exceptional Service Life: Crafted from high-quality alloy steel with specialized induction hardening to ensure minimal wear under long-term, high-load operations.
Low Noise & Smoothness: Optimized ball circulation circuit design ensures quiet and smooth movement, even with large-lead screws at high speeds.
Micro-Design Advantage: Offers miniature series with diameters as small as 4mm, ideal for dexterous humanoid hands and micro-actuators.

Core Parameter Table (Precision Ground Series)

Model (Series)	Shaft Dia (mm)	Lead (mm)	Accuracy Grade	Dynamic Load (kN)	Max Length (mm)
BNK-0802	8	2	C3 / C5	2.1	300
BNK-1205	12	5	C3 / C5	4.6	600
SDM-1510	15	10	C5 / C7	6.8	1000
BIF-2005	20	5	C3 / C5	11.2	1500
BLK-2525	25	25	C5 / C7	14.5	2000

Application Fields

Humanoid Robots: Linear actuators for legs (push-rods), waist support mechanisms, and arm extension devices.
Semiconductor Equipment: Wafer dicing machines, precision dispensers, and AOI inspection stages.
Precision CNC Machines: Small machining centers, CNC grinders, and precision engravers.
Medical Automation: Automated analyzers, surgical bed adjustments, and laboratory liquid handling.
Factory Automation (FA): High-speed Pick & Place robots and integrated electric cylinders.

Frequently Asked Questions

Q: How do you guarantee that THK screws are 100% original Japan-made?

A: We guarantee all THK products are sourced directly from THK Japan or their official global authorized distributors. Each unit includes original markings and anti-counterfeit packaging.

Q: What is the difference between Ground and Rolled screws?

A: Ground screws offer higher precision (C0-C5) for high-accuracy positioning, while Rolled screws (C7-C10) are cost-effective for general transport. C5 or higher ground screws are recommended for robot joints.

Q: Do you offer end machining for the screws?

A: Yes, we provide customized end-machining services based on your drawings, including support-bearing seats, keyways, and threads for immediate installation.

Q: How do I determine the best lead size for my application?

A: Lead determines the relationship between motor speed and linear velocity. Large leads (e.g., 10mm or 20mm) are for high speed; small leads (e.g., 2mm) provide higher thrust and resolution.

Q: Are the screws lubricated upon delivery?

A: THK screws are typically shipped with anti-rust oil. Before use, apply the appropriate amount of THK original grease (e.g., AFA, AFB-LF) according to the manual.

Q: What is the difference between Planetary Screws and Ball Screws?

A: Planetary screws handle extremely high loads for heavy tonnage but are very costly. Ball screws are the optimal balance of cost and precision for typical robotic thrust requirements.
