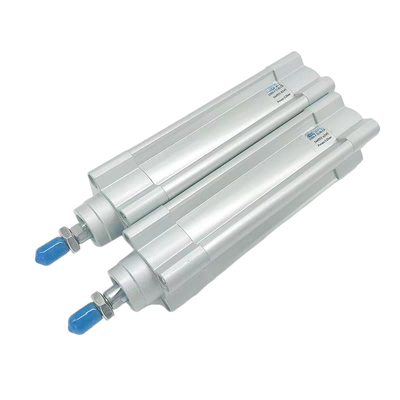

High Precision Standard Cylinders Pneumatic Cylinder Long Life For Automation Lines

Name: High Precision Standard Cylinders Pneumatic Cylinder Long Life For Automation Lines
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: DSBC、DSNU、ADN、ADVUL、DFM、DGST、DGC、DRRD、CLR 、EV 、OEN
Price: 260.00 USD
Availability: InStock

Product Details

Place of Origin: Germany

Certification: CE, RoHS, ATEX, ISO 15552, ISO 6432, UKCA

Model Number: DSBC、DSNU、ADN、ADVUL、DFM、DGST、DGC、DRRD、CLR 、EV 、OEN

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $40 – $480

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            High Precision Standard Cylinders, Pneumatic Cylinder Long Life, Automation Lines Standard Cylinders


Type:	Cylinders	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Cylinders
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

High Precision Standard Cylinders Pneumatic Cylinder Long Life For Automation Lines

Standard Cylinders High Precision Long Life for Automation Lines

Standard Cylinders for Automation Lines

High-precision pneumatic cylinders with stable performance, long service life, and strong durability. Featuring complete specifications and standard universal dimensions for easy replacement. Widely applicable to automotive, 3C electronics, packaging, new energy, and other automated production lines.

Product Series Overview

DSBC Series (ISO 15552 Standard Profile Cylinder)

Model Rule: DSBC-[Bore]-[Stroke]-[Cushion]-[Suffix]

Bore Sizes: 32, 40, 50, 63, 80, 100, 125, 160, 200, 250, 320 mm

Stroke Range: 1-2000 mm

Cushion Options: P, PPS, PPV, PPVA

Available Features: N3, C, E1, E2, E3, EX4

Bore (mm)	Model Example	Thrust (N)	Stroke (mm)	Cushion	Application
32	DSBC-32-50-PPVA-N3	482	1-2000	PPV/PPVA	General automation, light duty
40	DSBC-40-100-PPVA-N3	754	1-2000	PPV/PPVA	Conveying, assembly lines
50	DSBC-50-250-PPVA-N3	1178	1-2000	PPV/PPVA	Packaging, machine tools
63	DSBC-63-300-PPVA-N3	1866	1-2000	PPV/PPVA	Heavy duty conveying
80	DSBC-80-400-PPVA-N3	3017	1-2000	PPV/PPVA	Heavy machinery, automotive
100	DSBC-100-500-PPVA-N3	4713	1-2000	PPV/PPVA	Heavy fixtures
125	DSBC-125-600-PPVA-N3	7363	1-2000	PPV/PPVA	Lifting, metallurgy
160	DSBC-160-800-PPVA-N3	12064	1-2000	PPV/PPVA	Extra heavy duty
200	DSBC-200-1000-PPVA-N3	18850	1-2000	PPV/PPVA	Extra heavy machinery
250	DSBC-250-1200-PPVA-N3	29453	1-2000	PPV/PPVA	Heavy industry
320	DSBC-320-1500-PPVA-N3	48255	1-2000	PPV/PPVA	Maximum load applications

DSNU Series (ISO 6432 Round Cylinder)

Model Rule: DSNU-[Bore]-[Stroke]-[Cushion]-[Suffix]

Bore Sizes: 8, 10, 12, 16, 20, 25, 32, 40, 50, 63 mm

Stroke Range: 1-500 mm

Bore (mm)	Model Example	Thrust (N)	Stroke (mm)	Cushion	Application
8	DSNU-8-10-PPS-A	30	1-200	P/PPS	Micro precision, electronics
10	DSNU-10-25-PPS-A	47	1-300	P/PPS	Small clamping, testing
12	DSNU-12-50-PPS-A	68	1-400	P/PPS	Precision positioning
16	DSNU-16-100-PPS-A	121	1-500	P/PPS	Electronics assembly
20	DSNU-20-150-PPS-A	189	1-500	P/PPS	Food, light industry
25	DSNU-25-200-PPS-A	295	1-500	P/PPS	Small automation
32	DSNU-32-250-PPS-A	482	1-500	P/PPS	Medium applications
40	DSNU-40-300-PPS-A	754	1-500	P/PPS	Assembly, machine tools
50	DSNU-50-400-PPS-A	1178	1-500	P/PPS	Heavy small machines
63	DSNU-63-500-PPS-A	1866	1-500	P/PPS	Medium heavy duty

ADN Series (ISO 21287 Compact Cylinder)

Model Rule: ADN-[Bore]-[Stroke]-[Cushion]-[Suffix]

Bore Sizes: 6, 8, 10, 12, 16, 20, 25, 32, 40, 50, 63, 80 mm

Stroke Range: 1-500 mm

Bore (mm)	Model Example	Thrust (N)	Stroke (mm)	Cushion	Application
6	ADN-6-5-P-A	17	1-100	P	Ultra-compact devices
8	ADN-8-10-P-A	30	1-200	P	Micro clamping
10	ADN-10-20-P-A	47	1-300	P	Precision small systems
12	ADN-12-30-P-A	68	1-400	P	Space-limited assembly
16	ADN-16-50-P-A	121	1-500	P	Compact automation
20	ADN-20-100-P-A	189	1-500	P	Packaging
25	ADN-25-150-P-A	295	1-500	P	General compact use
32	ADN-32-200-P-A	482	1-500	P	Medium compact
40	ADN-40-250-P-A	754	1-500	P	Machine tools
50	ADN-50-300-P-A	1178	1-500	P	Heavy compact
63	ADN-63-400-P-A	1866	1-500	P	Heavy duty
80	ADN-80-500-P-A	3017	1-500	P	Extra heavy compact

Specialized Cylinder Series

Additional specialized series include:

ADVUL Series: Ultra-compact flat cylinders for narrow space applications

DFM Series: Guided drive cylinders with anti-rotation features

DGST Series: Mini slide cylinders with ±0.01 mm repeatability

DGC Series: Rodless cylinders for long-stroke applications

DRRD Series: Rotary cylinders with rack & pinion mechanism

CLR Series: Swing clamp cylinders for fixture applications

EV Series: Diaphragm clamp cylinders for precise clamping

OEN Series: Stainless steel corrosion-resistant cylinders

Application Fields

Automotive Manufacturing: Vehicle assembly, welding fixtures, parts handling

Electronics & 3C Industry: Precision assembly, chip testing, micro handling

Packaging & Printing: Food packaging, beverage filling, sealing, labeling

Food & Beverage: Hygienic conveying, sorting, bottling, cleaning

Pharmaceutical & Medical: Medicine filling, syringe production, cleanroom automation

Logistics & Material Handling: Sorting lines, palletizers, warehouse AGVs

Machine Tools & General Machinery: Metal processing, cutting, loading & unloading

Plastic & Rubber: Injection molding, bottle blowing, extrusion

New Energy: Lithium battery production, photovoltaic manufacturing

Process Industry & Water Treatment: Valve actuation, chemical processing

Installation & Operation Guidance

Common Installation Mistakes

Never force-install cylinders. Align mounting holes properly and ensure coaxiality to avoid eccentric stress. Seal air connections tightly to prevent leaks, and thoroughly clean air lines to keep debris out of the cylinder bore.

Cylinder Cushion Adjustment

Reduce cushion for low-speed/light-load applications, and increase moderately for high-speed/heavy-load use. Fine-tune cushion damping for various environmental conditions including high temperatures, high humidity, and dusty environments to prevent end-impact noise and internal damage.

Compatibility with International Standards

Cylinders themselves are voltage-independent, but matched solenoid valves must fit local voltage standards. Maintain air pressure at approximately 6bar. Always use dry, filtered compressed air for optimal performance.

Maintenance & Troubleshooting

Routine Maintenance Procedures

Regularly clean dust and impurities from cylinder bodies, and inspect air hoses for damage or leaks. Replenish suitable lubricating grease every 3-6 months. In dusty environments, replace filter elements more frequently to prevent jamming.

Lubrication Requirements

Non-lubricated operation is not recommended as it accelerates seal wear. Use neutral pneumatic lubricant only - never substitute with engine oil or grease, which may cause seal swelling and failure.

Troubleshooting Common Issues

For slow movement or insufficient thrust, check air pressure, inspect hoses for blockages, and verify solenoid valve functionality. For abnormal noise, adjust cushion settings and correct load positioning. Regular maintenance prevents most operational issues.
