Product Details
Place of Origin: Germany
Certification: cULus 、UL、CSA、ISO
Model Number: DBS36/50、DBS60、DKS40、DFS60/DFS60B、
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $60 - $1400
Delivery Time: 3-5Workday
Payment Terms: L/C,D/A,D/P,T/T,Western Union
|
Type:
|

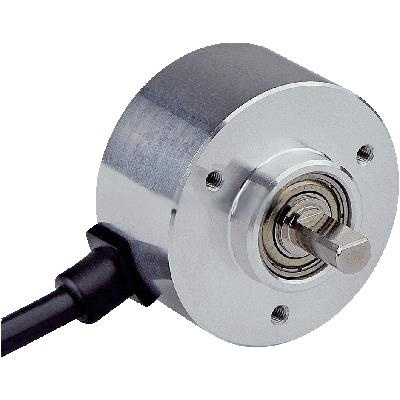

Encoder
|
Warranty:
|
Original Manufacturer's Warranty
|
Pakage:
|
Original Pakage
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
|
Freight Charge:
|
For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
|
Type:
|
Encoder
|
|
Warranty:
|
Original Manufacturer's Warranty
|
|
Pakage:
|
Original Pakage
|
|
Shipping Term:
|
International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
|
|
Freight Charge:
|
For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
|
| Product Series | Overseas Model | Shaft Specification | Resolution | Interface | Power Supply | Protection Class | Operating Temperature | Output Frequency | Connection Type | Applicable Industries |
|---|---|---|---|---|---|---|---|---|---|---|
| DBS36/50 (Compact Standard Type) | DBS36-EA000100 | 6mm (with keyway), servo flange | 100 PPR | TTL/RS-422 | 4.5~5.5V DC | IP65 | -20℃~+85℃ | ≤300kHz | M23 12-pin | Automated production lines, packaging machinery, textile machinery, material handling, small motor feedback |
| DBS36/50 (Compact Standard Type) | DBS50-EA000250 | 8mm, clamping flange | 250 PPR | HTL/Push-Pull | 7~30V DC | IP65 | -20℃~+85℃ | ≤300kHz | M12 8-pin | Automated production lines, packaging machinery, textile machinery, material handling, small motor feedback |
| DBS36/50 (Compact Standard Type) | DBS36E-S3AK00200 | 6mm, clamping flange, 6mm×12mm | 200 PPR | TTL/RS-422 | 4.5~5.5V DC | IP65 | -20℃~+85℃ | ≤300kHz | 8-core cable, 1.5m | Automated production lines, packaging machinery, textile machinery, material handling, small motor feedback |
| DBS60 (Robust Type, Harsh Environment) | DBS60I-WA001000 | 8mm, stainless steel housing | 1000 PPR | TTL/RS-422 | 4.5~30V DC (wide voltage) | IP69K | -40℃~+100℃ | ≤300kHz | M12 8-pin (with deflector shield) | Food and beverage (washing lines), pharmaceuticals, automotive manufacturing, outdoor port machinery, iron and steel metallurgy |
| DBS60 (Robust Type, Harsh Environment) | DBS60-EA005000 | 8mm, aluminum housing | 5000 PPR | HTL/Push-Pull | 4.5~30V DC (wide voltage) | IP67 | -40℃~+100℃ | ≤300kHz | M23 12-pin | Food and beverage (washing lines), pharmaceuticals, automotive manufacturing, outdoor port machinery, iron and steel metallurgy |
| DBS60 (Robust Type, Harsh Environment) | DBS60E-BJFC01024 | 6mm, clamping flange | 1024 PPR | HTL/Push-Pull | 7~30V DC | IP65 | -20℃~+85℃ | ≤300kHz | Cable | Food and beverage (washing lines), pharmaceuticals, automotive manufacturing, outdoor port machinery, iron and steel metallurgy |
| DFS60/DFS60B (High Precision Programmable Type) | DFS60B-S1PK10000 | 6mm, servo flange (6mm×10mm) | 10000 PPR (programmable) | TTL/HTL | 4.5~32V DC | IP67 | -20℃~+100℃ | ≤600kHz | M12 8-pin | Servo drives, robots, printing machinery, woodworking machinery, wind power, high-end automation equipment |
| DFS60/DFS60B (High Precision Programmable Type) | DFS60-A1AK65000 | 8mm, face flange | 65000 PPR (max subdivision, programmable) | Sin/Cos (Sine-Cosine) | 4.5~32V DC | IP65 (shaft side), IP67 (housing) | -20℃~+100℃ | ≤600kHz | M23 12-pin | Servo drives, robots, printing machinery, woodworking machinery, wind power, high-end automation equipment |
| DFS60/DFS60B (High Precision Programmable Type) | DFS60B-BEPK10000 | 6mm, servo flange | 10000 PPR (programmable) | TTL/HTL | 4.5~32V DC | IP67 | -20℃~+100℃ | ≤600kHz | M12 8-pin | Servo drives, robots, printing machinery, woodworking machinery, wind power, high-end automation equipment |
| DLS40 (Economical Compact Type) | DLS40-A5J01024 | 6mm, face flange | 1024 PPR | HTL/Push-Pull | 10~27V DC | IP50 | -10℃~+70℃ | ≤300kHz | Cable | Low-end automation, small machine tools, home appliance manufacturing, simple motor speed monitoring, compact equipment applications |
| DLS40 (Economical Compact Type) | DLS40E-BDGV01000 | 6mm, face flange | 1000 PPR | HTL/Push-Pull | 10~27V DC | IP50 | -10℃~+70℃ | ≤300kHz | Cable | Low-end automation, small machine tools, home appliance manufacturing, simple motor speed monitoring, compact equipment applications |
| DLS40 (Economical Compact Type) | DLS40-A5J00256 | 6mm, face flange | 256 PPR | Open Collector | 10~27V DC | IP50 | -10℃~+70℃ | ≤300kHz | M12 8-pin | Low-end automation, small machine tools, home appliance manufacturing, simple motor speed monitoring, compact equipment applications |
| Product Series | Overseas Model | Shaft Specification | Resolution | Interface | Power Supply | Protection Class | Operating Temperature | Output Frequency | Connection Type | Applicable Industries |
|---|---|---|---|---|---|---|---|---|---|---|
| DBS36/50 (Compact Standard Type) | DBS36-EB000100 | Semi-hollow, 6mm inner diameter, servo flange | 100 PPR | TTL/RS-422 | 4.5~5.5V DC | IP65 | -20℃~+85℃ | ≤300kHz | M12 8-pin | Automated production lines, textile machinery, small motor feedback, packaging machinery (limited installation space) |
| DBS36/50 (Compact Standard Type) | DBS50-EB000500 | Semi-hollow, 8mm inner diameter, clamping flange | 500 PPR | HTL/Push-Pull | 7~30V DC | IP65 | -20℃~+85℃ | ≤300kHz | Cable | Automated production lines, textile machinery, small motor feedback, packaging machinery (limited installation space) |
| DBS36/50 (Compact Standard Type) | DBS36-EB002500 | Semi-hollow, 6mm inner diameter, face flange | 2500 PPR | TTL/RS-422 | 4.5~5.5V DC | IP65 | -20℃~+85℃ | ≤300kHz | M23 12-pin | Automated production lines, textile machinery, small motor feedback, packaging machinery (limited installation space) |
| DFS60B (High Precision Programmable Type) | DFS60B-S1BK05000 | Semi-hollow, 6mm inner diameter, servo flange | 5000 PPR (programmable) | TTL/RS-422 | 4.5~32V DC | IP67 | -20℃~+100℃ | ≤600kHz | M12 8-pin (supports remote zero setting) | Servo drives, robots, high-end automation equipment, printing machinery (high precision requirements) |
| DFS60B (High Precision Programmable Type) | DFS60B-B1BK02000 | Semi-hollow, 8mm inner diameter, face flange | 2000 PPR (programmable) | HTL/Push-Pull | 4.5~32V DC | IP67 | -20℃~+100℃ | ≤600kHz | Cable | Servo drives, robots, high-end automation equipment, printing machinery (high precision requirements) |
| DFS60B (High Precision Programmable Type) | DFS60B-S1CK08000 | Semi-hollow, 6mm inner diameter, servo flange | 8000 PPR (programmable) | Sin/Cos | 4.5~32V DC | IP67 | -20℃~+100℃ | ≤600kHz | M23 12-pin | Servo drives, robots, high-end automation equipment, printing machinery (high precision requirements) |
| Product Series | Overseas Model | Shaft Specification | Resolution | Interface | Power Supply | Protection Class | Operating Temperature | Output Frequency | Connection Type | Applicable Industries |
|---|---|---|---|---|---|---|---|---|---|---|
| DBS36/50 (Compact Standard Type) | DBS36-EC000100 | Blind hollow shaft, 6mm inner diameter, face flange | 100 PPR | TTL/RS-422 | 4.5~5.5V DC | IP65 | -20℃~+85℃ | ≤300kHz | M12 8-pin | Material handling, conveyor systems, small motor feedback, textile machinery, packaging machinery |
| DBS36/50 (Compact Standard Type) | DBS50-EC001000 | Blind hollow shaft, 8mm inner diameter, clamping flange | 1000 PPR | HTL/Push-Pull | 7~30V DC | IP65 | -20℃~+85℃ | ≤300kHz | Cable | Material handling, conveyor systems, small motor feedback, textile machinery, packaging machinery |
| DBS36/50 (Compact Standard Type) | DBS36-EC002500 | Blind hollow shaft, 6mm inner diameter, servo flange | 2500 PPR | TTL/RS-422 | 4.5~5.5V DC | IP65 | -20℃~+85℃ | ≤300kHz | M23 12-pin | Material handling, conveyor systems, small motor feedback, textile machinery, packaging machinery |
| DBS60 (Robust Type, Harsh Environment) | DBS60-EC001000 | Through hollow shaft, 10mm inner diameter, aluminum housing | 1000 PPR | TTL/RS-422 | 4.5~30V DC (wide voltage) | IP67 | -40℃~+100℃ | ≤300kHz | M12 8-pin | Food and beverage (washing lines), automotive manufacturing, iron and steel metallurgy, outdoor port machinery, pharmaceuticals |
| DBS60 (Robust Type, Harsh Environment) | DBS60I-WC005000 | Through hollow shaft, 15mm inner diameter (insulated), stainless steel housing | 5000 PPR | HTL/Push-Pull | 4.5~30V DC (wide voltage) | IP69K | -40℃~+100℃ | ≤300kHz | Cable (with deflector shield) | Food and beverage (washing lines), automotive manufacturing, iron and steel metallurgy, outdoor port machinery, pharmaceuticals |
| DBS60 (Robust Type, Harsh Environment) | DBS60E-BJFC01024 | Blind hollow shaft, 8mm inner diameter, clamping flange | 1024 PPR | HTL/Push-Pull | 7~30V DC | IP65 | -20℃~+85℃ | ≤300kHz | Cable | Food and beverage (washing lines), automotive manufacturing, iron and steel metallurgy, outdoor port machinery, pharmaceuticals |
| DFS60/DFS60B (High Precision Programmable Type) | DFS60B-BHPK10000 | Through hollow shaft, 15mm inner diameter, face flange | 10000 PPR (programmable) | TTL/HTL | 5~32V DC | IP65, IP67 | -20℃~+100℃ | ≤600kHz | M12 8-pin | Servo drives, robots, wind power, printing machinery, high-end automation equipment, woodworking machinery |
| DFS60/DFS60B (High Precision Programmable Type) | DFS60-A1CK05000 | Through hollow shaft, 10mm inner diameter, face flange | 5000 PPR (programmable) | Sin/Cos | 4.5~32V DC | IP65 (shaft side), IP67 (housing) | -20℃~+100℃ | ≤600kHz | M23 12-pin | Servo drives, robots, wind power, printing machinery, high-end automation equipment, woodworking machinery |
| DFS60/DFS60B (High Precision Programmable Type) | DFS60B-BEPK10000 | Blind hollow shaft, 10mm inner diameter, face flange | 10000 PPR (programmable) | TTL/HTL | 4.5~32V DC | IP67 | -20℃~+100℃ | ≤600kHz | Cable | Servo drives, robots, wind power, printing machinery, high-end automation equipment, woodworking machinery |
| DGS80 (Large Hollow Shaft Type) | DGS80-EC002048 | Through hollow shaft, 30mm inner diameter | 2048 PPR | TTL/RS-422 | 5~30V DC | IP65 | -25℃~+85℃ | ≤300kHz | M12 8-pin | AC motor feedback, printing, scanning, elevator speed control, wood and metal industries, mechanical engineering |
| DGS80 (Large Hollow Shaft Type) | DGS80-EC008192 | Through hollow shaft, 42mm inner diameter | 8192 PPR | HTL/Push-Pull | 5~30V DC | IP65 | -25℃~+85℃ | ≤300kHz | M23 12-pin | AC motor feedback, printing, scanning, elevator speed control, wood and metal industries, mechanical engineering |
| DGS80 (Large Hollow Shaft Type) | DGS80-EC004096 | Through hollow shaft, 30mm inner diameter | 4096 PPR | TTL/RS-422 | 5~30V DC | IP65 | -25℃~+85℃ | ≤300kHz | Cable | AC motor feedback, printing, scanning, elevator speed control, wood and metal industries, mechanical engineering |
