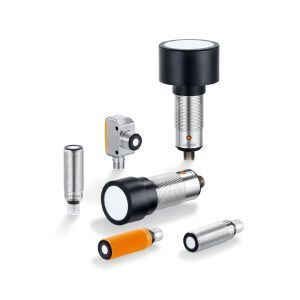

IP67 IFM Ultrasonic Sensor Level & Distance Measurement Sensor
-
Highlight
IP67 IFM Ultrasonic Sensor
,Level & Distance Measurement Sensor
,IP67 Distance Measurement Sensor
-
TypeIndustrial Sensors And Controls
-
WarrantyOriginal Manufacturer's Warranty
-
PakageOriginal Pakage
-
Shipping TermInternational Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
-
Freight ChargeFor Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote
-
Place of OriginGermany
-
CertificationISO、ATEX、EHEDG、FDA、Ecolab、EN 62061、EN ISO 13849-1
-
Model NumberUGT、UIT
-
Minimum Order Quantity1
-
Price$120 - $620
-
Delivery Time3-5Workday
-
Payment TermsL/C,D/A,D/P,T/T,Western Union
IP67 IFM Ultrasonic Sensor Level & Distance Measurement Sensor
Ultrasonic Sensor with High Accuracy IP67 Non-Contact Detection for Industrial Automation
Ultrasonic Sensor Overview
Ultrasonic Sensors provide reliable non-contact detection and measurement unaffected by object color, transparency, or surface characteristics. These industrial-grade sensors feature wide detection ranges, intuitive setup via teach-in button or IO-Link, and flexible output configurations for seamless integration with various control systems.
Key Features & Benefits
- Non-contact detection: Stable and reliable measurement unaffected by object color, transparency, or surface features
- Wide detection range: Suitable for long-distance and large-range level/distance measurement applications
- Intuitive setup: Quick adjustment of detection range via teach-in button or IO-Link interface
- Flexible output configuration: Programmable switching outputs plus adjustable analog outputs for compatibility with various control systems
- Clear status indication: High-visibility LED indicators for switching status and echo signal monitoring
- Industrial-grade stability: High protection rating (IP67/IP69K), resistant to dust, moisture, and oil for long-term operation in harsh environments
Product Series Comparison
| Series | Model | Core Parameters | Applications & Industries |
|---|---|---|---|
| UGT Series (M18 Size) | UGT200 | Diffuse reflection; 40-300mm range; DC power; PNP output; M12 connector; M18×1 housing | Electronics manufacturing, packaging, logistics sorting; object detection and short-distance positioning |
| UGT201 | Diffuse reflection; 60-800mm range; DC power; PNP output; M12 connector; M18×1 housing | Food & beverage packaging, silo monitoring, electronic component assembly | |
| UGT202 | Diffuse reflection; 80-1200mm range; DC power; PNP output; M12 connector; M18×1 housing | Logistics, automotive parts, printing equipment; medium/long-distance positioning | |
| UGT209 | Diffuse reflection; 40-300mm range; DC power; NPN output; M12 connector; M18×1 housing | Industrial automation, small equipment; short-distance detection with NPN systems | |
| UGT210 | Diffuse reflection; 60-800mm range; DC power; NPN output; M12 connector; M18×1 housing | Mechanical processing, tank monitoring, packaging lines; medium range with NPN systems | |
| UGT211 | Diffuse reflection; 80-1200mm range; DC power; NPN output; M12 connector; M18×1 housing | Warehousing, conveyor lines, building materials; long-distance with NPN systems | |
| UGT212 | Diffuse reflection; 40-300mm range; DC power; PNP output; M12 connector; M18×1 housing | Electronics, precision assembly, packaging; precision short-distance detection | |
| UGT213 | Diffuse reflection; 60-800mm range; DC power; PNP output; M12 connector; M18×1 housing | Food & beverage, pharmaceutical, silos; medium range level monitoring | |
| UGT214 | Diffuse reflection; 80-1200mm range; DC power; PNP output; M12 connector; M18×1 housing | Automotive, logistics, packaging; medium/long-distance positioning | |
| UGT203 | Diffuse reflection; 150-1600mm range; DC 10-30V; 2-way PNP output; IO-Link; IP67 | Industrial automation, silo monitoring, AGV navigation; remote parameter setting | |
| UGT300 | Diffuse reflection; 50-400mm range; DC 10-30V; PNP/NPN output; IO-Link; stainless steel | Food & beverage, pharmaceutical, chemical; IO-Link configuration | |
| UGT301 | Diffuse reflection; 50-400mm range; DC 10-30V; PNP/NPN + 4-20mA analog; IO-Link | Chemical, water treatment, tanks; continuous measurement with analog signals | |
| UGT302 | Diffuse reflection; 50-400mm range; DC 10-30V; PNP/NPN + 0-10V analog; IO-Link | Electronics, chemical, automation; precision detection with 0-10V signals | |
| UGT303 | Diffuse reflection; 100-1000mm range; DC 10-30V; 2-way PNP/NPN; IO-Link; IP67 | Logistics, building materials, packaging; medium/long-distance positioning | |
| UGT304 | Diffuse reflection; 100-1000mm range; DC 10-30V; PNP/NPN + 4-20mA; IO-Link | Water treatment, environmental, silos; long-range continuous measurement | |
| UGT305 | Diffuse reflection; 100-1000mm range; DC 10-30V; PNP/NPN + 0-10V; IO-Link | Precision manufacturing, automation, environmental; precision continuous detection | |
| UGT500-529 | Various models with 40-1200mm ranges; DC power; PNP/analog outputs; M12 connector | Electronics, food & beverage, pharmaceutical, logistics; various detection applications | |
| UIT Series (M30 All-Metal) | UIT300 | Diffuse reflection; 250-2500mm range; DC 10-30V; PNP/NPN output; IO-Link; stainless steel | Chemical, pharmaceutical, food & beverage; long-range level monitoring in harsh conditions |
| UIT301 | Diffuse reflection; 250-2500mm range; DC 10-30V; PNP/NPN + 4-20mA; IO-Link; stainless | Chemical, water treatment, environmental; long-range continuous measurement | |
| UIT302 | Diffuse reflection; 250-2500mm range; DC 10-30V; PNP/NPN + 0-10V; IO-Link; stainless | Precision chemical, pharmaceutical, environmental; precision continuous measurement | |
| UIT507 | Diffuse reflection; 50-2000mm range; DC power; IP67; stainless steel; ±1% accuracy | Food/agricultural, chemical, pharmaceutical, biotechnology; multi-industry applications |
Frequently Asked Questions
Can this ultrasonic sensor detect clear plastic or glass bottles?
Yes, it works perfectly. Unlike photoelectric sensors, it's not affected by object color, transparency, or surface gloss.
How to quickly set the detection distance?
Use the teach button on the sensor directly, or set it via IO-Link from the control system—no complex software required.
Will dust, water mist or oil fumes affect the measurement?
No. Designed for harsh industrial environments, it won't have false triggers or unstable readings due to dust, humidity, or light oil mist.
What outputs does it have? Is it compatible with my PLC?
It comes with programmable switching outputs and adjustable analog outputs (0-10V / 4-20mA), compatible with most standard PLCs.
How to check if the sensor is working properly?
Bright LEDs indicate power supply, switching status and echo quality. You can also check the status in real time via IO-Link.
Is the response speed fast enough for packaging lines?
It has a fast response time, ideal for packaging, filling and conveyor lines that require quick detection.
Can it be used for level measurement in tanks or silos?
Yes, it's widely used for liquid and bulk material level monitoring in tanks, hoppers and silos.
What's the protection rating and operating temperature range?
Protection rating IP67 / IP69K, operating temperature usually -25°C to +70°C, stable in most industrial environments.
Does it need frequent calibration?
Normally not. Once set up, it maintains stable measurement for long-term use.
Can it replace the photoelectric sensor on my production line?
Yes, in many cases—especially when photoelectric sensors fail on dark, shiny, or transparent targets.
