E4E2 E4PA Omron Ultrasonic Sensor High Precision Strong Anti Interference

Name: E4E2 E4PA Omron Ultrasonic Sensor High Precision Strong Anti Interference
Brand: Shanghai Fradwell Industrial Automation Co., Ltd.
SKU: E4C、E4B、E4E2、E4PA、 E4A/E4R 、
Price: 105.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Certification: CE、RoHS 、ATEX 、UKCA、UL、 FDA、CSA、NOM、RCM 、KC、KOSHA

Model Number: E4C、E4B、E4E2、E4PA、 E4A/E4R 、

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $10- $200

Delivery Time: 3-5Workday

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            E4PA Omron Ultrasonic Sensor, E4E2 Omron Ultrasonic Sensor, Omron Ultrasonic Sensor High Precision


Type:	Industrial Sensors And Controls	Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage	Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

Type:	Industrial Sensors And Controls
Warranty:	Original Manufacturer's Warranty
Pakage:	Original Pakage
Shipping Term:	International Express（DHL/FEDEX/TNT/UPS/ARAMEX）/Sea Freight / Air Freight / International Special Line
Freight Charge:	For Industrial Equipment (E.G., PLC Modules, Inverters..), Shipping Cost Varies By Package Weight/Volume And Delivery Location. Contact Our Sales Team For A Customized Shipping Solution And Quote

E4E2 E4PA Omron Ultrasonic Sensor High Precision Strong Anti Interference

Omron Ultrasonic Sensor | High Precision, Strong Anti-Interference for Industrial Automation & Logistics Level Sensing

Ultrasonic Sensor

High Precision, Strong Anti-Interference for Industrial Automation & Logistics Level Sensing

This ultrasonic sensor delivers high-precision non-contact detection with strong anti-interference performance, ensuring stable and reliable operation even in harsh industrial environments. It is widely used in industrial automation and logistics applications, providing accurate level sensing, positioning, and distance measurement for various materials and working conditions.

Key Features

High Precision Sensing: Millimeter-level repeatability ensures stable and reliable measurement for industrial automation and logistics level sensing applications.
Strong Anti-Interference: Advanced signal processing and mutual interference suppression enable stable output even in dense sensor setups, oil, dust, or harsh industrial environments.
Non-Contact Detection: Unaffected by object color, transparency, or material; reliably detects transparent bottles, films, metals, and non-metals.
Industrial-Grade Durability: IP67 protection, wide operating temperature range, and long service life reduce maintenance costs and improve uptime.
Easy Integration: Supports teach-in setup, analog/digital outputs, and seamless integration with AGVs, packaging lines, and warehouse automation systems.

Product Series & Specifications

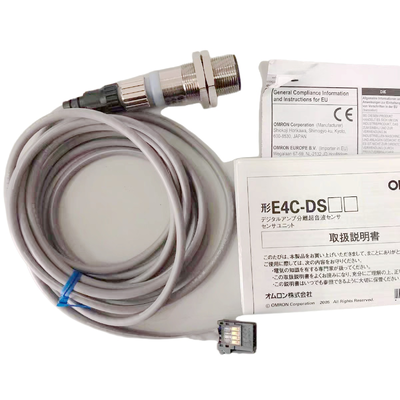

E4C Series (Cylindrical, Amplifier Separate/Built-in)

Type	Model	Key Notes
Reflective Probe	E4C-DS30, E4C-DS30L, E4C-DS80, E4C-DS80L, E4C-DS100	E4C-DS30: 300mm detection range; E4C-DS80: 800mm; E4C-DS100: 1000mm; M18 size, IP67 protection
Amplifier Unit	E4C-UDA11, E4C-UDA11AN, E4C-UDA41, E4C-UDA41AN	Analog/switch output, NPN/PNP, compatible with E4C probes
Special Models	E4C-WH4T, E4C-TS50	Suitable for specific working conditions, with temperature compensation

E4B Series (Ultrasonic Switch, Reflective/Through-Beam)

Type	Model	Key Notes
Reflective Type	E4B-LS20E4, E4B-LS50E4, E4B-LS70E4, E4B-TS50E4, E4B-TS50RF4	Detection range 200mm-7000mm, small beam angle, suitable for powder/liquid level detection
Through-Beam Type	E4B-T1E4, E4B-T1SE4, E4B-T1F4	Through-beam distance up to 1000mm, strong anti-interference
Others	E4B-RS70E4	Long-distance reflective type, suitable for logistics and warehousing

E4E2 Series (Compact Built-in Amplifier)

Model	Key Notes
E4E2-TS50C1, E4E2-TS50C2, E4E2-TS50C12M, E4E2-TS50TC1, E4E2-TS50RC1	Detection range 50mm-500mm, IP64 protection, compact vertical design, suitable for transparent objects

E4PA Series (Displacement Sensor, Analog Output)

Model	Key Notes
E4PA-LS50-M1-N, E4PA-LS200-M1-N, E4PA-LS400-M1-N, E4PA-LS600-M1-N	Detection range 50mm-6000mm, 4-20mA/0-10V output, IP65 protection, temperature calibration
E4PA-N Series	Various suffixes available, suitable for different detection ranges and output requirements

E4A/E4R Series (Long-Distance/Through-Beam)

Model	Key Notes
E4A-3K	Maximum 3m for reflective type, maximum 1m for through-beam type, IP66 protection
E4R-□ Series	Through-beam type, maximum detection distance up to 5m, IP67 protection, suitable for long-distance unobstructed scenarios

Other Series (Special Purpose/Obsolescence Reference)

Model	Key Notes
E3U-GLU1	Ultrasonic label sensor, suitable for transparent/metallized labels
Some models of E4A-3K, E4R	Obsolete, for replacement reference only

Core Application Industries

Industrial Automation: Robot arm obstacle avoidance, workpiece positioning/displacement detection, equipment linkage triggering, and material counting on assembly lines.
Automotive Manufacturing: Body component assembly inspection, weld positioning, component dimension verification, and adaptation for warehouse material storage and retrieval.
Logistics & Warehousing/Smart Logistics: AGV navigation and obstacle avoidance, pallet positioning, detection of presence/absence of materials on shelves, stacking height control, and parcel sorting and counting.
Food & Beverage: Tank level monitoring, PET bottle/transparent container positioning, packaging sealing inspection, and material supply reminders on production lines.
Packaging Machinery: Film tension adaptation detection, presence/absence identification of packages, transparent packaging positioning, and auxiliary inspection of sealing integrity.
Semiconductor/Electronic Manufacturing: Chip/component displacement detection, wafer handling positioning, precision component assembly calibration, suitable for clean room working conditions.
Chemical Industry/Water Treatment: Chemical raw material level monitoring (suitable for detection near corrosive environments), sewage tank level control, and pipeline material flow detection.
Building Materials/Mining: Powder level detection (e.g., cement, sand and gravel), material stacking height measurement, and presence/absence monitoring of materials on conveyor lines.
General Manufacturing: Detection of transparent/dark/metal workpieces, material detection in harsh environments (dust/oil pollution), and auxiliary equipment safety protection.

Frequently Asked Questions

Q: Can it detect transparent objects like glass or plastic bottles?

A: Yes, ultrasonic sensors work well with transparent materials; color/transparency doesn't affect detection.

Q: Does it work in dusty/oily environments?

A: Yes, IP67-rated models handle dust, oil mist, and moisture common in factories.

Q: What's the typical detection range?

A: Most models cover 50mm-5m; check specs for exact distance and blind zone.

Q: Can multiple sensors work side by side?

A: Yes, Omron has anti-interference functions to avoid cross-talk between nearby units.

Q: What output signals are available?

A: Common options: NPN/PNP switching, analog 4-20mA or 0-10V for PLC integration.

Q: How to set it up quickly?

A: Use teach-in buttons or software to set detection distance; no complicated calibration needed.

Q: Does temperature affect accuracy?

A: Built-in temperature compensation keeps measurement stable in changing workshop conditions.

Q: Can it replace a photoelectric sensor?

A: Often better for level sensing, dusty areas, or transparent targets; photoelectric is faster for small parts.

Q: What's the average lifespan?

A: 5-10 years under normal industrial use; longer than many mechanical switches.

Q: Is it compatible with Siemens/Allen‑Bradley PLCs?

A: Yes, standard NPN/PNP/analog outputs work with most PLC brands with basic wiring.
