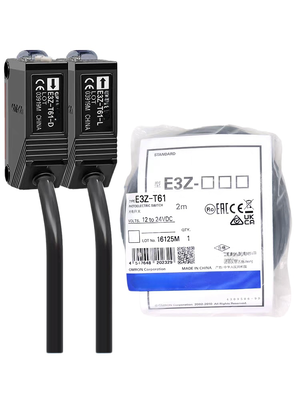

Anti Interference Omron Photoelectric Sensor IP67 For 3C & Lithium Battery Lines

Photoelectric Sensor with IP67 Protection for Fast Response and Stable Detection in 3C & Lithium Battery Lines

Photoelectric Sensor OverviewPhotoelectric Sensors feature IP67 dust and water resistance with strong anti-interference performance. With fast response speeds matching high-speed production lines, these sensors achieve stable and accurate detection without false triggering. Specially adapted for precision detection scenarios in 3C electronics and lithium battery manufacturing industries, they effectively solve on-site detection instability and environmental interference challenges.

Key Product Features

IP67 protection with strong anti-interference capability, stable operation across ultra-wide temperature ranges
TOF technology for accurate detection, eliminating false triggering
One-click teaching for easy optical alignment and simplified installation & debugging
Multiple circuit protection with long-life core components for low maintenance costs
Multiple types and outputs, fully adapted to 3C, lithium battery, and other production lines

Complete Model Specifications

E3Z Series (General-Purpose Compact Type)

Model	Detection Type	Key Specifications	Output Type	Applicable Industries
E3Z-T61	Through-beam	Max detection distance 40m; Response time ≤1ms; IP67; Red LED; -40℃~+55℃	NPN	3C Electronics, Lithium Battery, Logistics Sorting
E3Z-T81	Through-beam	Max detection distance 40m; Response time ≤1ms; IP67; Red LED; -40℃~+55℃	PNP	3C Electronics, Lithium Battery, Logistics Sorting
E3Z-T66	Through-beam	Max detection distance 40m; Connector type; IP67; Red LED; -40℃~+55℃	NPN	Automated Assembly Lines, Material Handling
E3Z-T86	Through-beam	Max detection distance 40m; Connector type; IP67; Red LED; -40℃~+55℃	PNP	Automated Assembly Lines, Material Handling
E3Z-R61	Retro-reflective	Max detection distance 4m; MSR function; IP67; Red LED; -40℃~+55℃	NPN	Packaging Machinery, Printing Equipment
E3Z-R81	Retro-reflective	Max detection distance 4m; MSR function; IP67; Red LED; -40℃~+55℃	PNP	Packaging Machinery, Printing Equipment
E3Z-R66	Retro-reflective	Max detection distance 4m; Connector type; MSR function; IP67; -40℃~+55℃	NPN	Food Processing, Pharmaceutical Packaging
E3Z-R86	Retro-reflective	Max detection distance 4m; Connector type; MSR function; IP67; -40℃~+55℃	PNP	Food Processing, Pharmaceutical Packaging
E3Z-D61	Diffuse-reflective	Max detection distance 1m; IP67; Red LED; -40℃~+55℃	NPN	Small Parts Inspection, Electronic Component Assembly
E3Z-D81	Diffuse-reflective	Max detection distance 1m; IP67; Red LED; -40℃~+55℃	PNP	Small Parts Inspection, Electronic Component Assembly
E3Z-D66	Diffuse-reflective	Max detection distance 1m; Connector type; IP67; -40℃~+55℃	NPN	Consumer Electronics Manufacturing
E3Z-D86	Diffuse-reflective	Max detection distance 1m; Connector type; IP67; -40℃~+55℃	PNP	Consumer Electronics Manufacturing
E3Z-B66	Transparent Object Detection	Specialized for transparent bottles/films; IP67; -40℃~+55℃	NPN	Beverage Packaging, Plastic Film Production
E3Z-B86	Transparent Object Detection	Specialized for transparent bottles/films; IP67; -40℃~+55℃	PNP	Beverage Packaging, Plastic Film Production
E3Z-G61	Slot Type	Slot width 5mm; No light axis adjustment; IP67; -40℃~+55℃	NPN	Small Component Positioning, Automation Equipment
E3Z-G81	Slot Type	Slot width 5mm; No light axis adjustment; IP67; -40℃~+55℃	PNP	Small Component Positioning, Automation Equipment

E3ZG Series (High-Performance Compact Type)

Model	Detection Type	Key Specifications	Output Type	Applicable Industries
E3ZG-T61	Through-beam	TOF technology; Anti-glare interference; Max 40m; Response ≤1ms; IP67; -40℃~+55℃	NPN	3C Precision Assembly, Automotive Electronics
E3ZG-T81	Through-beam	TOF technology; Anti-glare interference; Max 40m; Response ≤1ms; IP67; -40℃~+55℃	PNP	3C Precision Assembly, Automotive Electronics
E3ZG-R61	Retro-reflective	TOF technology; Max 5m; Anti-interference; IP67; -40℃~+55℃; One-click teaching	NPN	Lithium Battery Pole Piece Inspection, Solar Panel Production
E3ZG-R81	Retro-reflective	TOF technology; Max 5m; Anti-interference; IP67; -40℃~+55℃; One-click teaching	PNP	Lithium Battery Pole Piece Inspection, Solar Panel Production
E3ZG-D61	Diffuse-reflective	TOF technology; Transparent object detection; Max 3m; IP67; -40℃~+55℃	NPN	Transparent Film Processing, Glass Manufacturing
E3ZG-D81	Diffuse-reflective	TOF technology; Transparent object detection; Max 3m; IP67; -40℃~+55℃	PNP	Transparent Film Processing, Glass Manufacturing
E3ZG-T61-L	Through-beam	Long cable (5m); TOF technology; Max 40m; IP67; -40℃~+55℃	NPN	Large-scale Logistics, Heavy Industry
E3ZG-T81-L	Through-beam	Long cable (5m); TOF technology; Max 40m; IP67; -40℃~+55℃	PNP	Large-scale Logistics, Heavy Industry

E3ZM Series (Stainless Steel Oil-Resistant Type)

Model	Detection Type	Key Specifications	Output Type	Applicable Industries
E3ZM-D67	Diffuse-reflective	IP67+ oil-resistant; SUS316L housing; Response ≤1ms; -40℃~+55℃; Anti-cutting oil	NPN	Automotive Manufacturing, Machining
E3ZM-D87	Diffuse-reflective	IP67+ oil-resistant; SUS316L housing; Response ≤1ms; -40℃~+55℃; Anti-cutting oil	PNP	Automotive Manufacturing, Machining
E3ZM-R66	Retro-reflective	IP67+ oil-resistant; Max 4m; SUS316L housing; -40℃~+55℃	NPN	Metal Stamping, Cutting Oil Environments
E3ZM-R86	Retro-reflective	IP67+ oil-resistant; Max 4m; SUS316L housing; -40℃~+55℃	PNP	Metal Stamping, Cutting Oil Environments
E3ZM-B66-C	Transparent Object Detection	IP67+ oil-resistant; SUS316L housing; Transparent/reflective object detection; -40℃~+55℃	NPN	Chemical Industry, Plastic Product Processing
E3ZM-B86-C	Transparent Object Detection	IP67+ oil-resistant; SUS316L housing; Transparent/reflective object detection; -40℃~+55℃	PNP	Chemical Industry, Plastic Product Processing
E3ZM-C61	General-purpose	IP67+ oil-resistant; SUS316L housing; Max 2m; Response ≤1ms; -40℃~+55℃	NPN	Food & Beverage, Harsh Industrial Environments
E3ZM-C81	General-purpose	IP67+ oil-resistant; SUS316L housing; Max 2m; Response ≤1ms; -40℃~+55℃	PNP	Food & Beverage, Harsh Industrial Environments

E3Z Laser Series (High-Precision Laser Type)

Model	Detection Type	Key Specifications	Output Type	Applicable Industries
E3Z-LT61	Through-beam	Class 1 laser; Max 60m; Accuracy ±1mm; IP67; -40℃~+55℃; Anti-environmental light	NPN	Semiconductor Wafer Inspection, High-Precision Positioning
E3Z-LT81	Through-beam	Class 1 laser; Max 60m; Accuracy ±1mm; IP67; -40℃~+55℃; Anti-environmental light	PNP	Semiconductor Wafer Inspection, High-Precision Positioning
E3Z-LR61	Retro-reflective	Class 1 laser; Max 20m; Accuracy ±1mm; IP67; -40℃~+55℃	NPN	Photovoltaic Module Production, Electronic Circuit Board Inspection
E3Z-LR81	Retro-reflective	Class 1 laser; Max 20m; Accuracy ±1mm; IP67; -40℃~+55℃	PNP	Photovoltaic Module Production, Electronic Circuit Board Inspection
E3Z-LL61	Diffuse-reflective	Class 1 laser; Max 5m; Accuracy ±1mm; IP67; -40℃~+55℃	NPN	Precision Mechanical Processing, Small Part Detection
E3Z-LL81	Diffuse-reflective	Class 1 laser; Max 5m; Accuracy ±1mm; IP67; -40℃~+55℃	PNP	Precision Mechanical Processing, Small Part Detection

E3FA/E3FB Series (M18 Cylindrical Type)

Model	Detection Type	Key Specifications	Output Type	Applicable Industries
E3FA-TN11	Through-beam	Max 20m; M18 threaded mounting; Response ≤0.5ms; IP67; -40℃~+55℃	NPN	Machine Tool Loading/Unloading, Material Conveying
E3FA-TP11	Through-beam	Max 20m; M18 threaded mounting; Response ≤0.5ms; IP67; -40℃~+55℃	PNP	Machine Tool Loading/Unloading, Material Conveying
E3FB-RN11	Retro-reflective	Max 10m; M18 threaded mounting; IP67; -40℃~+55℃; Adjustable sensitivity	NPN	Warehousing Logistics, Automated Storage Systems
E3FB-RP11	Retro-reflective	Max 10m; M18 threaded mounting; IP67; -40℃~+55℃; Adjustable sensitivity	PNP	Warehousing Logistics, Automated Storage Systems
E3FA-DN11	Diffuse-reflective	Max 2m; M18 threaded mounting; IP67; -40℃~+55℃	NPN	Automotive Parts Production, Construction Machinery
E3FA-DP11	Diffuse-reflective	Max 2m; M18 threaded mounting; IP67; -40℃~+55℃	PNP	Automotive Parts Production, Construction Machinery

E3JK Series (AC/DC Universal Type)

Model	Detection Type	Key Specifications	Output Type	Applicable Industries
E3JK-TN11	Through-beam	Max 40m; AC/DC 24-240V; Red visible light; IP65; -25℃~+55℃	Relay	General Industrial Lines, Building Materials Processing
E3JK-TP11	Through-beam	Max 40m; AC/DC 24-240V; Red visible light; IP65; -25℃~+55℃	NPN	General Industrial Lines, Building Materials Processing
E3JK-RN11	Retro-reflective	Max 7m; AC/DC 24-240V; Adjustable sensitivity; IP65; -25℃~+55℃	Relay	Agricultural Machinery, Mining Equipment
E3JK-RP11	Retro-reflective	Max 7m; AC/DC 24-240V; Adjustable sensitivity; IP65; -25℃~+55℃	NPN	Agricultural Machinery, Mining Equipment
E3JK-DN11	Diffuse-reflective	Max 3m; AC/DC 24-240V; Red visible light; IP65; -25℃~+55℃	Relay	Home Appliance Manufacturing, Consumer Electronics
E3JK-DP11	Diffuse-reflective	Max 3m; AC/DC 24-240V; Red visible light; IP65; -25℃~+55℃	NPN	Home Appliance Manufacturing, Consumer Electronics

E3AS Series (Long-Range TOF Type)

Model	Detection Type	Key Specifications	Output Type	Applicable Industries
E3AS-HF11	TOF Diffuse-reflective	0.1-10m detection distance; Unaffected by color/material; IO-Link v1.1; IP67; -40℃~+55℃	NPN/PNP	Warehouse AS/RS, Large Cargo Logistics
E3AS-HF12	TOF Diffuse-reflective	0.1-10m detection distance; Unaffected by color/material; IO-Link v1.1; IP67; -40℃~+55℃	NPN/PNP + IO-Link	Warehouse AS/RS, Large Cargo Logistics, Port Freight

EE Series (Miniature Photoelectric Switches)

Model	Detection Type	Key Specifications	Output Type	Applicable Industries
EE-SX1320	Transmissive (SMD)	Slot width 3mm; -25℃~+55℃; IP50; SMD mounting; Photo transistor	Photo transistor	Consumer Electronics, Medical Devices
EE-SX1330	Transmissive (SMD)	Slot width 3mm; -25℃~+55℃; IP50; SMD mounting; Photo transistor	Photo transistor	Consumer Electronics, Medical Devices
EE-SX4320	Transmissive (SMD)	Slot width 3mm; -25℃~+55℃; IP50; SMD mounting	PNP	Small Automation Equipment, Electronic Instruments
EE-SX4330	Transmissive (SMD)	Slot width 3mm; -25℃~+55℃; IP50; SMD mounting	NPN	Small Automation Equipment, Electronic Instruments
EE-SPX303N	Transmissive (Connector)	Slot width 13mm; Modulated light; IP50; -25℃~+55℃; Connector mounting	NPN	Electronic Component Manufacturing, Assembly Robots
EE-SPX403N	Transmissive (Connector)	Slot width 13mm; Modulated light; IP50; -25℃~+55℃; Connector mounting	NPN	Electronic Component Manufacturing, Assembly Robots
EE-SX952	Transmissive (Pre-wired)	Standard cable 1m; Robot cable available; IP50; -25℃~+55℃	NPN	Industrial Robots, Precision Machinery
EE-SX953	Transmissive (Pre-wired)	Standard cable 1m; Robot cable available; IP50; -25℃~+55℃	PNP	Industrial Robots, Precision Machinery

Other Series (Miniature & Special-Purpose)

Model	Detection Type	Key Specifications	Output Type	Applicable Industries
E3T-FD11	Diffuse-reflective	Miniature plastic housing; Max 0.3m; Response ≤1ms; IP67; -40℃~+55℃	NPN	Small Electronic Devices, Wearable Equipment
E3T-FD21	Diffuse-reflective	Miniature plastic housing; Max 0.3m; Response ≤1ms; IP67; -40℃~+55℃	PNP	Small Electronic Devices, Wearable Equipment
E3H2-DS30	Diffuse-reflective	M8/M12 miniature; Max 0.3m; Easy installation; IP67; -40℃~+55℃	NPN	Automotive Electronics, Smart Home Devices
E3H2-DS30P	Diffuse-reflective	M8/M12 miniature; Max 0.3m; Easy installation; IP67; -40℃~+55℃	PNP	Automotive Electronics, Smart Home Devices
E3T-C21	Through-beam	M5/M6 ultra-small; Max 5m; IP67; -40℃~+55℃	NPN	Microelectronics, Precision Sensors
E3T-C22	Through-beam	M5/M6 ultra-small; Max 5m; IP67; -40℃~+55℃	PNP	Microelectronics, Precision Sensors

Frequently Asked Questions

What's the difference between through-beam and diffuse-reflective types?

Through-beam detects up to 40m with best anti-interference performance; diffuse-reflective requires no reflector and is designed for short-distance (≤3m) close detection applications.

Can it work in high dust/oil environments?

Yes, IP67 protection provides dust and water resistance, making these sensors suitable for workshop and battery production harsh environments.

Why does false detection happen sometimes?

Most false detections result from light axis misalignment or strong ambient light interference. Properly align the light axis and utilize the anti-interference mode to resolve this issue.

Is it compatible with NPN and PNP PLCs?

Most models (E3Z/E3ZG series) support both NPN and PNP output configurations, eliminating the need to replace sensors when switching between different PLC types.

How to debug the sensor quickly on site?

Use the one-click teaching function by long-pressing the button for 2 seconds - the sensor will automatically set the optimal detection threshold.

Can it detect transparent objects like plastic film?

Yes, TOF series (E3ZG) can reliably detect transparent and reflective objects without false triggering.

What's the operating temperature range?

Operating range is -40℃ to +55℃, ensuring stable performance in low-temperature freezers and high-temperature workshop environments.

How to solve the problem of short detection distance?

Check for dirty lenses (clean if necessary) or light axis misalignment. Proper alignment will restore standard detection distance.

Does it support IO-Link for data monitoring?

E3ZG and E3S advanced series support IO-Link, enabling real-time monitoring of detection status and equipment data.

What's the service life of the core components?

LED light sources and core components have a lifespan exceeding 100,000 hours, resulting in low failure rates and minimal maintenance requirements.
