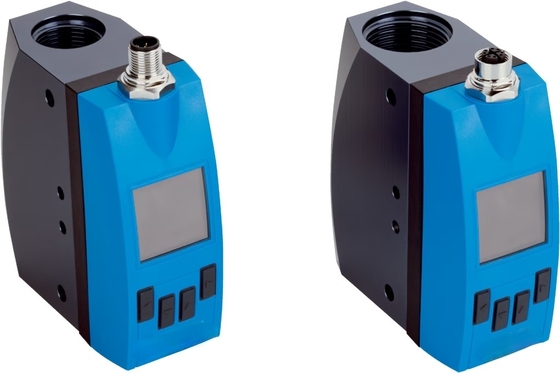

DN15-50 8 Parameters SICK FTMg Flow Sensor Leak Proof Energy Saving

FTMg Flow Sensor with ±3% Accuracy and 8 Parameters for Leak-Proof Gas Flow Measurement in Industrial Applications

The FTMg Flow Sensor covers DN15-DN50 pipe specifications and supports simultaneous measurement of 8 key parameters with ±3% high accuracy. Specially adapted for food & beverage and air compression system applications, it effectively enables leak detection and energy savings to address industrial gas energy loss and inaccurate monitoring challenges.

Performance Advantages

Data Monitoring & Analysis: Built-in data monitoring automatically stores the latest 7 days of measurement data, reliably identifying energy consumption changes and fluctuations. Helps detect leak points in compressed air systems to reduce energy loss and save costs.
Easy Operation: Features a large-size OLED display with plain text and high contrast for intuitive operation. Display rotates in 90° increments for easy reading of measured values. Additional convenience via integrated web server.
Rich Communication Interfaces: Supports IO-Link V1.1, OPC UA, MQTT and other communication protocols, ready for Industry 4.0. Ensures ideal cloud connectivity and enables easy data transmission and system integration.
Flexible Installation: Compact and lightweight structure with multiple mounting options suitable for different pipe sizes. Available nominal diameters include DN15, DN20, DN25, DN40, DN50 and other specifications.

Application Fields

Primarily applied to consumption inspection and leak monitoring of compressed air equipment, energy consumption monitoring of compressed air in supply networks, and flow measurement of inert gases (argon, helium, carbon dioxide, nitrogen) used in modified atmosphere packaging in the food and beverage industry.

Model Specifications & Technical Parameters

Model	Pipe Size	Connection Type	Flow Range (Standard)	Key Parameters	Communication Protocols	Applicable Industries
FTMG-ISD15AXX	DN15	G1/2"	5.3 L/min ~ 1590 L/min	8 parameters; Accuracy ±3%; Process pressure 0-16bar; Temperature -20℃~60℃; Wetted parts: Stainless steel; Response time <0.3s	IO-Link V1.1	Food & Beverage, compressed air system leak monitoring, general industrial gas measurement
FTMG-ESD15AXX	DN15	G1/2"	5.3 L/min ~ 1590 L/min	8 parameters; Accuracy ±3%; Integrated web server; Response time <0.3s	IO-Link V1.1, OPC UA, MQTT	Smart food & beverage factories, Industry 4.0 production lines, compressed air cloud monitoring
FTMG-ISD20AXX	DN20	G3/4"	10.6 L/min ~ 3180 L/min	8 parameters; Accuracy ±3%; 128x128 pixel rotatable OLED display; Response time <0.3s	IO-Link V1.1	Food & Beverage, compressed air systems, pharmaceutical industry inert gas measurement
FTMG-ESD20AXX	DN20	G3/4"	10.6 L/min ~ 3180 L/min	8 parameters; Accuracy ±3%; Integrated web server; 128x128 pixel rotatable OLED display	OPC UA, MQTT, IO-Link V1.1	Industry 4.0 smart factories, compressed air cloud platform monitoring
FTMG-ISD25AXX	DN25	G1"	Standard: 14.7 L/min ~ 2945.2 L/min; Enhanced: 2945.2 L/min ~ 4417.9 L/min	8 parameters; Accuracy ±3% (standard) / ±8% (enhanced); Repeatability ±1.5%; Response time <0.3s	IO-Link V1.1	Food & Beverage, compressed air systems, pharmaceutical industry
FTMG-ESD25AXX	DN25	G1"	Standard: 14.7 L/min ~ 2945.2 L/min; Enhanced: 2945.2 L/min ~ 4417.9 L/min	8 parameters; Accuracy ±3% (standard) / ±8% (enhanced); Integrated web server; Repeatability ±1.5%	OPC UA, MQTT	Smart manufacturing, compressed air energy monitoring, food & beverage mass production
FTMG-ISR40SXX	DN40	R1 1/2"	58.9 L/min ~ 11780.9 L/min	8 parameters; Accuracy ±3%; Auto-saves 7 days historical data; Response time <0.3s	IO-Link V1.1, OPC UA, MQTT	Compressed air systems, large-scale gas supply networks, automotive manufacturing
FTMG-ESR40SXX	DN40	R1 1/2"	58.9 L/min ~ 11780.9 L/min	8 parameters; Accuracy ±3%; Integrated web server; Auto-saves 7 days data; Support POE	OPC UA, MQTT, Integrated Web Server	Industry 4.0 smart factories, compressed air cloud platform monitoring
FTMG-ISN40SXX	DN40	1 1/2" NPT	58.9 L/min ~ 11780.9 L/min	8 parameters; Accuracy ±3%; Auto-saves 7 days historical data; Response time <0.3s	IO-Link V1.1	North American compressed air systems, food & beverage plants, chemical industry
FTMG-ESN40SXX	DN40	1 1/2" NPT	58.9 L/min ~ 11780.9 L/min	8 parameters; Accuracy ±3%; Integrated web server; Auto-saves 7 days data; Support POE	OPC UA, MQTT, Integrated Web Server	North American smart factories, compressed air cloud monitoring
FTMG-ISR50SXX	DN50	R2"	58.9 L/min ~ 11780.9 L/min	8 parameters; Accuracy ±3%; Auto-saves 7 days historical data; Low pressure loss	IO-Link V1.1, OPC UA, MQTT	Large-scale air compressor stations, steel industry, chemical industry
FTMG-ESR50SXX	DN50	R2"	58.9 L/min ~ 11780.9 L/min	8 parameters; Accuracy ±3%; Integrated web server; Auto-saves 7 days data; Low pressure loss; Support POE	OPC UA, MQTT, Integrated Web Server	Industry 4.0 factories, large-scale gas pipelines, food & beverage mass production
FTMG-ISN50SXX	DN50	2" NPT	58.9 L/min ~ 11780.9 L/min	8 parameters; Accuracy ±3%; Auto-saves 7 days historical data; Low pressure loss	IO-Link V1.1	North American air compressor systems, food & beverage plants, pharmaceutical industry
FTMG-ESN50SXX	DN50	2" NPT	58.9 L/min ~ 11780.9 L/min	8 parameters; Accuracy ±3%; Integrated web server; Auto-saves 7 days data; Low pressure loss; Support POE	OPC UA, MQTT, Integrated Web Server	North American smart factories, compressed air cloud platforms, energy management

Technical Notes

Gas Compatibility: All models are suitable for non-corrosive gases, including compressed air (meeting ISO 8573-1:2010 (3:4:4) air quality), argon, helium, carbon dioxide, nitrogen and other common industrial inert gases.

Model Differentiation: "IS" models focus on basic IO-Link communication for traditional industrial scenarios; "ES" models feature Ethernet interfaces supporting OPC UA, MQTT and other Industry 4.0 protocols for cloud data transmission and smart factory integration.

Extended Range: Flow range can be extended with enhanced range accuracy of ±8% of measured value + 1% of range limit value. Specific parameters subject to official SICK datasheet.

Electrical Specifications: Power supply: 17V DC ~ 30V DC; Power consumption: <4.5W at 24V DC without output load; Protection class meets industrial on-site requirements; Switch-on time ≤10s.

Measurement Accuracy: Temperature measurement: ±2℃ (when flow rate ≥10% of standard range); Pressure measurement: ±1.5% of range end value; Repeatability: ±0.2% of pressure range, ±0.5℃ of temperature, ±1.5% of flow measured value.

Frequently Asked Questions

What pipe sizes does the SICK FTMg fit?

DN15, DN20, DN25, DN40, DN50 - universal for common industrial pipes.

How many parameters can it measure at the same time?

8 core parameters, including flow, temperature, pressure and energy (kWh).

Is it suitable for food and beverage factories?

Yes, perfect for inert gas measurement in modified atmosphere packaging of food & beverage industry.

Can it detect air leaks in compression systems?

Yes, it monitors energy consumption in real time to quickly identify leak points and reduce waste.

What's its measurement accuracy?

±3% high accuracy, meeting industrial on-site precise monitoring requirements.

Does it support Industry 4.0 communication protocols?

Yes, supports IO-Link V1.1, OPC UA, MQTT for cloud data transmission.

Is the display easy to read on the industrial site?

Large OLED display, rotatable 90°, provides clear reading even in harsh working conditions.

Can it store historical measurement data?

Yes, automatically saves the latest 7 days of data for energy consumption analysis.

What gases can the FTMg measure?

Compressed air, argon, helium, CO2, nitrogen and other common industrial inert gases.

Is installation complicated for on-site engineers?

No, compact structure with multiple mounting options enables quick and easy installation.
